Product Specifications
Product Description

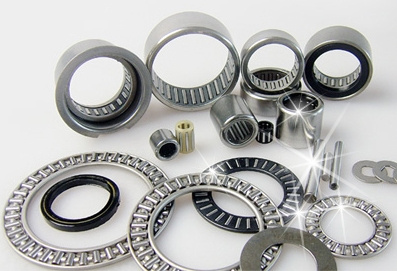

Drawn Cup Needle Roller Bearing
Specification:
Dawn cup needle rollers bearing with pressed outer ring is precisely stamped forming with thin steel plate, space of the structure is small, loading capacity is large. Therefore, they are used under the situation when the installed space is limited and the shell hole is not proper to be treated as the bearing race. Further axial orientation is not necessary after pressing into the bearing seat hole.
Metri series: HK. BK. HKS. F. FY. MF. MFH. MFY
Inch series: SCE. BCE. SCH. BCH. SN. CSN. B. BH. M. MH
Thrust needle roller bearing
Specification:
Bearing(Thrust Needle Roller Bearing):
1. Thrust needle roller and cage assembly Main types:
AXK AXW AX
2. Thrust cylindrical roller and cage assembly Mail types:
K811 K812 K893 K874 K894
Material: Steel plate plastic G2 roller
Features:
1)Radial loadability
2)Seperable bearings
3)Suitability for high speeds
4)Seal at one or both sides
5)High rigidity
6)Low friction
| Bearing No | Characteristics of Structure |
| 1 | Drawn cup needle roller bearing |
| HK | Caged ,with open ends |
| BK | Caged, with closed ends |
| F | Full complement, with open ends |
| FH | Full complement,with open ends (Heavy series) |
| FY | Full complement,grease retained,with open ends |
| MFH | Full complement, with closed ends(Heavy series) |
| MFY | Full complement, grease retained , with open ends |
| SCE | Caged, with open ends |
| BCE | Caged,with closed ends |
| SCH | Caged , with open ends(Heavy series ) |
| BCH | Caged, with closed ends(Heavy Series) |
| J | Caged,with open ends |
| SN | Full complement, grease retained,with open ends |
| CSN | Full complement grease retained,with closed ends |
| B | Full complement,with open ends |
| BH | Full complement,with open ends(Heavy series) |
| M | Full comlement,with closed ends |
| MH | Full complement,with closed ends(Heavy series ) |
| 2 | Thrust needle roller bearing |
| AXK | Thrust needle roller bearing |
| AS,LS,WS | thrust washer |
| NTA | Thrust needle roller bearing(Inch Series) |
| TRA,TRB,TRC,TRD | Thrust washer(Inch series) |
Jiacheng bearing, a professional needle roller bearing and self-lubricating bushing manufacturer in China, is located in Zhejiang province, China. Jiacheng bearing co. Ltd being founded since 1998.
We take ideas, "People being most important" and "Keeping progress and developing", to help people to find out the best technical solutionto any requirement.
Providing a full range of bearings and related items, we have over 10 years' experience in this market, and have built up good relationships with customers around the world.
We obtained GBT/T 19001-2000 idt ISO 9001: 2000
Apart from our existing series, we also offer OEM/ODM services for the development and production of non-standard bearings. Moreover, we can provide technical analysis of clients' samples for later manufacturing. Supported by our R&D and QC staff, who have well-equipped laboratories and testing facilities, we are committed to supplying buyers with qualified products at economical prices.
We sincerely welcome more friends to cooperate with us.
