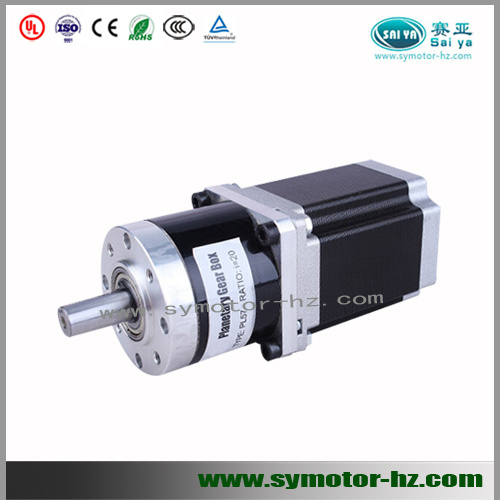

42*42mm Nema 17 Stepper Motor with Gearbox
Product Description
We produce stepper motor from nema 8 to nema 42, and suitable drivers for all these motors.
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.
Technique Parameter
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full step,no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80ºCMax.(rated current,2 phase on) |
Ambient Temperature | -10ºC+50ºC |
Insulation Resistance | 100MΩMin. 500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06Max.(450 g-load) |
Shaft Axial Play | 0.08Max.(450 g-load) |
gearbox for nema 17 stepper motor |
TYPE | gear ratio first grade | gear ratio second grade | gear ratio third grade |
PL42 | 4;5;7;9;10 | 16;20;25;28;35;36;40;45;49;50;63;70;81;90;100 | |
PL42-B | 3.71;5.18 | 14;19;27 | 51;71;100;139 |
The shaft can be customerized.
nema17 stepper motor data:
Type | Phase No. | Step Angle | Current(A) | Resistance(ohm±10%) | Inductance(mH±20%) | Holding Torque(kg.cm) | Wires No. | Weight(kg) | Body Length(mm) |
42HS34-0334 | 2 | 1.8° | 0.33 | 36 | 46 | 2.4 | 4 | 0.24 | 34 |
42HS34-0404 | 2 | 1.8° | 0.4 | 30 | 35 | 3.2 | 4 | 0.24 | 34 |
42HS34-0804 | 2 | 1.8° | 0.8 | 6.5 | 4.6 | 2.3 | 4 | 0.24 | 34 |
42HS34-0954 | 2 | 1.8° | 0.95 | 4 | 3 | 1.8 | 4 | 0.24 | 34 |
42HS34-1004 | 2 | 1.8° | 1 | 2.6 | 3.2 | 1.8 | 4 | 0.24 | 34 |
42HS34-1334 | 2 | 1.8° | 1.33 | 2.1 | 3 | 2.2 | 4 | 0.24 | 34 |
42HS34-1504 | 2 | 1.8° | 1.5 | 1.9 | 2.5 | 2.5 | 4 | 0.24 | 34 |
42HS34-1704 | 2 | 1.8° | 1.7 | 1.3 | 1.8 | 2.5 | 4 | 0.24 | 34 |
42HS34-2004 | 2 | 1.8° | 2 | 0.7 | 1.1 | 2.5 | 4 | 0.24 | 34 |
42HS34-0504 | 2 | 1.8° | 0.5 | 10 | 20 | 3 | 4 | 0.24 | 35 |
42HS40-0404 | 2 | 1.8° | 0.4 | 30 | 60 | 4 | 4 | 0.27 | 40 |
42HS40-0804 | 2 | 1.8° | 1.2 | 6.5 | 12 | 4 | 4 | 0.27 | 40 |
42HS40-1204 | 2 | 1.8° | 1.2 | 5.5 | 11 | 5.2 | 4 | 0.27 | 40 |
42HS40-1304 | 2 | 1.8° | 1.3 | 2.6 | 4.2 | 3.8 | 4 | 0.27 | 40 |
42HS40-1504 | 2 | 1.8° | 1.5 | 2.5 | 5 | 4.5 | 4 | 0.27 | 40 |
42HS40-1704 | 2 | 1.8° | 1.7 | 2 | 3 | 4.2 | 4 | 0.27 | 40 |
42HS44-0804 | 2 | 1.8° | 0.8 | 14 | 33 | 5.2 | 4 | 0.24 | 44 |
42HS44-1004 | 2 | 1.8° | 1 | 4.5 | 6 | 3.8 | 4 | 0.24 | 44 |
42HS44-1504 | 2 | 1.8° | 1.5 | 2 | 3.6 | 4 | 4 | 0.24 | 44 |
42HS44-1704 | 2 | 1.8° | 1.7 | 1.8 | 3.8 | 4.2 | 4 | 0.24 | 44 |
42HS48-0354 | 2 | 1.8° | 0.35 | 56 | 94.6 | 5.5 | 4 | 0.34 | 48 |
42HS48-1004 | 2 | 1.8° | 1 | 4.6 | 4 | 3.5 | 4 | 0.34 | 48 |
42HS48-1204 | 2 | 1.8° | 1.2 | 3.2 | 4.2 | 4.2 | 4 | 0.34 | 48 |
42HS48-1304 | 2 | 1.8° | 1.3 | 3 | 5.5 | 5.2 | 4 | 0.34 | 48 |
42HS48-1504 | 2 | 1.8° | 1.5 | 2.8 | 4.8 | 5.5 | 4 | 0.34 | 48 |
42HS48-1684 | 2 | 1.8° | 1.68 | 1.8 | 2.8 | 4.8 | 4 | 0.34 | 48 |
42HS48-1804 | 2 | 1.8° | 1.8 | 1.5 | 2.6 | 5.2 | 4 | 0.34 | 48 |
42HS48-2504 | 2 | 1.8° | 2.5 | 1.2 | 1.8 | 5.5 | 4 | 0.34 | 48 |
42HS54-1504 | 2 | 1.8° | 1.5 | 3 | 6.5 | 6.8 | 4 | 0.35 | 54 |
42HS60-1004 | 2 | 1.8° | 1 | 24 | 65 | 6 | 4 | 0.5 | 60 |
42HS60-1504 | 2 | 1.8° | 1.5 | 2.5 | 6 | 7 | 4 | 0.5 | 60 |
|
We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.
