Wenling Shellmax Equipment Manufacturing Co., Ltd. >> NEMA & IEC Standard Stainless Steel Motor (B3\B14)

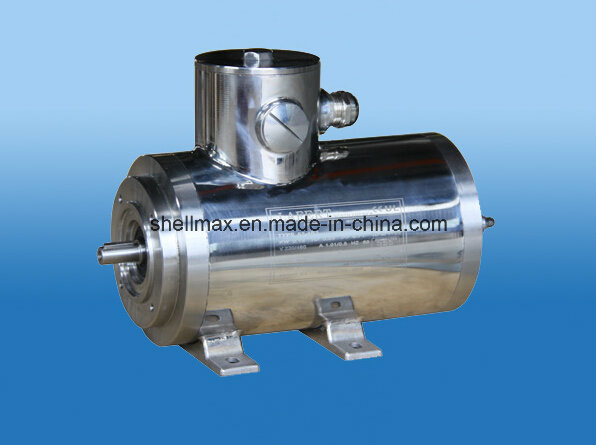

NEMA & IEC Standard Stainless Steel Motor (B3\B14)

$NEMA & IEC Standard Stainless Steel Motor (B3\B14)$

Supplier:	Wenling Shellmax Equipment Manufacturing Co., Ltd.
Price:	US $ 100-20000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	IEC stainless steel motor(B3\B14)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fuel:	Diesel Engine

Product Description

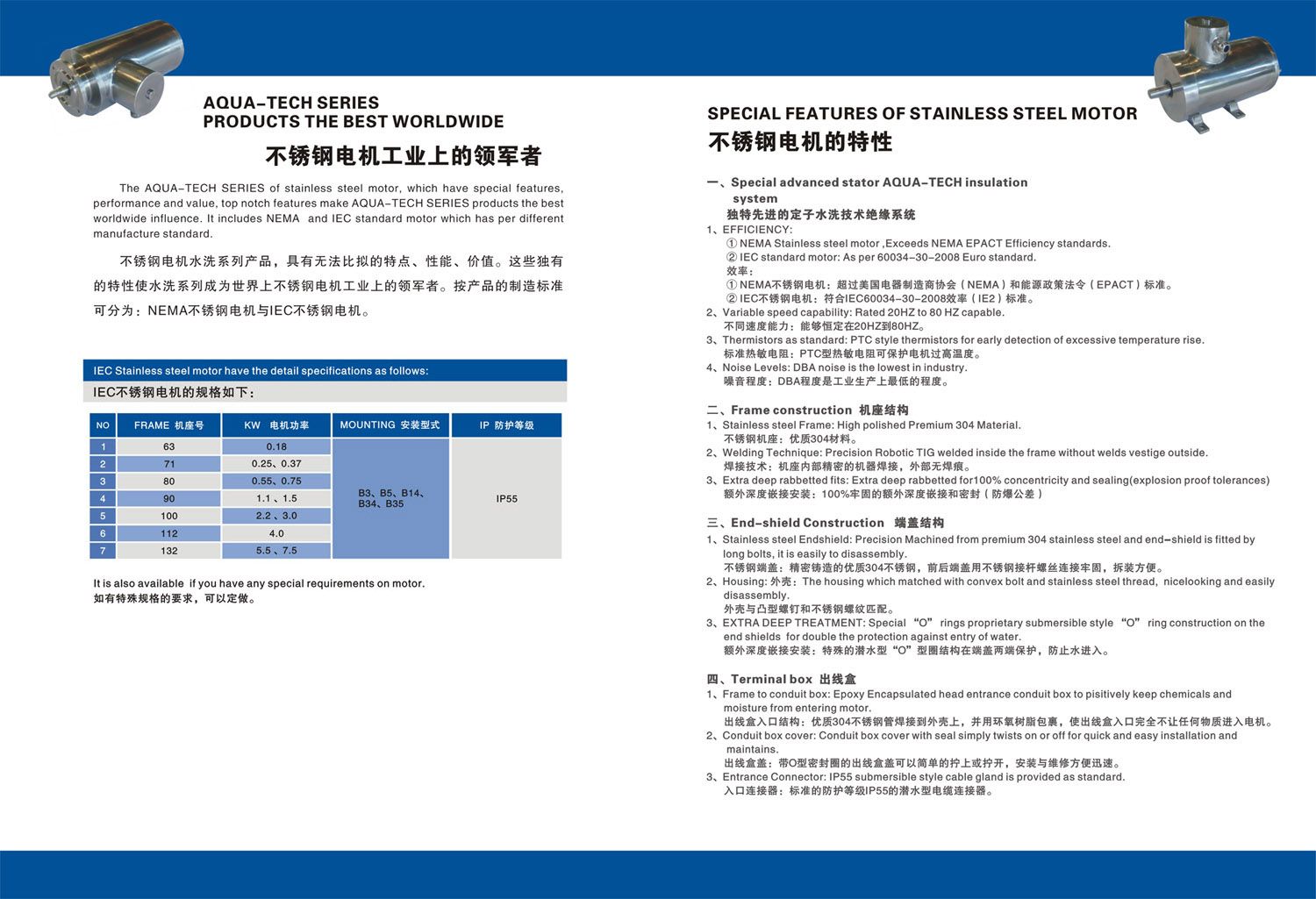

IEC STAINLESSSTEEL MOTOR(B3)

Base number	63	71	80	90	100	112	132
Power(kw)	0.18	0.25,0.37	0.55,0.75	1.1,1.5	2.2,3	4	5.5,7.5
Installation	B3,B5,B14,B35,B5T

TEFC/TENV IEC stainless steel electrical motors

Description:

IEC stainless steel electrical motors

IEC Stainless Steel AC Motor. Washdown Duty NEMA Motor,

IEC Series Stainless Steel Washdown Duty Motor are desgned and manufactured according to IEC Standard, All external surfaces stainless steel. Frame from 80-132M. 0.18KW-15KW

Appreciations: Food Processing, Packaging, Outdoor and highly corrosive environments.

Features: All external surfaces 300 Series Stainless steel motor frame, Endplates, Conduit box, Shaft and base, Four condensate drains in each endplate, Conduit box gasketed lip seals. Especially effctive in highly corrosive environments where paint or other finishes do not hold up.

Working Conditions: The motors are designed and manufactured according to NEMA standard, All externall surfaces stainless steel, Ideal for use on driving food processing, Packaging, Out door and highly corrosive environments.

Motor Frame:IEC TEFC/TENV

Frame 80-132M

Output(HP):0.18KW-15KW

Rated Voltage(V):208v-230v/460V, 460V/575V

Frequency(HZ): 50HZ

Raged Speed(rpm):1200r/min 6-pole. 1800r/min 4-pole. 3600r/min 2-pole.

Insulation Class: CLASS F

Protection Class: IP65, IP66

Methods of Cooling: IC411

IEC Stainless steel Motor, NEMA Washdown Duty motor,Stainless Steel Motor, stainless steel electrical motors

Quality. Honesty. Responsibility Since 2001

Everyone at Shellmax follows this mission every day: Customer satisfaction through quality products, continuous improvement, and a safe operation that's always up and running.

"Shellmax" is specialized in all kind of Welding Machines, Garage Equipments, Electric Motors, Generators, Consumables and Spare parts and more products. All of "Shellmax" products comply with ISO9002, TUV/GS, CE, UL, CCE ATEX standards. "Shellmax" can manufacture & supply the goods according the customers request around the world.

In order to keep the competitiveness, "Shellmax" research team are always paying close attention to the market change, and accordingly develop the correspondent new items; Management team are carrying out strict quality control through the whole process during production; Logistics team are actively cooperating with shipping agency to help customers shorten the transportation period and save the shipping cost.

In order to gratify customers' requirements, "Shellmax" have established a strict quality control system. Comprehensive measures are implemented from initial material inspection to final checking before packing, warehousing and delivery

"Shellmax" is located at Taizhou City, Zhejiang Province, China. With very convenient transportation, about 160km far from NINGBO and about 400km far from Shanghai sea port, and it is only about 20 min far from HUANGYAN airport.

"SHELLMAX" company insists on equality and mutual benefit, honesty and credit it what we live on, we are honor to set up long term cooperation with all our clients around the world.
