Product Specifications
| Prod Model: |
lan cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Conductors: |
8 |
| Insulation Material: |
PVC |
| Conductor Type: |
Stranded |
| Conductor Material: |
Aluminum Clad Steel |
| Application: |
Heating |
| Type: |
Insulated |
| Certification: |
ISO CCC RoHS |
Product Description
Specifications
1. ANSI/TIA-568-C. 2 11801 for Categories 5E and 6.
2. U/UTP, U/FTP & U/STP available.
3. UL CMX, CM, CMR.

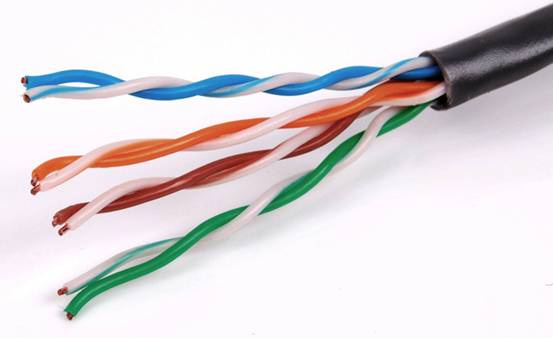

CAT5e Part-NO: G5e-4/24-U
CAT5e 4Px24AWG UTP (Standard)
Packing: 305 M / Easy Pull Box
Packing Size: L: 35cm × W: 35cm × H: 21cm
Weight: 10.49 Kg
Memo: 4Px24AWG BC Conductor+0.91mm PE Insulation+5.1mm PVC Jacket
CAT6 Part-NO: G6-4/23-U
CAT6 4Px23AWG UTP (Standard)
Packing: 305 M / Easy Pull Box
Packing Size: L: 39cm × W: 39cm × H: 23cm
Weight: 13.78 Kg
Memo: 4Px23AWG BC Conductor+1.02mm PE Insulation+6.1mm PVC Jacket
Descriptions:
StandardApplication
ISO/IEC 11801-2ED10/100BASE(TIEEE 802.3)
ANSI TIA/EIA 568-B. 2ATM, TP-PMD, ANSI X39T. 5(TP), LSDN, TP-DDI
EN 50173ETHERNET, 1000BASE-T
EN-50288-3-1GIGABIT-ETHERNET
ULToken Ring(IEEE802.5)
3) Electrical Specifications
Dielectric strength2.5KV DC-2seconds
Conductor resistanceMax 9.38ohm/100M at 20° C
Max. Ring resistance16.8 ohm/100M at 20° C
Max. Mutual capacitance560 pf/100M
Max. Capacity unbalance330 pf/100M
Standard impedance100± 15 ohm between 1MHz and 100MHz
Minimum bending radius60mm
Working temperatures-20~60° C
DTX1800 Fluke Link test100% pass 90meters Link test
Network Analyzer100% pass 305meters network analyzer test
We are factory specialized in Network cable(Cat5e/CAT6), Coaixal cable, Speaker cable, Alarm cable, Electric wire, LV Power cable, Control cable, Rubber cable, Welding cable and other related cable products with almost 20 years of experience. Our daily production amounts to 600, 000m.
All of our products are CCC, ISO, CE, RoHS aprroved.
We are looking for long-term cooperation partners around the world.
