Hubei Maihui Technology Co., Ltd. >> New 1.3t Eletric Stacker Pallet Truck with CE

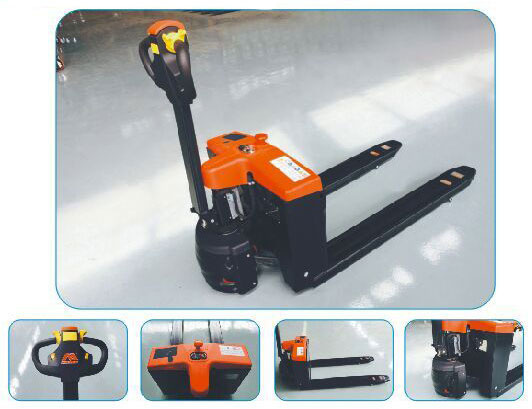

New 1.3t Eletric Stacker Pallet Truck with CE

Name: New 1.3t Eletric Stacker Pallet Truck with CE
Brand: china-manufacturer-directory.com
SKU: 772118345
Availability: InStock
Rating: 5 (105 reviews)

Supplier:	Hubei Maihui Technology Co., Ltd.
Price:	US $ 1260Piece
Min Order:	1Piece
Quantity::
Trade Terms:	FOB,CFR

Product Specifications

Prod Model:	CDB13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Powered Pallet Truck
Power:	DC Motor
Load Capacity:	1T - 5T

Product Description

Handle: exclusively used and developed by MAIHUI, maneuverable and precise
Controller: imported Curtis from the US, highly frequent and efficient, stepless speed regulation
Drive: imported from TAIWAN, powerful, energy efficient and durable
Lift: brushless permanent magnet motor for heavy load, fast and safe
Forks: unibody design of low alloy steel with lowered fork height of 82mm, adequate for most pallets
Battery: maintenance-free camel battery, economical and efficient
Tires: wear-resisting and mute PU tires
Besides, all running parts are equipped with self-lubricating bearings to ensure flexible operation. Intelligent device ensure safe and stable driving and steering

Model	Unit	CBD13
Capacity	kg	1300
Operation method		electric drive, electric lift
Overall length	mm	1708
Overall width	mm	680
Overall height	mm	1220
lifting height	mm	115
Fork dimensions	s/e/lmm	58/150/1220
fork spread	mm	685
Aisle width for pallets 1000*1200 crossways	mm	2009
Aisle width for pallets 800*1200 crossways	mm	1809
Lowered fork height	mm	85
turning radius	mm	1555
Wheel type		PU
Driven wheel size		220*70
Load wheel size		28068
Drive speed, laden/unlade	Km/h	3.5/4
Lift speed, laden/unlade	m/s	0.035/0.048
Gradient performance,	%	2/6
Service brake		electromagnetic
Drive motor power	kw	0.5
Lift motor power	kw	0.8
Battery voltage/tated capacity (5h)	V/Ah	2*12/65(85)
Battery weight	kg	29
Battery compartment dimensions l/w/h	mm	305/171/225
Battery type		Maintenance free battery
Type of drive control		DC
Control system		CURTIS
Sound level at driver's ear	dB(A)	74

Hubei Maihui Technology Co., Ltd(formerly known as Hubei Goldmill Machinery Technology Co., Ltd. )founded in 1956, is China's first professional manufacturer of small and medium hydraulic lifting, handling, loading and unloading, lifting operations vehicles, and is also an executive member of China Construction Machinery Industry Association.

The company's famous brands Goldmill& Maihui include 8 series and more than 130 kinds of products from hydraulic lift, manual, electric hydraulic pallet trucks, stackers, hand drum trucks to scissor lifts, which are ideal cargo handling vehicles for factories, workshops, supermarkets, warehouses, docks, construction sites, film crew, stage performing, etc. With an annual production capacity of 300, 000 sets, our products are exported to more than 80 countries and regions including Europe, America and Southeast Asia. We have 108 after-sales service centers in domestic cities and are highly reputed for our quality and services.
