Product Specifications
| Prod Model: |
CH-Q5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
3W |
| Wavelength And Frequency: |
Middle-wave |
| Application: |
Industrial |
| Style: |
Scattered Wave |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
Without Screen |
Product Description

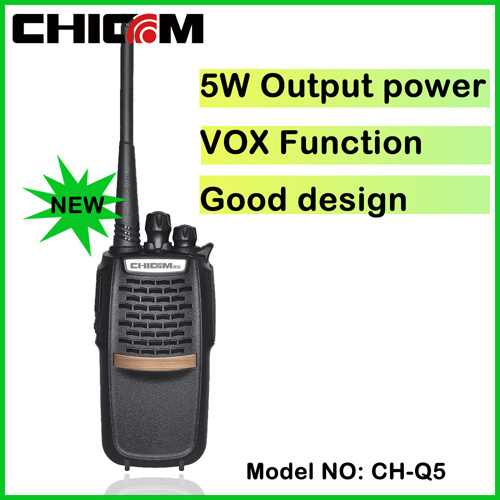

CHICOM CH-Q5 UHF Two way radio 5W
Main Features
Frequency: 400-520MHz
Quiet talk(QT) and digital quiet talk(DQT)
Output power: 5W
CTCSS DQT
16 channels
VOX function
Voice prompt
Automatic battery saving function
Multi scan function
Technical Specification
Model CH-Q5 5W UHF Portable radio
Specifications:
Rated voltage: 7.4V DC
Channel spacing: 5/10/12.5/25KHz
Frequency sensitivity: ± 5PPm
Antenna impedance: 50Ω
Dimensions: 107*56*37(except antenna) Transmitter:
Current: ≤ 1.6A/1A
Modulation sensitivity: 12mV (frequency offset: 2.2 to 3.6KHz)
Modulation deviation: ≤ 5%
Modulation frequency deviation: ≤ 5KHz
CTCSS frequency deviation: 0.75KHz ± 50Hz
Remnant radiation: ≤ 7μW
Modulation mode: 16K F3E
Remnant modulation: ≤ -35dB Receiver:
RF sensitivity: ≤ 0.25μV
Silent sensitivity: ≤ 0.25μV
Audio frequency power: 500mW
Audio distortion: ≤ 10%
Modulation receiver bandwidth: ≥ 2 x 5KHz
Spurious rejection: ≥ 55dB
Selectivity: ≥ 65dB
Intermediation: ≥ 60dB
Blocking: ≥ 85dB
Established in 1998, Quanzhou Nanan Chicom Electronic specializes in the production and sale of two-way radios and related accessories such as microphones, batteries and chargers. Our products are widely used in construction sites, supermarkets, hotels, public safety, and warehousing and logistics industries.
Our production base covers over 3, 000 square meters and is equipped with advanced production and testing instruments. Monthly production capacity is 20, 000 pieces, with 20 percent for export to Europe, the US, the Middle East, Africa and Southeast Asia. In addition, we are strictly organized according to ISO 9001: 2008 and CE standards to ensure product reliability and stability.
