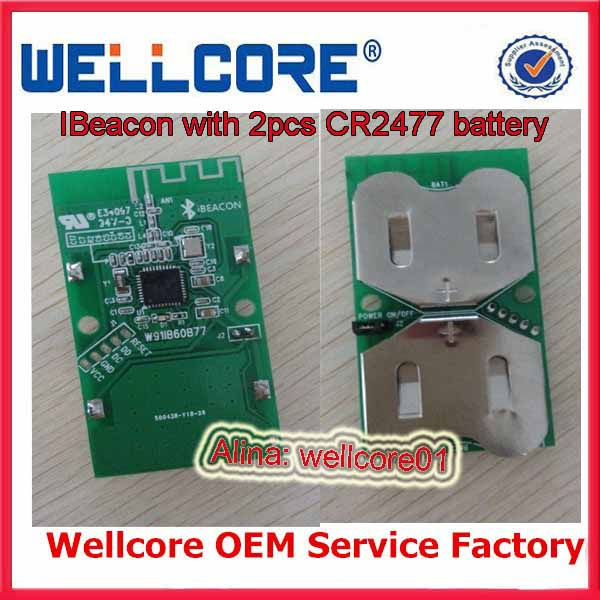

Wellcore iBeacon Mini iBeacon BLE 4.0 iBeacon With 2PCS Cr2477 Battery
What is IBeacon?
IBeacon is small Bluetooth Low Energy devices that transmit a unique signal to native mobile apps. Native mobile apps can then pick up this signal when a user is nearby and then deliversome content or action on their smartphone. The Mall Maverick platform has more shoppingcenter apps on the APP stores than any other platform on the market.
About our IBeacon Modules:
Development and production including firmware and hardware all by Wellcore Technologie
For the Apple certified iBeacon firmware supports CC2540 and CC2541 4.0 modules
Built-in pairing password to prevent others to modify the settings
UUID, Major, Minor values can be changed and modified by customer own
The name of iBeacon that shows on iOS device can be customized
Built-in JTAG port for customized other application firmware
Standard plastic case for iBeacon module is available
The plastic case can be printed customer's logo if required
For iOS7.0 and Android 4.3 above version
Self reboot function
With power switch to save power consumption
CE/FCC/BQB EPL Approvals
How to Change and Settings of our IBeacon Modules?
Name of iBeacon: BlueBeacon
UUID: E2C56DB5-DFFB-48D2-B060-D0F5A71096E0
Major and Minor: 0, 0 (Only allowed numeric)
Transmission power: -59 (for Location using)
Pairing passowrd: MINEW
The original password: 140611
IBeacon Manual Please Contact Us
LightBlue for user ( Please download software on the apple store. )
Product Description
What Descriptions of our IBeacon Modules?
Built-in iBeacon firmware
Built-in 2PCS CR2477 battery
Bluetooth low energy technology compatible
Excellent link budget (up to 97dB)
Enable long range applications
Accurate digital RSSI
Apple&MFI Certified and compatible with CE and FCC regulation
High performance and low power 8051 core MCU
AES security coprocessor
Why Choose US?
1. We are China Leading ibeacon devices Manufacturer.
2. Own a big factory and quality control apartment.
3. Alibaba Assessed 3 years Gold Supplier.
4. All products are CE FCC RoHS certificated.
5.100% QC inspection Before Shipment.
6. Best Quality & Best Service with Competitive price.
7. Custom-made, small order and OEM is available.
How to Contact us?
Shenzhen Wellcore Technology Co., Ltd
Address: No. 11, Longshan Industrial Zone, Nanling, Buji Town, Longgang District, Shenzhen, China
Send your Inquiry Details in the Below, Click "Send" Now! ---Alina!
|
Item |
Value |
Remarks |
|
Firmware |
iBeacon |
Version 1.3.1 |
|
Battery model |
CR2477 battery |
Coin battery, 3.0Vdc, 2 pcs |
|
Operation Frequency |
2400-2483.5MHz |
Programmable |
|
Frequency Error |
+/- 20KHz |
|
|
Modulation |
Q-QPSK |
|
|
Standby current |
100uA |
Depends on duty cycle/broadcasting frequency |
|
Broadcasting Frequency |
900mS |
Duty cycle |
|
Output Power |
0 dBm |
Default setting, programmable |
|
Receiving Sensitivity |
-93dBm |
High gain mode |
|
Transmission distance |
<100 meters |
BER<0.1%, Open space |
|
Antenna |
50ohm |
On board/ PCB Antenna |
|
Size |
60mm*35mm*25mm |
|
|
Operation Voltage |
2.0-3.6V |
DC |
Founded in 2006, Wellcore Technology is a high-tech Electronic Products such as Ipush manufacture which has the ability of R&D and manufactory in China. Wellcore is specialized in Industrial Level and Commercial Level Ipush. Its biggest strength is based on our quality and professional in ibeacon, scooter headsets Field and customers' Application these years. And we have full experience to help and support customers from different Industrial and Commercial market.
Wellcore understands that professionalism and innovation, as well as the value of its products and services, drive a company' S competitiveness in the market. Wellcore' S devotion to quality requires performing at the highest standards as they relate to ID design, purchasing and supply-chain management (raw materials), manufacturing processes, quality control and testing.
