Product Specifications
| Prod Model: |
WL-JT-120G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| GSM Frequency: |
850/900/1800/1900MHz |
| Warranty: |
3 Years |
| Back-up Battery: |
Ni-Hi AAA*6 DC7.2V |
| Name: |
Alarm Wireless System |
| Wireless Zone: |
120 Zones |
| Type: |
Anti-Theft Alarm |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Certification: |
RoHS |
| Application: |
Indoor |
| Sensor Type: |
Infrared Alarm System |
| Working Principle: |
Electro-Optical Type |
| Transmission Mode: |
Wireless |
| Alarm Volume (',within 1m): |
≥100dB |
| Receive Frequency: |
315MHz |
| Usage: |
Auto |
Product Description

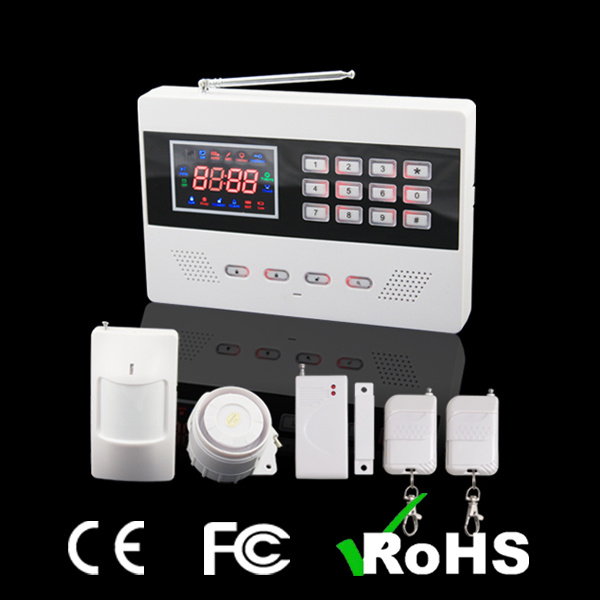

New Colorful Screen-120 zones android IOS GSM APP Supported GSM Alarm System
Digital clock display with two groups alarm functions
Supports GSM mobile network with bill checking and calling functions
Allow up to 120 wireless defense
zones and 2 wired zones, Each can be defined as one of the 8 zone
4 sets of scheduled disarmed
Function, realize intelligent full automatic control
Long-distance telephone control for arming, disarming, monitoring
Relay linkage output for appliance remote control function
GSM industrial graded module, stable and reliable.
Support APP & Android operation.
System Features:
l Digital clock display with two groups alarm function, time optional.
l Support GSM mobile network, provide redundancy for extra stability.
l Allow up to 120 wireless defense zones and 2 wired zones.
lEach can be defined as one of the 8 zone types including NORMAL, STAY, INTELLIGENT, EMERGENCY, CLOSED, HELP SENIOR, WELCOME and CHIME.
lFour sets of scheduled arm/disarmed function, each time you can select the included period of time and different defense zone, eliminating of need of the manual procedure, realizing the beauty of automatic controls.
l Support configuration via keyboard , phone ( handset ) or SMS messages to System
l6 group voice alarm phone number for alert calling, 3 group phone number for help senior, 6 group for SMS messaging, numbers saved inside EEPROM without lost upon power failure.
l Different zones can dial a pre-set telephone number.
l Support ISD automatic voice mailbox for playback message upon alert. Maximum length of voice message is 10 seconds.
l Telephone (phone) long-distance telephone control for arming, disarming, monitoring, remote announcement.
l 1 Set of normally open signal outputs, relay linkage output, home appliances remote control can be realized.
l Wireless intelligent study coding, compatible with PT2262 normal encoding and a 1527 encoding, convenient and flexible for adding or reducing accessories. Maximum support 150 remote control and 150 sensors.
lUnique black box features, you can display most recent 72 disarmed records and 102 recent alarm recording. Accurately shows the alarm time and control code.
l Built-in Ni Hi rechargeable battery and automatically switchable upon power failure, and notification will be sent via SMS.
l Panel integrated with quad-band GSM/GPRS industrial graded module, stable and reliable.
Technical Parameters
Input Voltage |
|
DC12V/1A |
Standby Current |
|
<55mA |
Alarming Current |
|
<450mA |
Wireless Frequency |
|
433MHz, 2262/4.7MΩ |
GSM Frequency |
|
900/ 1800/ 1900MHz |
Back-up Battery |
|
NI-HI AAA*6 DC7.2V |
Siren Volume |
|
110dB
|
