New Design Direct Reading Spectrometer for Metal, Stainless, Iron Non-Ferrous Detection
Product Specifications
| Prod Model: |
TY-9000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Detector: |
Advanced CCD Detector |
| Technological Level: |
International Standard |
| Analytical Method: |
Full Digital and Spectrum Direct Reading |
| CCD Pixel Resolution: |
6pm |
| Grating Lines: |
3000term/mm |
| Light Source Type: |
All New Adjustable Digital Light Source and Heps |
| Excitation Frequency: |
100-1000Hz |
| Vacuum System: |
Automatic Control and Monitoring Vacuum Software |
Product Description
1. Company informationAs a modern enterprise engaged in the R&D, manufacture and marketing of analyzing instruments, Wuxi Jinyibo Instrument Technology Co., Ltd. Possesses proprietary intellectual property and brings together lots of high-tech talents and experts to work on the development and application of material testing. Our company is specialized in manufacturing instruments like photoelectric direct reading spectrometers, plasma emission spectrometers, infrared carbon and sulfur analyzers, a series of wet-process analyzers, etc., which offer analysis of several elements including carbon, sulfur, silicon, manganese, phosphorus, nickel, chromium, copper, molybdenum, iron, titanium, rare earth, magnesium, etc. In particular, the photoelectric direct reading spectrometers and high-frequency infrared carbon and sulfur analyzers are in the leading position in China. Our products are widely applied to steel industry, metallurgy, foundry, machinery, construction, institutions, petrochemical engineering, quality supervision, the inspection of import and export commodity, etc.
2. Product Description

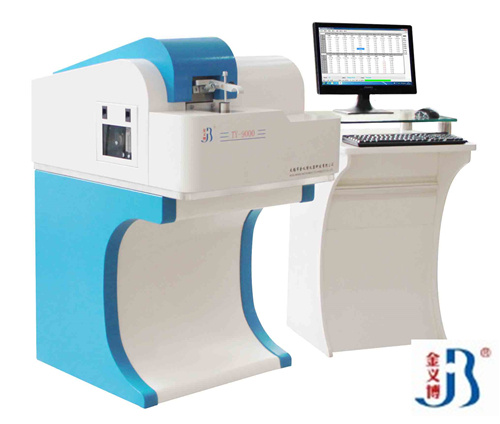

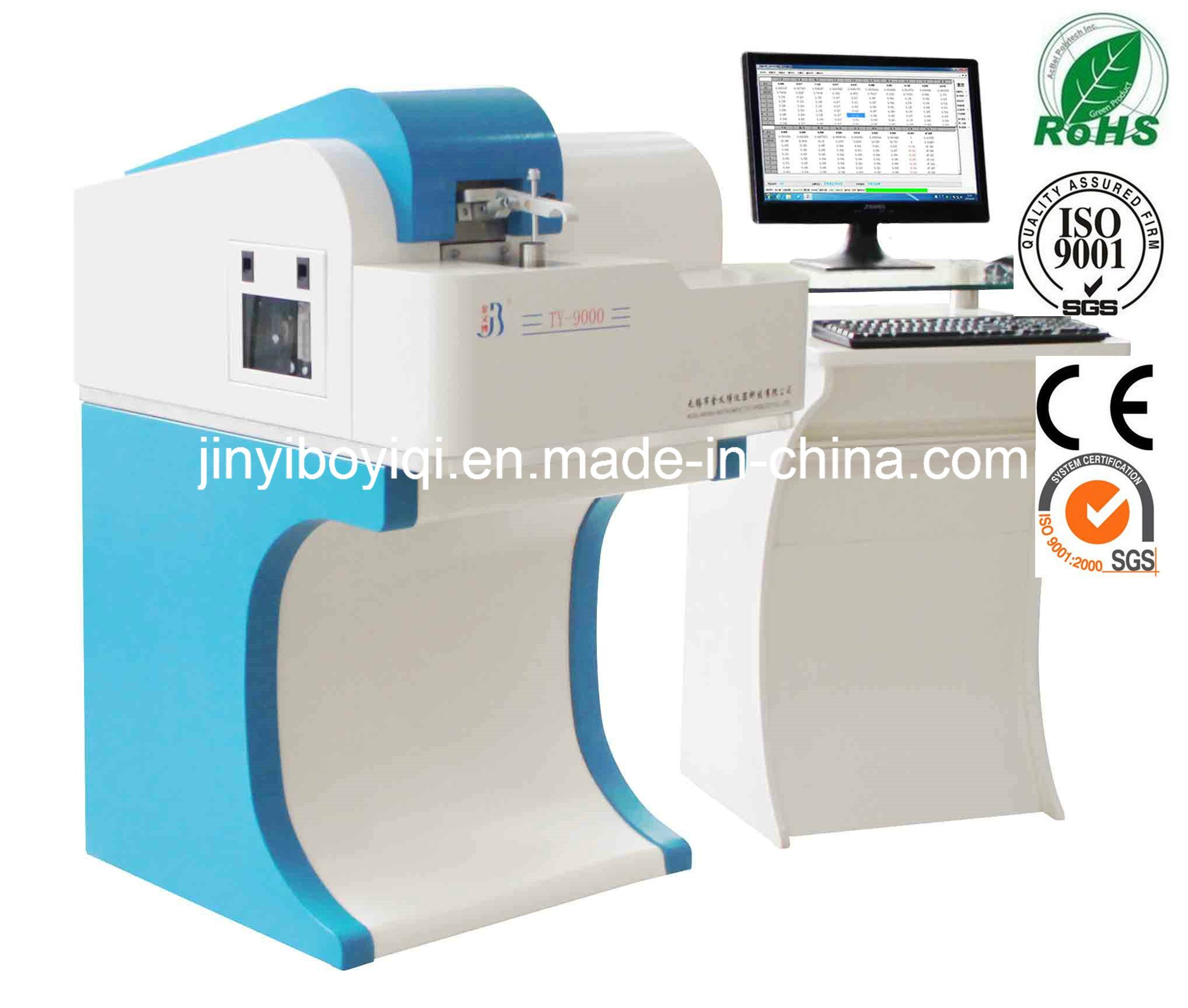

TY-9000 Full Direct Reading Spectrometer, which adopts the international standards of design and manufacturing technology, follows the steps of international spectrum technology and apllies the new all digital technology instead of PMT simulation technology. In addition, in order to make this apparatus' best capability, long term stability and repeability, and the lowest sense lines. The design of vacuum optics room and the technology of all digital excitation light source, advanced CCD detector, high-speed data reading system are applied. This machine is available in metal manufacture and processing industries. It's also one of the main testing machine in metal metallurgy. Such as quality monitoring, material grade identification, material research and expoding.
3. Main FeaturesOptimized vacuum optics system
(1).Integrated optics room and Paschen Runge contruction design, making all the spectrum lines focused on the gratings.
(2).Direct-jet type optics technology and MgF2 material lens to make sure ultraviolet wave's best energy of elements, such as C,S,P and N.
All digital excited light source
Adopting all digital and HEPS technology to improve the measuring precision and similarity of sample, which the excetation parameter is setted variously. The samples can show its recurrence by high speed excitation and stable spark.
Functional design excitation equipment
(1).Integrated gas lines, Jet type electrode technology and opened copper spark platform not only can insure the samples' measuring precision but also cater to different shapes' samples.(Including wire materials)
(2).Single plate lens equipment design is easy to user for washing and maintaining the excitation platform and lens.
Highly integrated and direct reading system
(1).Using the 3648 pixels high performance CCD solid testing technology, the spectrum lines in the wave range can received wholly.
(2).FPGA and high speed data corresponding technology make the data reading function powerfully and progress more quickly.
Visual and easy-operate analysis software
(1).The multi-language CCD full spectrum analysis software, which based on the WINDOWS system, provides powerful data processing ability and testing report output capacity for users under the whole management and controlment of the measuring process.
(2).The apparatus equips many factory calibration curves and many materials to the more advanced solution methods.
(3).The apparatus realizes the full spectrum analysis of intelligent jammer, dark current, the algorithm of appearing and disappearing faces, highly improving the analysis ability of testing machine.
4.Main technical parameter
| Detect matrix | Fe,Cu,Al,Ni,Co,Zn,Sn,Mg,Pb ect |
| Optics structure | The Paschen Runge construction full vacuum type optics system |
Wave length range | 130-800nm(Available in analyzing N element) |
| Focal length | 400mm |
| Grating lines | 3000term/mm |
| Detector | High performance CCD array, per CCD resolution is 3648 pixels |
| CCD pixel resolution | 6pm |
| Electrode | Tungsten material jet electrod |
| Analysis gap | Sample platform analysis gap:3.4mm |
| Light source type | All new adjustable digital light source and HEPS |
| Excitation frequency | 100-1000Hz |
| Max discharge current | 400A |
| Vacuum system | Automatic control and monitoring vacuum software |
WUXI JINYIBO INSTRUMENT TECHNOLOGY Co., Ltd

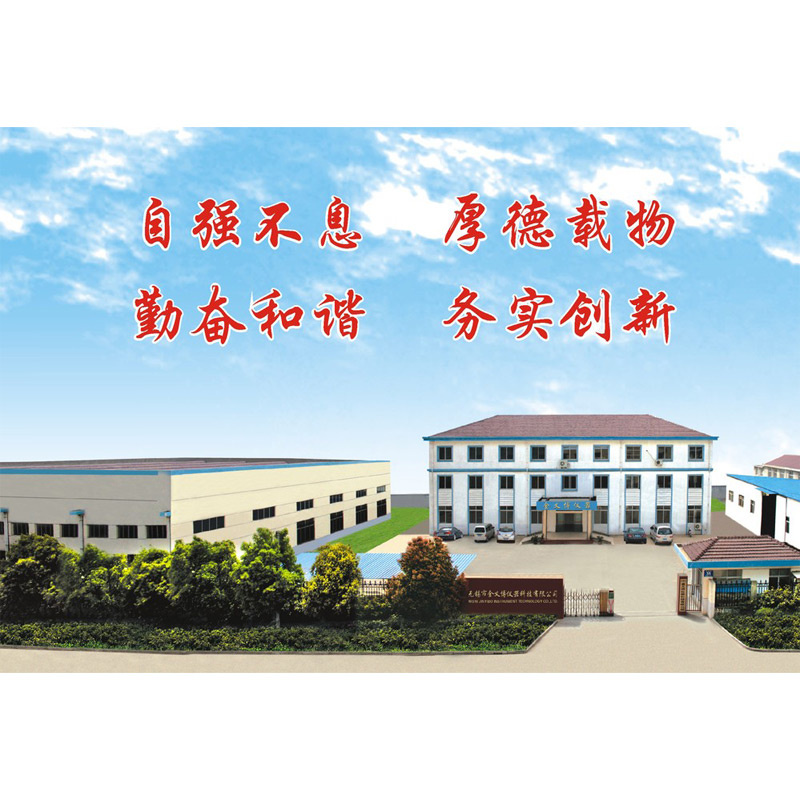

Company Profile
