New Design High Speed Small Copy Paper, Printing Paper Machinery for Recycle Paper, Exercise Notebooks Making Machine Line

New Design High Speed Small Copy Paper, Printing Paper Machinery for Recycle Paper, Exercise Notebooks Making Machine Line
Supplier: Zhengzhou Guangmao Machinery Manufacturing Co., Ltd.
Price: US $ 280000/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CFR
contact supplier

Product Specifications

Prod Model: 1575mm
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Place Of Origin: Henan, China (Mainland)
Brand Name: Guangmao
Dimension(L*W*H): 10.5m*2.8m*2.3m
Working Speed: 170-190m/Min
Capacity: 5 Tons Per Day
Output Weight: 13-20G/M2
Wire Width: 2350mm
Power(W): 280kw
Design Speed: 210m/Min
Type: Cultural Paper
Sheet Former Type: Fourdrinier Wire
Paper Thickness: Normal Specification Paper
Condition: New
Certification: ISO

Product Description

About  paper-making

This production line can use waster paper,recycled paper ,tree ,bamboo ,reed ,wheat straw cotton and bagasse as raw material to make good quality craft paper,finished product can be paper roll, tissue paper, toilet paper, culture paper , Kraft  paper, newspaper etc.   ;
the main work flow is as follows:
1 pulp making production line
2 glue adding system
3 paper making production line
4 paper converting section
5 boiler section

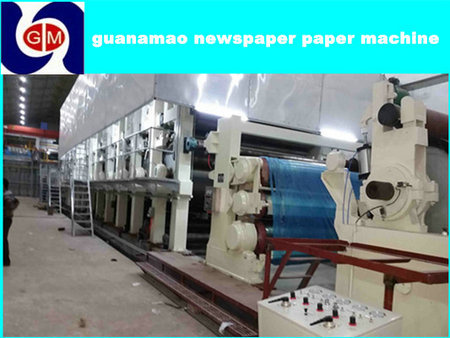

1575mm high speed good quality newspaper machine ,newsprinting
paper machine

I.Brief introduction :

1575mm newspaper machine can make high quality news printing paper ,writing paper ,copy paper ,following is main technical specification :

1.Raw material : waste paper ,sugarcane bagasse ,wheat straw ,wood chips ;

2.capacity : 2-100ton/day ;

3.width : 900mm,1200mm,1600mm,2100mm,2400mm,3200mm,3600mm ;

4.finished product : paper roll , paper sheet ;

III.Main technical description of paper machine :

1.Fourdrinier section :

The length of fourdrinier part is 8.5m, forming board,  scrape water board, stainless steel solder, faceplate box, macromolecule anti-grinding faceplate. Suction box: is made of stainless steel solder, faceplate box, macromolecule anti-grinding faceplate.  Table roller: Seamless steel board is covered with rubber,
Frame: square frame is made of steel.

2.main press section:

Two sets of press section ,500mm x 1950mm x 2400mm  granite roll 2 pc,450mm x 1950mm x 2400mm   rubber roll 2pcs,material :cast iron ,coated by rubber ;

3.Felt press section :

450mm x 1950mm x 2400mm rubber roll 2pcs,material :cast iron ,coated by rubber ;

4.vacuum press section :

650mm x 1950mm x 2400mm vacuum press roll 1 set,material : stainless steel ;

5.Dryer part:

1500mm x 1950mm x 2400mm alloy dryer cylinder 6pcs, it is equipped with upper and bottom dry mesh device.

6. calendar section :

1575 mm three roll calendar 1 set ;

7.paper reeling section :

1575 mm reeling machine 1 set ,diameter of reeling cylinder is 900mm ;

8.1575mm rwinding & slitting machine 1 set ;

9.2 ton boiler (diesel fired) 1set ;

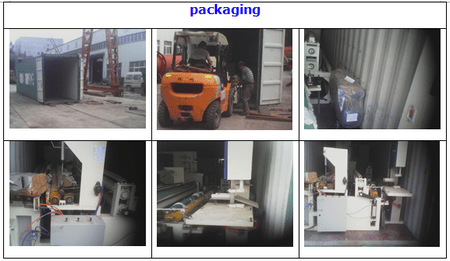

packing and shipping

packaging: products will packaged according to their shapes, weight, transport distance and transport modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.

transportation: products will be transported according to their features and clients's needs. air, train and sea transportation are all available.

Perfect service :
1.we can supply technical consulting and feasibility report according to client's current condition ;

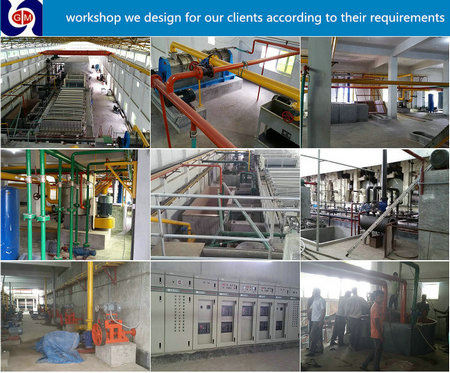

2. We can make detail design of workshop and whole factory ;
3.we supply complete installation and test machine ;
4.we train client's engineer and worker for free ;
5.we supply spare part with best price ;



company information :

1.Following is main introduction of our company :
(1) total area of factory : 20,000m
(2) total qty of workshop : 4 ;
(3) workers : 110 workers ;
(4)engineer qty : 25 engineers ;
2.Why you choose us ?
(1) professional engineer team with 30years experience ;
(2) we can supply you turn -key solution without any trouble ;
(3) we have strict quality control system and ensure there is no unqualifiedly product ;
(4) professional installation technician and clear technical training for your workers ;
(5) strict recalling system : if any problem of machine ,we will recall it and change a new one for free ;

Remarks :
1.please check and clear all necessary technical data ,then we can make exact quotation
 for you ;

2.payment term : T/T , L/C ;
3.Delivery time :within 40 days after first payment ;
4.we can make special design according to client's requirement and need ;
5.we can accept turn-key project ;


If you interest our product ,please send us a inquiry for having  a better understanding about paper-making

if you scan the whole pag ,but you don't get the information you want to know,you can also contactus to tell uswhat you want to learn aboout paper machine when you browse web pag though the above ways.only in thisway can we both have  a further understanding about paper machine,and we can provide you customers  a detailed and comprehensive understanding about paper making in the near future,we will treat your advice seriously.

Zhengzhou guang mao machinery manufacturing Co., Ltd. is located in zhengzhou city, China. We are a leading and professional paper machine manufacturer in China.

We specialize in the manufacture of paper machines, paper processing machines and paper machine parts.

Our company has perfect service system. We have experienced engineer teams, who can supply perfect service during the whole deal, including technology consultation, civil work design, project evaluation; Installation and testing the whole production line; Training engineers and workers; Meanwhile, we also supply spare parts for long time and manufacture machines in accordance with customers' special requirements.

1. Following is main introduction of our company:

(1) total area of factory: 20, 000m2;

(2) total qty of workshop: 4;

(3) workers: 110 workers;

(4)engineer qty: 25 engineers;

2. Why you choose us?

(1) professional engineer team with 30years experience;

(2) we can supply you turn -key solution without any trouble;

(3) we have strict quality control system and ensure there is no unqualifiedly product;

(4) professional installation technician and clear technical training for your workers;

(5) strict recalling system: If any problem of machine, we will recall it and change a new one for free;

3. About shipment:

1. Sea transportation and rail way transportation is our main shipment way.

2 the delivery time is decided by your the machine model, we can also adjust delivery time according to your special requirement;

We hope to establish friendship and business relationship with friends from all over the world.
