New Economic Front Paper Loading POS Thermal Printer
Product Specifications
| Prod Model: |
SK T260M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM&ODM Service: |
Yes |
| Certification: |
FCC |
| Printer: |
Thermal |
| Touch Screen: |
Without Touch Screen |
| CPU: |
Intel |
| System: |
Windows/Linux |
| Type: |
Receipt Printer |
Product Description

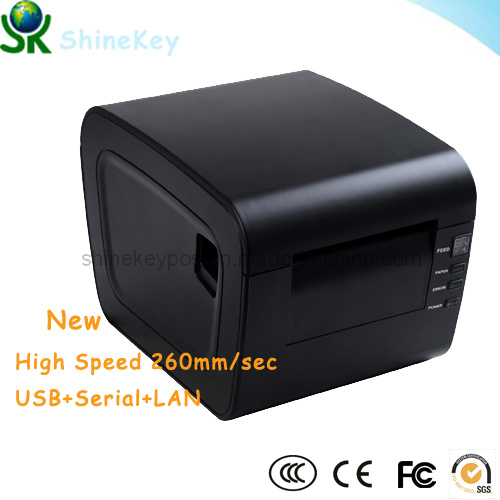

80mm Front Paper Loading POS thermal printer (SK T260M)Simple and Fashional Design
Competitive Price
Paper run out alarm
Waterproof functionFeatures:1.Support QR code printing2.Optional transfer languages by commands
3.Serial+USB+Lan interfac
4.100MB Ethernet interface connection transfer data efficiently
5.Support users' language and GB18030
6.Support re-printing
7.Printer status monitoring
8.Embeded with internet default IP
9.Input buffer 1024KB
10.Support black mark detection Technical parameters:
1. Item No.: SK T260M
2. Printing method: Direct thermal
3. Paper width: 79.5± 0.5mm
4. Resolution: 576dots/line or 512dots/line
5. Printing speed: 260mm/sec
6. Interface: Serial/+USB+LAN
7. Auto cutter: Whole or Partial
8. Printing paper: 79.5± 0.5mm× φ 83mm
9. Line spacing: 3.75mm(Use command modifies line spacing)
10. Column number: 80mm paper: FontA-42 olumns or 48 olumns/FontB- 56columns or 64columns/Simplified Chinese, traditional Chinese-21columns or 24columns
11. Character size: ANK, FontA: 12× 24dots, FontB: 9× 17dots Simplified Chinese, traditional Chinese: 24× 24dots
12. Extension character sheets: PC347(Standard Europe), Katakana, PC850(Multilingual), PC860(Portuguese), PC863(Canadian-French), PC865(Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852(Latin2), PC858, IranII, Latvian, Arabic, PT151(1251)
13. Barcode types: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ ITF/ CODABAR/ CODE93/ CODE128
14. Input buffer: 1024k bytes NV Flash: 256k bytes
15. Cash drawer control: DC 24V/1A
16. Power supply: Input AC 110V/220V, 50~60Hz
17. Power adapter: Output DC 24V/2.5A
18. Weight: 1.48kg
19. Dimension: 185× 140× 134mm
20. Color: Black
21. Working environment: Temperature (0~45° C) humidity(10~80%)
22. Storage environment: Temperature (-10~60° C) humidity(10~90%)
23. Printing head lifetime: 150km
24. Application fields: Shops, Supermarket, Catering, Hotel, Stock market,
|
Technical parameters |
|
Product model |
T260M |
|
Printing method |
Direct thermal |
|
Print font |
ANK, FontA: 12*24dots, FontB: 9*17dots |
|
Column capacity |
576dots/line OR 512dots/line |
|
Character size |
ANK, Font A: 1.5× 3.0mm(12× 24dots)32 columns
Font B: 1.1× 2.1mm(9× 17dots)40 columns |
|
Character set |
Buyer option |
|
Printing speed |
260mm/s |
|
Receive buffer |
1024k bytes |
|
NV flash buffer |
256K bytes |
|
Paper width |
79.5± 0.5mm |
|
Paper thickness |
0.06-0.08mm |
|
Roll paper |
79.5± 0.5mm* φ 83mm |
|
MCBF(life) |
100km |
|
Dimension |
185× 140× 134mm |
|
Gross weight |
1.48kg |
|
Auto cutter |
Yes |
|
Paper end sensor |
No |
Blackmark location
sensor |
Yes |
|
Cash drawer control |
DC 24V/1A |
|
Power supply |
DC24V/2.5A |
|
Power adapter input |
AC 110V/220V, 50~60Hz |
|
Power adapter output |
DC 24V/2.5A |
|
Drivers/Systems |
Win 9X/Win ME/Win 2000/Win 2003/Win NT/Win XP/Win Vista/win 7/linux/ Win 8 |
|
Barcode |
JUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/CODE93/CODE128 |
|
Working environment |
temperature (0~45° c) humidity(10~80%) |
|
|
|
Storage environment |
temperature (-10~60° c) humidity(10~90%) |
|
|
Command |
Compatible with ESC/POS |
|
Interface |
Serial+USB+LAN |
Shine Key Industry Co., Limited is a professional supplier for POS related products, such as receipt printer, barcode printer, barcode scanner, POS terminal and etc...Shine Key obtains its unique pioneering spirit from the reform and opening up. It also gets powerful technical support from domestic universities as well as strong creativity from hi-tech enterprises around. Our main manufacturing base is located in Zhuhai city, China, and except our own factory, we also have several permanent partners in the frontier cities of science and technology_Guangzhou and Shenzhen.
As early as 2006, Shine Key began to be dedicated to developing and popularizing products concerning the field of digital output and date collection. Our products have been widely applied in service business, such as telecommunications office, banks, hospitals, supermarkets, department stores, convenience stores, special stores, restaurants and places of entertainment. What's more important is that till now we have acquired itself with a strong force on research and development of new products. On one hand, some engineers have been awarded prizes for their excellent designs; On the other hand, our products have received wide recognition from markets, especially highly approved by Original Equipment Manufacturers (OEM).
Shine Key started to put POS products to international market since its inception. Our receipt printer and barcode scanner are very popular and also have a good sale in the international market, such as Central Asia, Southeast Asia, Africa, and Europe. Now the sale on international market is steadily on the increase. The company will seek for greater perfection to rank itself among the outstanding list in the POS industry by pursuing the best quality and service.
