Product Specifications
| Prod Model: |
F24-8D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
New! F24-8d Radio Remote Control |
| Control Distance: |
up to 100m |
| Control Point: |
13 |
| Transmitter Power: |
DC3V |
| Receiver Power: |
AC 380V/ 36V/220V or DC12V/24V |
| Enclosure Protection Class: |
IP65 |
| Output Capacity: |
5 Amperes |
| Temperature: |
-35°c___+80°c |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Certificate: |
CE, FCC, ISO9001:2008 |
| Application: |
Cranes, Hoists, Heavy Trucks, Excavator, Trailer, |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
AC 380V/ 36V/220V or DC12V/24V |
Product Description

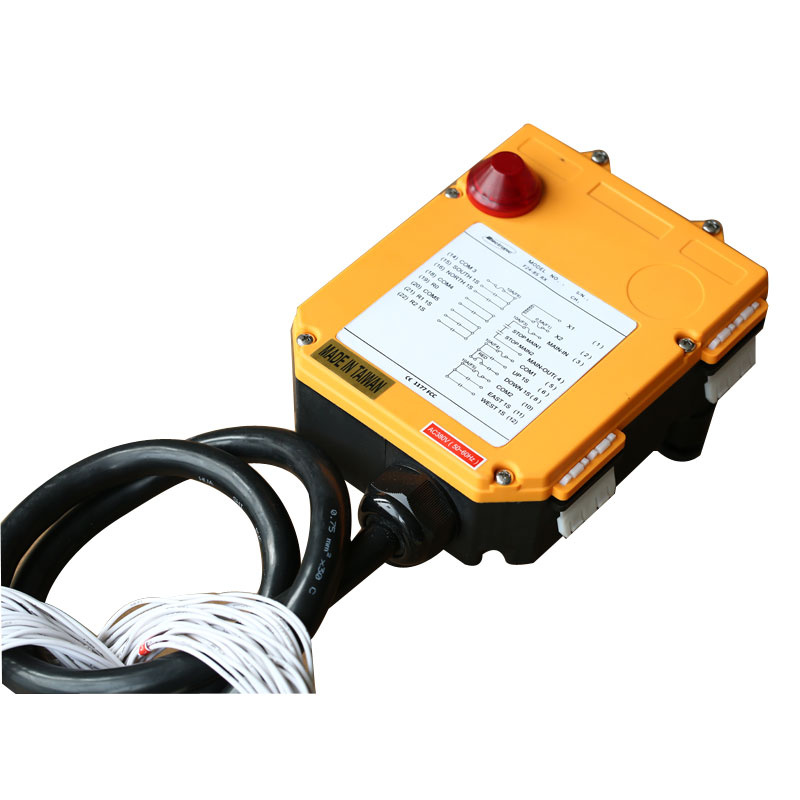

NEW! F24-8D radio Remote Control
Summary:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.
Products Application:
Single hook,Single speed hoist and Hoist crane and for industrial wireless remote control use which under 13 control points etc.
Brief Introduction:
Transmitter Size:196*65*53mm weight:320g
Receiver Size:171*86*85mm weight:550g
SPECIFICATION:
| Application | Overhead cranes, hoist ,chain hoist and other industrial machine. |
| Frequency | 310.0325~331.165Mhz |
| Frequency generation: | Crystal (plug in) |
| Channel | 80 |
| Channel Spacing | 0.2675MHz |
| Control motions | 13 |
| Control distance | Up to 100m |
| Certificates | CE, FCC, ISO9001:2008 |
| Number of push button | 8 Double speed push button+1 start |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C ~ +80°C |
| Enclosure protection class | IP65 |
| Transmitter power | AA-size batteries |
| Receiver power | AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V |
| Output capacity | Full sealed relay output with 5 amperes |
| Warranty | 1 year |
| Material | glass fiber |
Standard configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.
Products Features:
*8 Dual speed push button + one EMGS button+one STOP button + one START button + one SWITCH key.
*Control points are up to 13.
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*With the Rotate key switch to guarantee the safety.
*Set the internal functions by computer interface.
*Up/down,east/west, south/ north push button can be set mutual inhibition or not.
*Power button can be set start,speed up, jump strokes,ordinary etc.
*Spare 1-2 key can be set ordinary,interlock,jump strokes,switch etc.
Henan Yuding Electronics Crop., Ltd (former Zhengzhou Yuding Electronics Co., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Yuding has so many experts in the industrial radio remote controller area to assure workers safety and productivity, Yuding are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and productivity. All our products are CE & FCC Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
