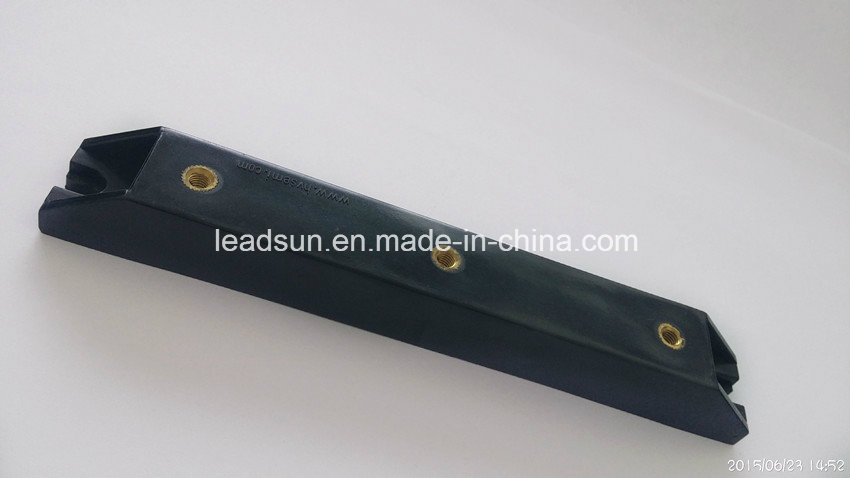

Feature:
1. Avalanche characteristic
2. More size available
3. Vacuum molded, non-corrosive epoxy resin case
4. Tj: -40ºC~+120ºC
Application:
1. High voltage rectifier used in electrostatic cleaning
2. High voltage testing equipment
3. General purpose high voltage rectifier
Extreme(Absolute Maximum Rating)
Item | Symbol | Unit | Conditions | Voltage |
Repetitive Peak Reverse Voltage | VRRM | KV | Ta=25ºC IR=1.0μA | 2×30.0 |
Peak Working Reverse Voltage | VRWM | KV | Ta=25ºC IR=1.0μA | 2×30.0 |
Non-Repetitive Peak Reverse Voltage | VRsM | KV | Ta=25ºC IR=1.0μA | 2×33.0 |
Average Forward Current | IO | A | Resistance load in oil@Tbreak=50ºC | 1.5 |
Surge Forward Output Current | IFSM | A | 0.01S @ Half-Sine wave 50Hz | 30.0 |
Operating Ambient Temperature | Ta | ºC |
| -40~+120 |
Junction and Storage Temperature | Tstg | ºC |
| -40~+120 |
Electrical Characteristics (Ta=25ºC)
Forward Peak Voltage | VFM | V | @Ta=25ºC IF=1.5A | 2×36.0 |
Peak Reverse Current | IRRM1 | μA | @Ta=25ºC VRM=VRRM | 10.0 |
IRRM2 | μA | @Ta=100ºC VRM=VRRM | 200.0 |
This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
