Product Specifications
| Prod Model: |
NEW-DMF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wiring Devices: |
Integrated Wiring |
| Type: |

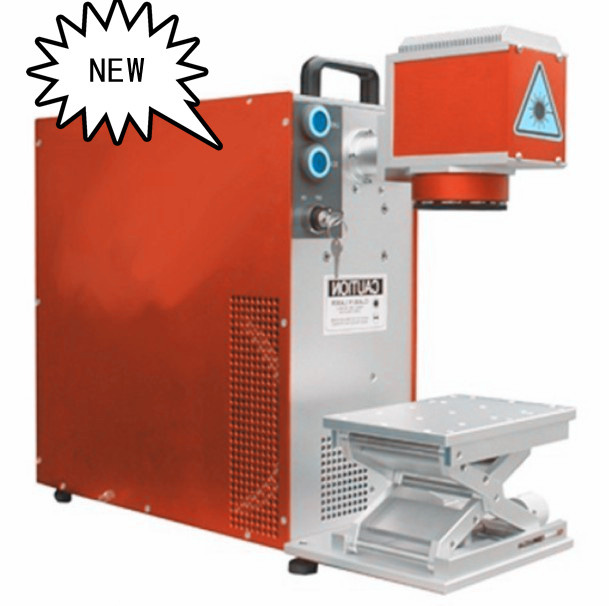

Fiber Laser Marking Machine |
Product Description
DM-W20 Fiber-optic laser marker, very Flexible, , which is easily integrate into industrial production processing. It can operate laser directly by controling interface (USB), no supplies, and products' depreciation costs are greatly reduced. By comparison, it has performances including high efficiency, long life and maintenance-free and so no, but the traditional laser does not.
Advantages:
1, high-definition: The resolution is measured by micron; It is two times clearer that traditional machine.
2, Less power consumption: Occapy traditional consumption of one and two-fifths to one and ten.
3, high-speed: The speed is three to five times faster than traditional machine.
4, stability: The stability of machine is much better than similar counterpart.
5, long life: Its lifespan is ten times longer than traditional machine.
Parameters Name Parameters Datas
Average laser output power 20W(Continuum or Pulse)
Laser wavelength 1064nm
Power adjustment range 10-100%
Repetition frequency 20-100kHz
Output beam quality < 1.5M²
Marking Linear deep ≤ 1.2mm
Min. Highlight spot 0.005mm
Min. Character size high 0.15mm
Repetition accuracy ± 0.001mm
Max. Linear marking speed 12000mm/s
Marking format Graphics, character, bar code, two-dimensional code, date, serial number
Software WINXP + support file formats of PLT, PCX, DXF, BMP etc; SHX and TTF fonts.
Standard marking area 100mm× 100mm
Marking area option 50mm× 50mm 150mm× 150mm 200mm× 200mm
Power consumed ≤ 160W
Electrical demand 220V± 10%/50Hz/4A
Cooling Mode Air-cooled
Control interface USB
Laser module life > 10000 hours
Laser IPG
Resonance mirror high speed
Usage environment Clean, no shaking
Supernova Laser Equipment Co., Ltd. is located on bao'an area of Shenzhen city. The company is a high & new technology enterprise of Shenzhen, and its products take the the lead in using laser marking, laser engraving and laser cutting.
The company focuses on leading technology. It has established cooperative relationship with many colleges and laser institutes. In order to keep its leading position in technology, the company keeps investing in technology, and it now boasts a powerful and professional technical team.
Our business philosophy: Innovation by technology, high quality by management, recognition by service.
Our company has a perfect after-sale services system, the sales and services net work has coverage nationwide, implement all sold-products warranty one year, and provide software upgrade by free. We except support to customers the laser marking and engraving technology, our company still dispatch engineers to buyer's factory for check and maintenance equipment aperiodic and offer services at any moment.
