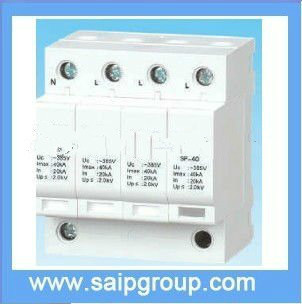

New Lightening Power Surge Protective Device (SP-220ACm)

Name: New Lightening Power Surge Protective Device (SP-220ACm)
Brand: China-Manufacturer-Directory.com
SKU: 677498795
Availability: InStock
Rating: 4.4 (31 reviews)

Supplier:	Yueqing Saibang Electric Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SP-220ACm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wave Type:	8/20s Wave Type
Rail Lead:	35mm
Applicable Power Supply System:	Tt, Tn, It
Feature:	Degradation Automatic Release
Case Material:	PC
Shell Protection Level:	IP20
Protection Mode:	L-PE, N-PE(2p)
Rated Working Voltage:	220V
Type Of Connector:	Screw Stationary Terminal
Lightening Protection Level:	C Grade
Type:	Signal Type Arrester
Structure:	Protective Gap
Installation:	Parallel Arrester

Product Description

Surge protector, Lightning Protection Surge Protective Device SP-220ACm Type I
New Lightening power Surge Protective Device (SP-220ACm)

Specifications:
· · · · · · · · · · · · · · · · · · · · ·
Surge protective device:
1.22 years specialized
2. CE and RoHS certificated
3. High current
4. OEM service.

Brief Introduction:
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
Saip modular SPD is designed according to IEC standard with high current capability and lightning discharging capability. The maximum discharge current can be 80~150kA. It is suitable for lightning protection of 220V/380V AC power system.

Advantages:
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
1. Modular design with excellent airtight proper
2. With indicator or working, remote alarm connector terminal and degradation
3.35mm electrical rail lead for easy installation.
4. Temperature control breaker, build-in over current fuse protector and thermal inductance breaker, 5. Degradation automatic release
6. Low residual voltage, quick response, high current capability and long life
7. Completed variety, easy maintenance
8. Different voltage and current is available
9. It can be design and manufactured according to buyers' option

Applicable Scope:
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
1. Low Voltage Main Electrical Power Distribution Cabinet/Box
2. Out-door Electrical Power Distribution Cabinet/Box
3. Applicable Power Supply System: TT, TN, IT

Character:
· · · · · · · · · · · · · · · · · · ·
1. Installation of 35mm Electrical rail lead
2. High power energy SPD
3.8/20μ S wave type
4. Remote connecting terminal, Remote alert
5. Build-in over current fuse protector and thermal inductance breaker
6. Degradation automatic release

Product Model	SP-220AC80	SP-220AC100
Case material	PC
Color	UL94-V0
Shell Protection Level	IP20
Color	White
Installation Way	35mm Electrical Rail Lead
No. of Connector Terminal	3 PIN
Working Environment	-40~+85°C
Relative Humidity	≤95%
Damage Status	Presenting Braking Status
Protection Mode	L-PE, N-PE(2P)
Dimension	729069mm
Weight(kg)	0.47	0.55
Indicator Function	Window Indication
Reference Standard	IEC61643 and GB 18802.1-2002
Lightening Protection Level	C Grade
SPD Type	One Ports
Type of Applicable Power Supply System	TT, TN, IT
Rated Working Voltage	220V AC
Max. Continuous Running Voltage	385V AC
Active Voltage	≥620V DC
Rated Working Frequency	50Hz(60Hz)
Leakage Current	≤30μA
Nominal Discharge Current (8/20) μs	40kA	50kA
Max. Discharge Current (8/20) μs	80kA	100kA
Voltage Protection Level (8/20) μs (10kA)Up	≤1.5kA	≤1.5kA
Voltage Protection Level (8/20) μs (In)Up	≤2.3kA	≤2.5kA
Respond Time (L/N-PE)	<20ns
Main Circuit Connecting Parameters
Type of Connector L(N)	Screw Stationary Terminal
Specification of Screw	M5
Min. SPD connecting weir sectional surface	BVR-16mm²
Max. SPD connecting weir sectional surface	BVR-35mm²
Type of PE Connector	Screw Stationary Terminal(Cold-press Terminal)
Specification of Screw	M5
Min. PE connecting weir sectional surface	BVR-25mm²
Max. PE connecting weir sectional surface	BVR-35mm²
Connecting Parameter of Remote Alert Circuit
Type of connector	Screw Stationary Terminal
Specification of Screw	M2
Min. Section Surface of Connecting Wire	BVR-0.5mm²
Max. Section Surface of Connecting Wire	BVR-1.5mm²
Max. working Voltage/Current	125V AC/0.2A
	48V AC/0.5A
Art. No.	100402003	100402001
