New Products Multilayer Plate Vulcanizer Machine with China Supplier

Product Specifications

Prod Model:	XLB-D(Y)1600*1600*1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green, Blue
Model:	Xlb-D(Y)1600*1600*1
Payment:	LC, Tt
Nominal Molding Power(Mn):	8.00
Working Layer Number:	7
Piston Stroke(Mm):	500
Main Motor Power(Kw):	22.5
Plate Clearance(Mm):	80
Calefaction Manner:	Steam Ecectricity
Configuration:	Frame
Certification:	CE, ISO

Product Description

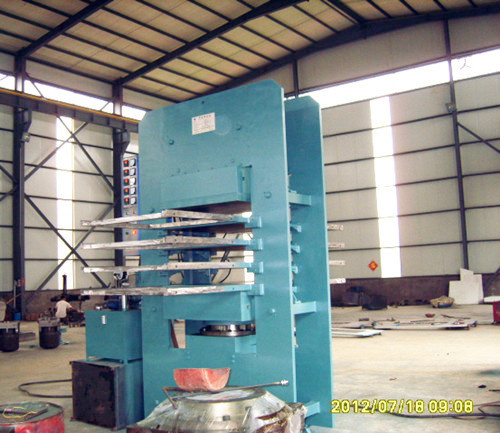

This machine is the single-cylinder large plate press vulcanizer series. It is mainly used in the vulcanization of various rubber products. It generally adopts frame structure with compact structure, beautiful modeling and strong clamp force. The upper template of each working position can by heated up to 180 degrees Celsius (adjustable), the lower template can control the temperature in the room temperature, which forms the effective temperature difference.

This machine has unique two-temperature working position structure and high pressure performance which are suitable for various reflective material products such as press forming of trademark light, etc.


Customize OEM/ODM SERVICE

WELCOME TO OUR FACTORY VIST AND NEGOTIATION
1. It has specialized in rubber machinery for 7 years;
2.100% real manufacture meet all your requests;

3. It has passed CE, ISO Certification;

4. It provide one year quality guarantee and long-term technical support;

5. Provide all kinds of rubber machine: Vulcanizing machine, hydraulic press, Rubber sheeting mill, Rubber extruder, Vertical rubber cutter, Rubber mixing mill, Rubber refining mill, Rubber crushing mill, Inner press vulcanizer, Kneader, Molding machine

6. Products have been exported to all around the world, such as America, UK, Ukraine, Chile, Sri Lanka, Indonesia, Thailand

Type	XLB-D(Y)700×700×1/2	XLB-D(Y)800×800×1/2	XLB-D(Y)1000×1000×1/2
(MN)Nominal mounding power	1.00	1.00/1.60	1.00/1.60
Working layer number	1-2	1-2	1-2
(mm)Piston stroke	250-500	250-500	250-500
(KW)Main motor power	2.2	2.2	2.2
(mm)plate chearanle	125-200	125-200	125-200
Calefaction manner	Electricity, (oil) steam	Electricity, (oil) steam	Electricity, (oil) steam
Configuration	Column type, frame type	Column type, frame type	Column type, frame type
Electric heating pipe's heating power (each heating layer) KW (only to the form of heating)	4.2	4.8
