Product Specifications
| Prod Model: |
XLB 400X400X2---XLB1000*1000*2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Rubber Vulcanization |
| Heating Way: |
Oil, Electric, Steam |
| Temperature: |
Automatic Control |
| Pressure: |
Adjustable |
| Motor: |
Famous Brand and Long Life |
| After-Sale Service: |
Support |
| Operation: |
Manual or Automatic |
| Control System: |
PLC |
Product Description

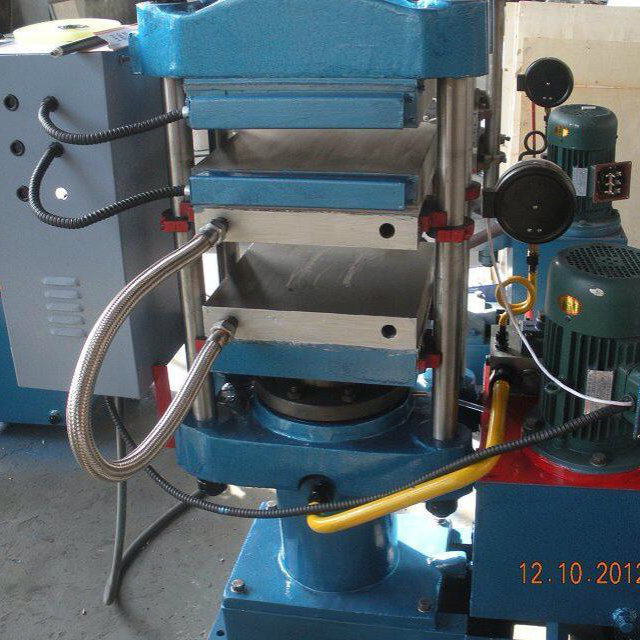

New Rubber Molding Machine Vulcanizing Machine
1:Function
The Machine is used for pressing all kinds of rubber model products,rubber plate,thermosetting plastic,and so on.Also can be uesd as common hydraulic machine .
2.Advantages
This machine is structured of pillar type bottom cylinder curing time and pressure can be adjusted .So it has ecomoical advantage of compact structure ,high working pressure ,high producing efficiency .Operation is safe and reliable .
Also we can provide hand control and electric control as customer's request
3.Technical Paraemeters
Parameters/version
|
XLB350*350*2 |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2/4 |
XLB750*850*2 |
XLB1000*1000*2 |
Mould closing force |
0.25 |
0.5 |
0.8 |
1.0 |
1.6 |
2.5 |
Hot plate spacing |
125 |
125 |
125 |
125 |
125 |
200 |
Hot plate layer |
2 |
2 |
2 |
2/4 |
2 |
2 |
Plunger stroke |
250 |
250 |
250 |
250/500 |
250 |
400 |
Heating way |
Electricity/steam |
Electricity/steam |
Electricity/steam |
Electricity/steam |
Electricity/Steam |
Electricity/steam |
Main motor power |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
5.5 |
The thermal power |
2.4kw/board |
3kw/board |
3 |
7.5kw/board |
9kw/board |
10.8kw/board |
Size(l*w*h) |
1450*400*1350 |
1600*400*1440 |
1450*690*1818 |
1880*780*1660 |
2100*1010*1900 |
2400*960*2500 |
Weight(kg) |
1200 |
1500 |
1700 |
2500/3100 |
3560/4300 |
8300 |
Platen unit area pressure |
2.04 |
3.13 |
2.52 |
2.78 |
2.51 |
2.5 |
We are real manufacturer of curing press,high quality with CE Standards and ISO9001 SGS Certification
About us :
Qingdao Guangyue Rubber Machinery Manufacturing is a professional manufacturer for rubber machinery. We has devoted to the rubber machine industry for 30 years and successfully exported to many countries. With good quality, competitive price and best service, we have received good reputation from our customers.
Our Services:
1.) Pre-sales Service:
Freely provide project designing, Professional suggestions, Quickly Response!
2.) Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
3. )After-sales service:
2years quality guarantee, Life-long Maintenance
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
