Product Specifications
| Prod Model: |
SK 2106 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM&ODM Service: |
Yes |
| Certification: |
Corh, FCC and etc. |
| Type: |
Barcode Scanner |
Product Description

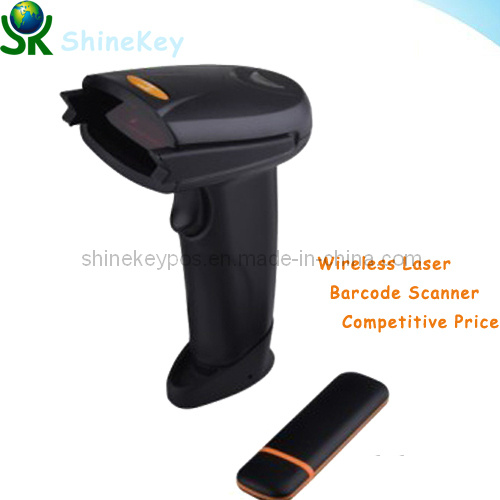

Wireless Barcode Scanner
New hi-tech wireless laser barcode readerFeatures:1. New hi-tech product, RF section uses America imported 2.4G wireless communication module.
2. All control systems uses large scale integrated circuit boards from America or Europe to ensure the working efficiency, stability and integrity.
3. Effective communication distance is 30-50 meters.
4.250K wireless transmission rate, high speed to microseconds delay transmission.
5. Unique frequency hopping technology enables superior anti-jamming ability. Will not be disturbed by other 2.4GHz device.
6. Each scanner can be named with an individual ID to avoid interference with others when working in a network.
7. Self-definable ID identifies the data origin.
8. Auto data detection during ensures transmission accuracy.
9. Easy inventory with memory of 500-10000 codes, as convenient as working on a portable USB disk.
10. Auto sleep mode, low power consumption to Micro-Ampere as common battery leakage current under natural condition.
11. Battery low voltage protection; The scanner emits a long beep when started under battery voltage lower than 3.5V.
12. Special charging circuit ensures charging safety.
|
Model No. |
SK 2106 |
|
Voltage Requirement |
5VDC ± 5% |
|
Current |
25 mA ( work ); 95 mA ( Max ); 250mA ( battery charging ) |
|
Laser classification |
Laser Class II |
|
Light Source |
Visible Laser Diode (VLD) @ 650 nm |
|
Read rate |
100 time/sec |
|
Resolution |
4mil high resolution series / 5mil long depth field series |
|
Scanning angle |
±60° \ ±65° \ ±42° ( left-right \ forward-back \ spin ) |
|
Symbol Supported |
UPC-A , UPC-E , EAN-13 , EAN-8 , EAN-14 , UCC/EAN 128 , Code 128 , Code 39 , Code 39 Full ASCII, Code93 , Codabar/NW7,Interleaued 25,Industrial 25,code11,
MSI/PLESSEY,ISBN/ISSN/ISBT,Bearer,Bookland,Code CIP, GERMAN POST,ITF14,ITF16,LOGMARS,DUN-14,Code 32,IMEI, ,, |
|
Indicator |
Beeper LED |
|
Size |
164*67*95 mm ( scanner ) 71*24*9.3mm (Receiver) |
|
Material |
ABS+PVC |
|
Battery |
3.7V/750mAh,Li-ion |
|
Charge Time |
2.5 Hours |
|
Scan Time |
20 Hours |
|
Working Frequency |
2.4G |
|
Bit Error Rate |
1/(5million) |
Effective
communication distance |
30 Meters ( Open Places ) |
|
Communication Interface |
USB |
|
Flash Rom |
3KB |
|
Drop Specification |
1.5m |
|
Operating Temperature |
-10°C to 45°C |
|
Storage Temperature |
-20 °C to 45°C |
|
Operating Humidity |
5%-85%(Non-Condensing) |
|
Storage Humidity |
5%-85%(Non-Condensing) |
|
ESD |
±15kVDC Air Discharge,±8kVDC Direct/Indirect Discharge |
|
Intensity Of Light |
Light 4.000luX max |
|
|
|
