Product Specifications
| Prod Model: |
XE85C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Lubrication: |
9.7L |
| Standard Bucket Capacity: |
0.16-0.34 |
| Type: |
Crawler Excavator |
| Size: |
Small-Scale |
| Certification: |
CE |
| Condition: |
New |
Product Description

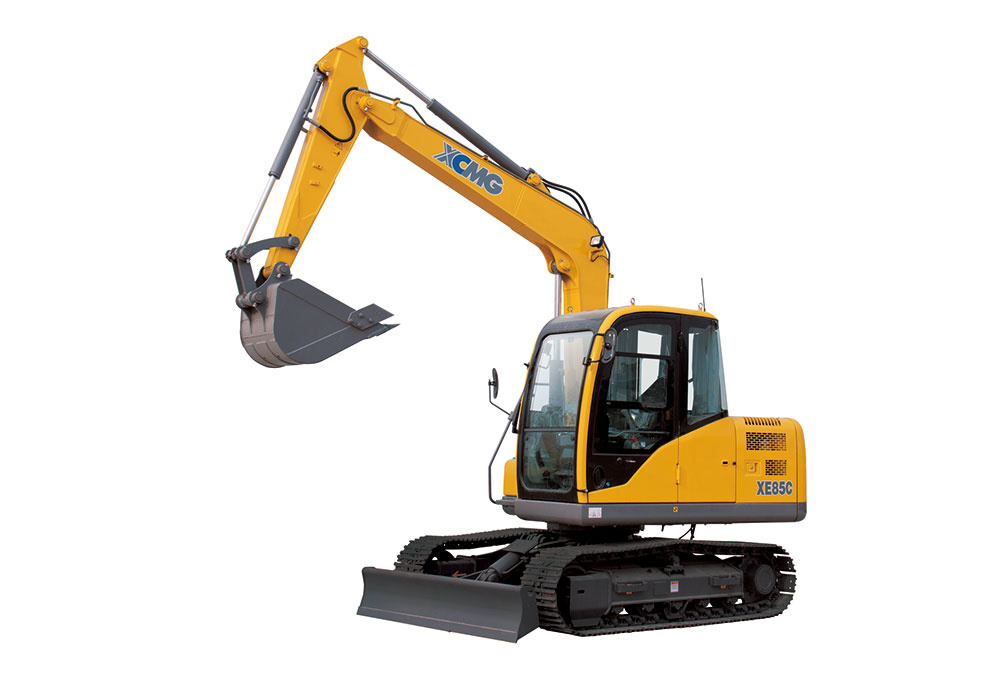

XCMG mini Crawler Excavator XE85C of high quality with a reasonable price.
PARAMETER SPARE
| Model | | XE85C |
|---|
| Operating weight | kg | 7700/8100 |
| Standard bucket capacity | m³ | 0.16-0.34 |
| Engine | Engine Model | / | 4JG1TPC |
| Direct injection | / | √ |
| Four strokes | / | √ |
| Water cooling | / | √ |
| Turbo charged | / | √ |
| Air to air intercooler | / | × |
| No. of cylinders | / | 4 |
| Rated power/speed | kw/rpm | 53.8/2150 |
| Max. torque/speed | N.m | 255/1800 |
| Displacement | L | 3.059 |
| The main performance | Travel speed | km/h | 4.9/2.6 |
| Swing speed | r/min | 11 |
| Max. gradeability | / | 35° |
| Ground pressure | kPa | 34.6/36.4 |
| Max.Bucket digging force | kN | 51.2 |
| Max.arm crowd force | kN | 34.2 |
| Hydraulic system | Main pump | / |
Toshiba |
Rate flow of main pump | L/min | 1×198+21 |
| Max pressure of prime relief valve | MPa | 27.4 |
| Max pressure of travel system | MPa | 27.4 |
| Max pressure of swing system | MPa | 20.6 |
| Max pressure of pilot system | MPa | 3.9 |
| Fuel tank capacity | L | 130 |
| Oil capacity | Hydraulic tank capacity | L | 115 |
| Engine lubrication | L | 9.7 |
| A Overall length | mm | 6144 |
| Overall dimensions | B Overall width | mm | 2332 |
| C Overall height | mm | 2712 |
| D Overall width of upperstructure | mm | 2250 |
| E Track length | mm | 2837 |
| F Overall width of undercarriage | mm | 2320 |
| G crawer width | mm | 450 |
| H Dozer black(width/height) | mm | 2320×416 |
| I Tumbler distance | mm | 2180 |
| J Crawer gauge | mm | 1870 |
| K Clearance under counter weight | mm | 827 |
| L Ground clearance | mm | 428 |
| M Min.tail swing radius | mm | 1805 |
| A Max. digging height | mm | 7165 |
| Working range | B Max. dumping height | mm | 5060 |
| C Max. digging depth | mm | 4130 |
| E Max. vertical wall digging depth | mm | 3500 |
| F Max. digging reach | mm | 6295 |
| G Min. swing radius | mm | 1800 |
| H Max.dozer lifting height | mm | 409 |
| I Max.dozer cutting depth | mm | 438 |
| Angle of arm deflection | Degree | / |
