Product Specifications
| Prod Model: |
Xe900c |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Length: |
13570mm |
| Overall Width: |
4550mm |
| Overall Height: |
5090mm |
| Type: |
Crawler Excavator |
| Size: |
Large-Scale |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

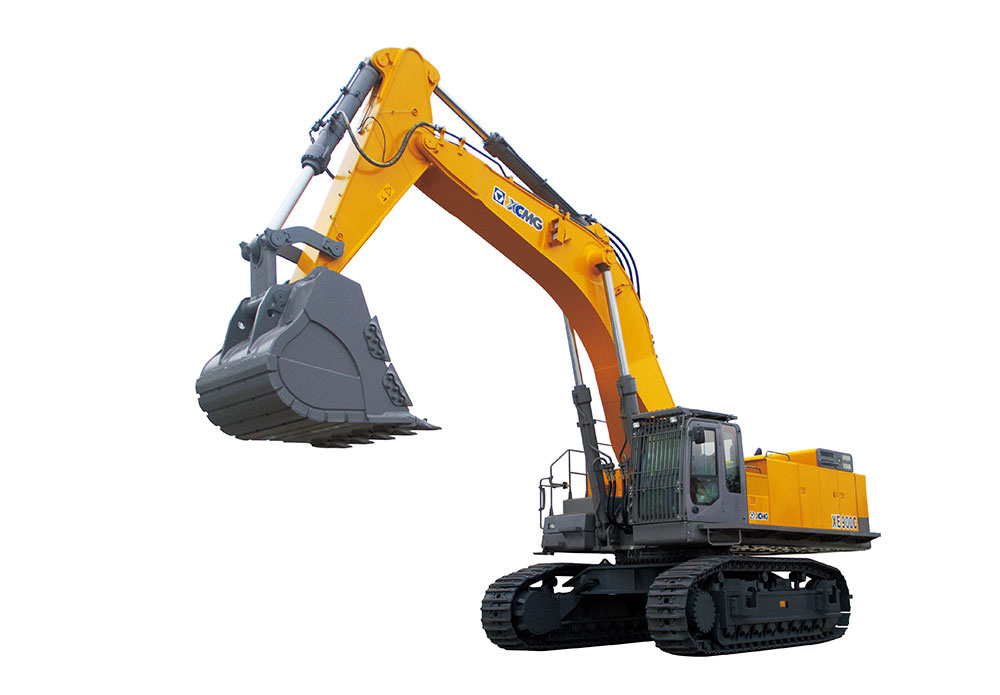

XCMG Large-sized Crawler Excavator XE900C of high quality with a reasonable price.
PARAMETER SPARE
| Model | Unit | XE900C |
|---|
| Operating weight | kg | 88800 |
| Standard bucket capacity | m³ | 4.0~5.0 |
| Engine | Engine Model | / | Cummins QSX15 |
| Direct injection | / | √ |
| Four strokes | / | √ |
| Water cooling | / | √ |
| Turbo charged | / | √ |
| Air to air intercooler | / | √ |
| No. of cylinders | / | 6 |
| Rated power/speed | kw/rpm | 395/1800 |
| Max. torque/speed | N.m | 2365/1400 |
| Displacement | L | 15 |
| The main performance | Travel speed | km/h | 3.9/2.7 |
| Swing speed | r/min | 7.3 |
| Max. gradeability | / | ≥30 |
| Ground pressure | kPa | 115 |
| Max.Bucket digging force | kN | 479 |
| Max.arm crowd force | kN | 368 |
| Max.traction force | kN | 629 |
| Hydraulic system | Main pump | / |
|
| Rate flow of main pump | L/min | 2×521 |
| Max pressure of prime relief valve | MPa | 31.4/34.3 |
| Max pressure of travel system | MPa | 34.3 |
| Max pressure of swing system | MPa | 30 |
| Max pressure of pilot system | MPa | 3.9 |
| Oil capacity | Fuel tank capacity | L | 1225 |
| Hydraulic tank capacity | L | 755 |
| Engine lubrication | L | 48 |
| Overall dimensions | A Overall length | mm | 13570 |
| B Overall width | mm | 4550 |
| C Overall height | mm | 5090 |
| D Overall width of upperstructure | mm | 3350 |
| E Track length | mm | 5840 |
| F Overall width of undercarriage | mm | 4550 |
| G Crawer width |
| 750 |
| H Track length on ground | mm | 4545 |
| I Crawer gauge | mm | 2960/3500 |
| J Clearance under counter weight | mm | 1680 |
| K Ground clearance | mm | 880 |
| L Min.tail swing radius | mm | 4700 |
| Working range | A Max. digging height | mm | 12060 |
| B Max. dumping height | mm | 8070 |
| C Max. digging depth | mm | 7250 |
| D 8inch horizonal digging depth | mm | 7100 |
| E Max. vertical wall digging depth | mm | 4200 |
| F Max. digging reach | mm | 12330 |
| G Min. swing radius | mm | 5200 |
| Angle of arm deflection | Degree |
|
