Product Specifications
| Prod Model: |
SH-ACGP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

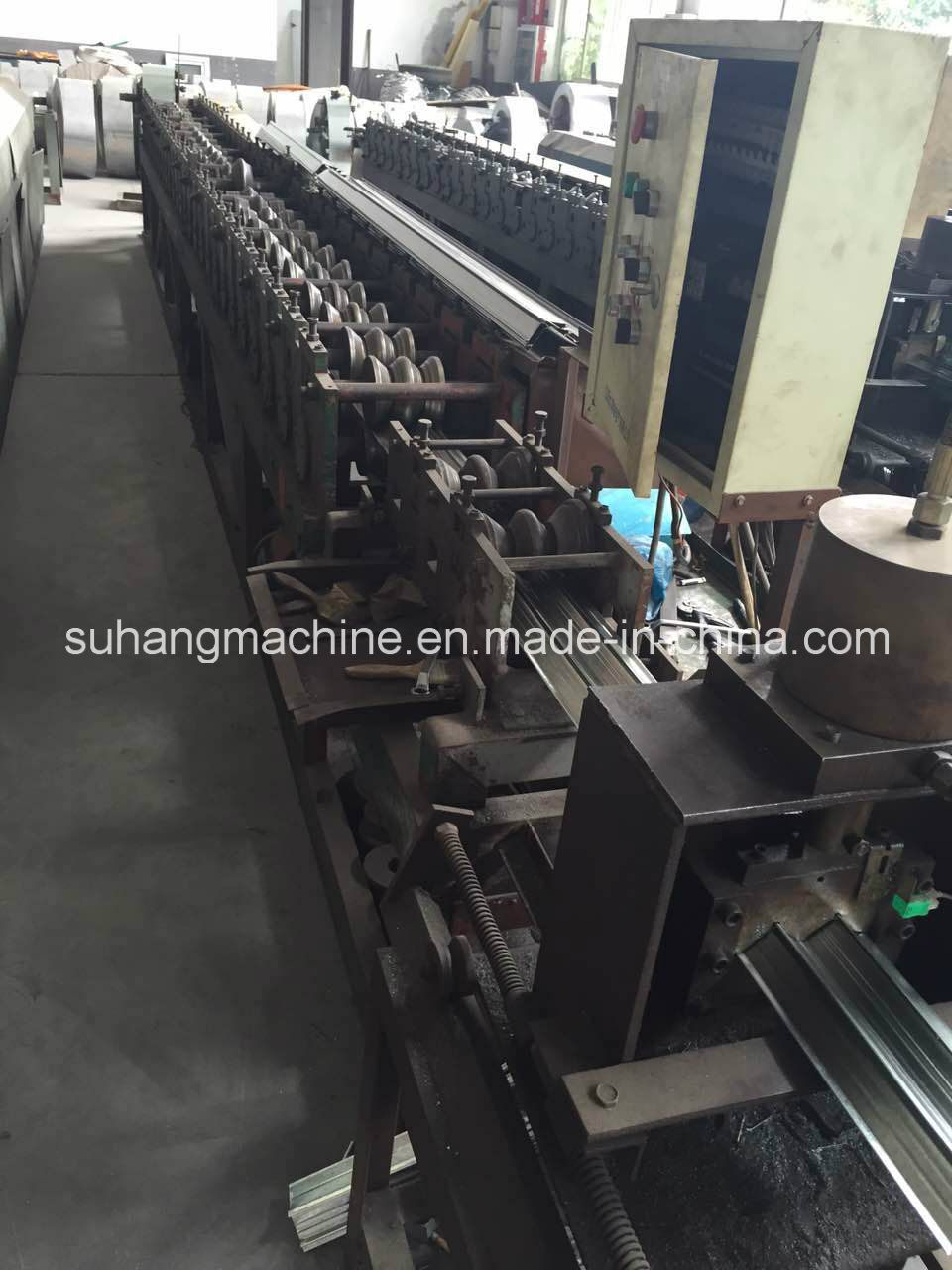

World Wild Popular 18 Stations Air Conditioning Guide Plate Roll Forming Machine
Technical Data of Air Conditioning Guide Plate Machine
1. Steel Sheet Thickness: 0.3-0.5mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: 18 stations
8. Roller Material: GCr15, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel
10. Principal Axis: GCr15 with quenching treatment
11. Main motor power: 7.5 Kw
12. Hydraulic power: 4Kw
Air Conditioning Guide Plate Machine Main Components
S.N |
Equipment name
|
Quantity |
| 1. |
3T passive un-coiler
|
1 set |
| 2. |
Main roll forming machine
|
1 set |
| 3. |
Hydraulic cutting
|
1 set |
| 4. |
Control system (including control box)
|
1 set |
| 5. |
Out tables
|
2 sets |
Advantage for Air Conditioning Guide Plate Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working Flow of Air Conditioning Guide Plate Machine
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Company Introduction
Wuxi Suhang Machinery manufacturing Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.
Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.
Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.
Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
