Product Specifications
| Prod Model: |
Cubieboard3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB Color: |
Red |
| CPU: |
Arm Cortex A7 Dual-Core |
| Main Chipet: |
Allwinner A20 |
| DRAM: |
2GB DDR3 |
| Nand Flash: |
4GB |
| Product Size: |
110 *80*1.4mm |
| Supporting System: |
LINUX |
Product Description
Specifications:

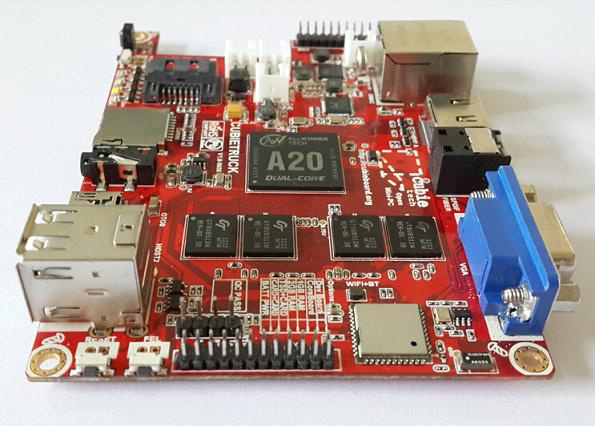

Cubieboard3 is also named "Cubietruck", and it is a upgrade of the cubieboard1/Cubiebard2, which is based on Allwinner A20 SoC, hacker friendly, extendable and very low-cost. Compared with Raspberry Pi, it has higher performance, SATA supported and 54 extended interface.
Since Cubieboard3 and Cubieboard1/Cubieboard2 share the same PCB, so all the accessories work with Cubieboard 1/2, and it can also work on with Cubieboard3.
Features:
1, Main Chipset: AllWinnerTech SOC A20
2, CPU: ARM® Cortex™ -A7 Dual-Core, ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
3, SDRAM: 2GB DDR3/480MHz
4, Video port: HDMI&VGA 1080P display output on-board
5, LAN port: 10M/100M/1000M Ethernet
6, WIFI: Wifi+BT wireless connection with antenna on-board
7, SATA 2.0 interface: Support 2.5' HDD(for 3.5' HDD, only need another 12V power input)
8, Storage solution: NAND+MicroSD or TSD+ MicroSD or 2*MicroSD
9, USB/OTG port: 2 USB HOST, 1 OTG, 1 SPDIF, 1 IR, 4 LEDs, 1 Headphone, 3 Keys
10, Power: DC5V/2500mA with HDD, Support Li-battery/RTC
11, Extended port: 54 extended pins including I2S, I2C, SPI, CVBS, LRADC*2, UART, PS2, PWM*2, TS/CSI, IRDA, LINEIN&FMI: N&MICIN, TVINx4 with 2.0 pitch connectors
12, PCB size: 110 *80*1.4mm, very suite for installing a 2.5' HDD
Packing List:
Cubieboard 3: 1pcs
DC to USB cable: 1pcs
SATA Cable(Data + Power): 1pcs
OTG Cable: 1pcs
Acrylic Case: 1pcs
Heat-sink: 1pcs
