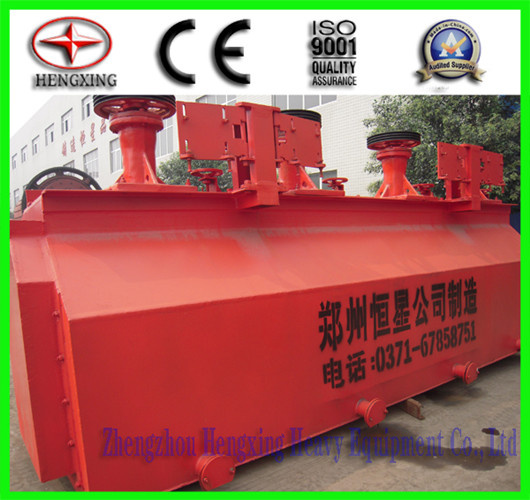

Introduction to flotation machine
Ore flotation equipment is applicable for the separation of nonferrous metal and ferrous metal and nonmetal, such as fluorite and talc. The impeller is driven by V-belts, which can bring the centrifugal effect to form the negative pressure. On the one hand, to inhale sufficient air to mix with ore pulp; on the other hand to stir ore pulp and mix with medication to form the mineralized froth, to adjust the height of flashboard to control the liquid level and make the useful froth scraped by loam board.
Application of Flotation Separator:
Floatation Separators, also called ore flotation equipment or flotation cells are popular for applications amongst the separation of ferrous and non ferrous metal for example fluorite and talc. It has an impeller which will create centrifugal forces in the form of negative pressure.
Floatation Separator is widely used in chemical, construct, metallurgy, machine making, food, food processing, feed processing, environmental protection and ceramics.
Technical Parameter
| Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | | Trough capacity(m³) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | | Blade diameter(mm) | 300 | 350 | 450 | 550 | 650 | | Production capacity(m³/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | Blade rotation speed
(m³/min) | 352 | 400 | 312 | 268 | 238 | | Motor | Model | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 | | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | | Power(kw) | 1.5 | 3 | 5.5 | 11 | 15 | | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | | Dimensions(mm) | 700*700
*750 | 900*820
*950 | 1100*1100
*1100 | 1700*1600
*1150 | 1850*2050
*1200 | Single trough weight
(kg) | 468 | 600 | 1373 | 2338 | 2660 |
|
| Model | XJK-0.35(3A) | XJK-0.62(4A) | XJK-1.1(5A) | XJK-2.8(6A) | XJK-5.8(7A) |
| Effective cubage(m 3 ) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 |
| Production capacity(m 3 /min) | 0.18-0.4 | 0.3-0.9 | 0.6-1.6 | 1.5-3.5 | 3-7 |
| Rotation speed(r/min) | 470 | 400 | 330 | 280 | 240 |
| Blade diameter(mm) | 300 | 350 | 500 | 600 | 750 |
| Motor | Model | Rotor | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6(Y225M-6) |
| Scraping plate | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 |
| Power(kw) | Blade Motor | 1.5 | 3 | 5.5 | 11 | 22(30) |
| Scraping plate Motor | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 |
| Weight(t/single trough) | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 |
