Newpos New8210 Linux POS 3G GPRS WiFi Ethernet Barcode Qr Code Printer

Name: Newpos New8210 Linux POS 3G GPRS WiFi Ethernet Barcode Qr Code Printer
Brand: China-Manufacturer-Directory.com
SKU: 705316062
Availability: InStock
Rating: 5 (29 reviews)

Supplier:	SZFP Technology Limited
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	NEW8210
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	PCI,EMV,Paypass,Paywave
Data Collector Type:	Batch Data Acquisition
Data Collector Signal Transmission:	Wireless
Data Collector Operating System:	Linux

Product Description

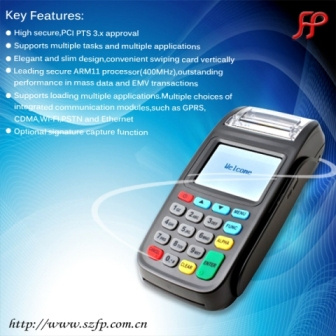

NEW8210 is a high performance and multiple function POS terminal. With its high security features and all in one design, The New8210 offers perfect payment solution.
High secure, PCI PTS 3.x approval
Supports multiple tasks and multiple applications
Elegant and slim design, convenient swiping card vertically
Leading secure ARM11 processor(400MHz), outstanding performance in mass data and EMV transactions
Supports loading multiple applications. Multiple choices of integrated communication modules, such as GPRS, CDMA, WI-FI, PSTN and Ethernet
High speed thermal printer, up to 25 line/sec, easy load style,adjustable print gray, supports printing dual layer paper
EMV4.3(Level 1&2), PBOC3.0, QPBOC3.0, CCC, CE, RoHS approved

Features:
1. Certifications: CCC, CE, RoHS, PCI PED, EMV4.2 Level 1 & 2, PBOC2.0, PAYWAVE,PAYPASS
2. Wide range of use: Credit / Debit card payment, Money Transfer, Prepaid Recharge, E-shopping, Top up.
3. Manufacturer competitive price.
4. Tech support and free SDK provided.
5. Prompt delivery.
6. Samples available.
7. Customized application development

Specification

CPU	32-bit secure CPU, ARM11, 400MHz
Memory	128MB FLASH, 64MB SDRAM, optional SD card slot
Display	2.8' TFT LCD, 320*240, white LED backlight
Keypad	10 alphanumeric keys, 8 function keys, 1 power switch key
Magnetic Card Reader	Compliant with ISO7811, ISO7812. Track 1/2/3, bi-directional swipe. Supports smart error correcting.
IC Card Reader	1 user card (EMV4.2), supports SLE4442 / SLE4428 memory card
PSAM Slot	2(optional 3) PSAM slots, compliant with ISO7816. Supports PPS protocol, up to 300kbps.
Internal PIN Pad	Supports MK/SK, Fixed, DUKPT. Supports dual and triple length TDES. Supports RSA, AES.
Communication (internal wireless)	GPRS/ 3G/ CDMA (2000 1X 800mhz)/ Wi-Fi Supports full SSLv2/3 TLSv1, supports 2 SIM slot
Remote Download	Supports New TMS or FTP remote download
Peripheral Port	2 RS-232. Output: 5VDC 500mA, 1 USB mini
Printer	High speed thermal printer: up to 28 lines/sec (84mm/sec). Easy-load style.
	Paper width:58 +0/-1mm.. Paper roll outside diameter: 38mm.
	Adjustable print gray, supports dual-layer paper, black label detection and smart paper positioning
Language	Supports Chinese (GB2312/GB18030), English, French, German, Latin, Russian, Arabic, Vietnam etc.
Power Supply	Input: 100 ~ 240VAC, 50Hz/60Hz. Output: 9.5VDC, 2.5A.
Li-ion Battery	2600mAh, 7.4V, more than 40 hours standby time, supports 400 transactions
Working Environment	Temperature: 0ºC ~ 50ºC(32ºF ~ 122ºF). Humidity: 10% ~ 90% (non-condense)
Storage Environment	Temperature: -20ºC ~ 60ºC(-4ºF ~ 140ºF). Humidity: 5% ~ 95% (non-condense)
Dimensions	19589.556mm (LWH)
Weight	495g
Certifications	CCC, CE, RoHS, PCI PED, EMV4.2 Level 1 & 2, PBOC2.0, PAYWAVE,PAYPASS
Optional Modules
CDMA	800Mhz
PSTN	Synchronous: V.22bis, V.29, supports 1200/2400/9600bps Asynchronous: V.34, up to 56Kbps Supports PPP dial, supports full SSLv2/3 TLSv1 Supports PSTN MODEM coexists with wireless
Wi-Fi	802.11b/g, support SSLV2/3 TLSv1.
LAN(Ethernet)	10Base-T/100Base-T, supports full SSLv2/3 TLSv1
Barcode reader	1D(ccd redlight or laser) / 2D
Contactless card reader (RFID)	Supports Mifare classic, Mifare Ultralight, Mifare DESFire, ISO 14443 A & B, SONY FeliCa
3G	WCDMA/CDMA2000/TD-SCDMA
Accesorries	Leather case, backup battery, car jack charger
