Product Specifications
| Prod Model: |
ACR122U-0209 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Communication: |
USB Full Speed |
| Operating Distance: |
<= 50mm |
| Supply Voltage Regulated: |
5V DC |
| Supply Current: |
200mA (Operating); 50mA (Standby); 100mA (Normal) |
| Installation: |
External (',634) |
| Card Slots: |
All in 1 / Multi in 1 (',245） |
| Interface: |
USB |
| Type: |
Smart Card Reader |
Product Description
General

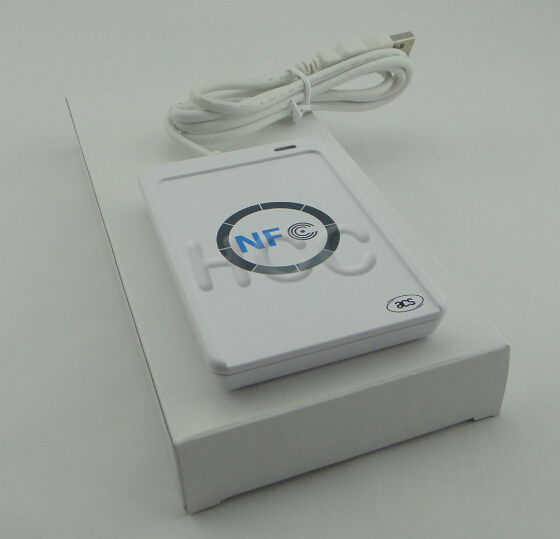

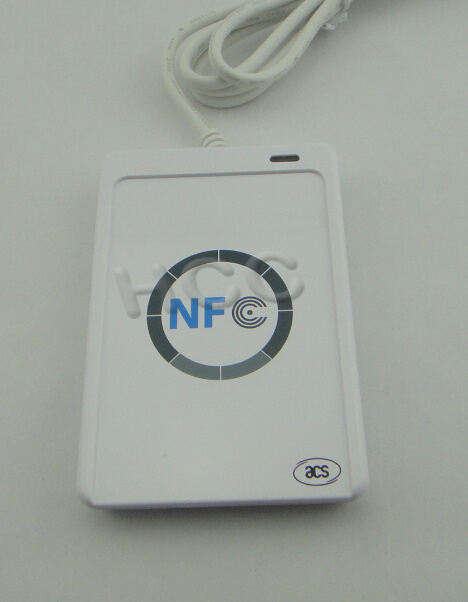

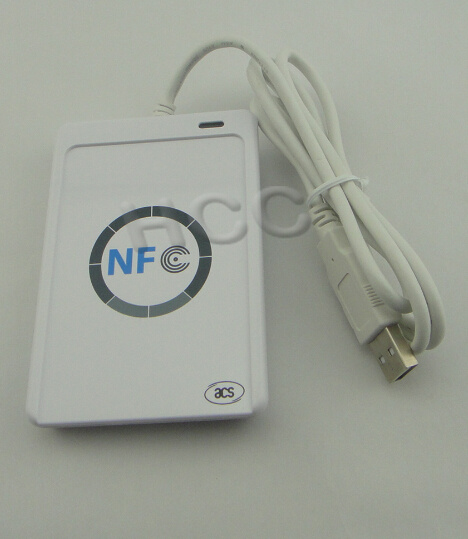

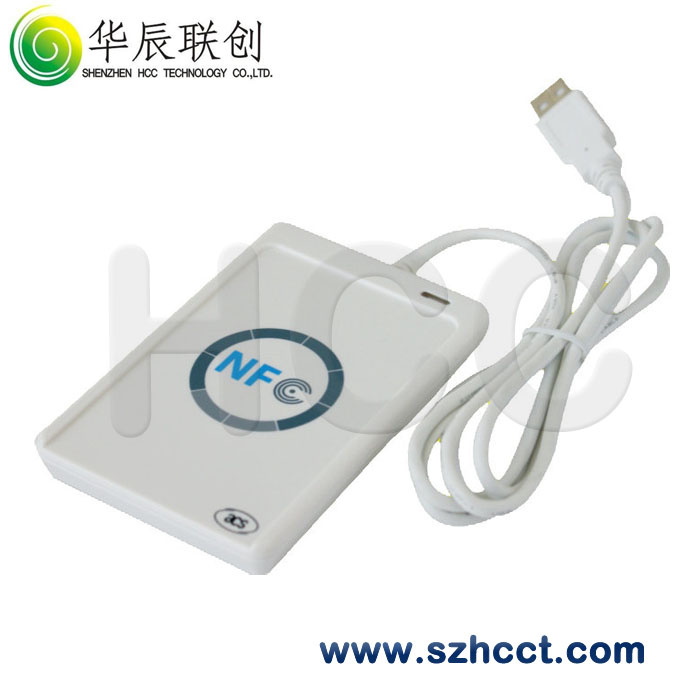

The ACR122 is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and followed the ISO/IEC18092 Standard for Near Field Communication (NFC), supporting not only Mifare ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.
The ACR122 is a USB Plug and Play device with CCID compliance. It is ideal for both secure personal identity verification and online micro-payment transactions. Typical applications of the ACR122 reader include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.
By making use of up to 424 Kbps for NFC Tag access and full USB speed of up to 12 Mbps, the ACR122 can read and write faster and more efficiently. The proximity operating distance of ACR122 is up to 5 cm, depending on the type of contactless tag in use. Operating distance can be extended on request by adding an RF boaster, so the ACR122 is suitable for logistics and supply chain management.
In order to increase the security level, the ACR122 can be optionally integrated with an ISO7816-3 SAM slot. In addition, the ACR122 is available in module form for easy integration into bigger machines, like POS terminals, physical access devices and vending machines.
With excellent performance and flexibility, you can experience the convenience and benefits offered by the ACR122.
ACR122 reader standard features:
USB Full Speed (12 Mbps)
USB PNP
Bi-Color LED
Built-in Antenna
NFC Reader
ISO/IEC18092 (NFC) compliant
NFC Tags Access Speed=424 kbps
Contactless Smart Card Reader
Support FeliCa card
Support ISO 14443 Type A/B cards
- MIFARE cards (Classics, DESFire)
CCID Standard
CE and FCC Certificated
RoHS Compliant
User Controllable Buzzer (optional)
SAM Socket (optional)
Typical applications:
Home Banking and Home Shopping
E-commerce
Checking the balance of electronic purses
Network access control
Customer Loyalty Program
Identification and Authentication
Ticketing
Online gaming
Parking and toll collection
Automatic Fare Collection
Public Transportation Terminals
Physical Access Control
Time attendance
Vending machines
Contactless public phones
Logistics and supply chain management
Technical Specifications:
Dimensions 98 mm (L)X65 mm(W)X12.8 mm(H)
Weight 70 grams
Interface USB Full Speed
Operating Distance <= 50mm
Supply Voltage Regulated 5V DC
Supply Current 200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature 0-50
Operating Frequency 13.56 MHz
Standards/Certifications ISO14443 1-4, CE, FCC, RoHS Compliant
Operating System Support Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 64
| Dimensions | 98 mm (L) x 65 mm (W) x 12.8 mm (H) |
| Weight | 70 grams |
| Interface | USB Full Speed |
| Operating Distance | <= 50mm |
| Supply Voltage | Regulated 5V DC |
| Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
| Operating Temperature | 0-50C |
| Operating Frequency | 13.56 MHz |
| Standards/Certifications | ISO14443 1-4, CE, FCC, RoHS Compliant |
| Operating System Support | Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 64 ,Android 3.1 and above |
