Price: | US $ 279-289/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 10/Piece |
Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Wireless | |
Compatible Mobile Networks |
UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+) GSM EDGE/GPRS CDMA1x CDMA EVDO Rev 0, Rev A, Rev B TD-SCDMA/TD-LTE 4G LTE (FDD/TDD) |
Cellular Frequency |
UMTS/HSPA/HSUPA/HSPA/HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/AWS; 3G TD-SCDMA: 2010~2025MHz/1880~1920MHz Quad-band EGSM 850/900/1800/1900; CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz; 4G FDD LTE: Band 1--2100Mhz, Band 2--1900Mhz, Band 3--1800Mhz Band 5_850Mhz, Band 7--2600MHz, Band 8--900Mhz Band 12_700Mhz, Band 13--700(B13)Mhz, Band 17--700(B17)/AWS Band 20--DD800Mhz 4G TDD LTE: Band 40 -- 2300Mhz, Band 39 – 1900Mhz, Band 38--2600Mhz Notes: 4G LTE is new. There are many different band and frequence. Please confirm the detailed band and frequency with your carriers before order. |
Bandwidth |
HSPA+: Downlink 21/42Mbps, Uplink 5.76Mbps; HSPA: Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps; EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps; CDMA1x: Downlink/Uplink 153.6kbps; CDMA EVDO: Rev B: 14.7Mbps downlink, 5.4Mbps uplink Rev A: 3.1Mbps downlink, 2.4Mbps uplink Rev O: 2.4Mbps downlink, 153.6kbps uplink 4G LTE: Max. 100Mbps downlink, 50Mbps uplink 3G TD-SCDMA: 2.8Mbps |
Bandwidth (bandwidth binding mode) | Twice bandwidth (depends on network quality) |
Main Features and Performance | |
USB Host | No, can ODM |
SMS/Voice | SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option |
GPS (Option) | GPS feature |
DTU (Option) |
With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option). Details: Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps; Serial Parity: none, even, odd; Serial Databits: 7, 8; Serial stopbits: 1, 2; Serial flow control: none, hardware, software; Mode: Server (up to 4 server centre, can OEM to be more), Client; Protocol: TCP, UDP ; Heart Beat : Yes; |
VPN | PPTP, L2TP, IPSec, GRE, Tunnel (PPTP server, PPTP client, L2TP client, IPSec client, IPsec server) |
OpenWRT (Option) | Optional |
VRRP (Option) | Optional |
Route |
Static Route; Optional for Static Route (BGP, BGPD, OSPF, Zebra, Rip); |
SNMP | Support V1, V2. V3 |
VLAN | Support multi-LAN IP address, support two IP address |
Wi-Fi |
Optional, 802.11b/g/n; 150Mbps default. 300Mbps optional. Can be used as AP and client; Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users |
Fail Over Redundancy (network Backup feature) |
Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Dual cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client four line redundancy; Cold Backup (WAN RJ45, Dual WAN Cellular, WiFi Client) is default, Hot Backup (Two Cellular)is default, Hot Backup(WAN RJ45 and WAN Cellular) is option; Cold Backup=Two lines not online at the same time. One line online and the other line standby, switch freely with triggers; Hot Backup=Two lines are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup. |
POE | Optional for LAN/WAN RJ45 |
Firmware update | support firmware update locally or remotely (LAN, WiFi and OTA WAN) |
Syslog | local and remote |
DDNS | Yes |
DHCP Server | Yes |
Internal Battery | Optional (8000mAH, 4000mAH *2) |
Others |
DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve; |
Management System | Option |
Protocol | |
Protocol support | TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, etc. |
Security | |
Firewall |
support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 – PSK support WPA1/2 – 802.1x support EAP – TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ |
Advanced Firewall Features |
Stateful Packet Inspection (SPI) VPN Pass-through |
Media Access Control | CSMA/CA with ACK |
Certifications | REDIUS Client |
Interface | |
LAN/WAN |
4X 10/100M LAN port (RJ45 interface) 1X 10/100M WAN port (RJ45 interface) WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual) |
Antenna |
4 X antenna (50Ω SMA female interface,detachable): Wi-Fi, 2 Cellular, GPS; Cellular support MIMO option; WiFi support MIMO option; |
Led |
SYS VPN WiFi Cell1 Cell2 Cell Signal1 Cell Signal2 LAN (10/100M) 1, 2, 3, 4 WAN CHR (Internal battery charging) GPS |
Button | Reset |
Console | 1 console port (also can be used as M2M port) |
Serial port | RS232 or RS485 with DB9 and Terminal Block interface |
IO Port (option) | 2 |
Management |
Easy to use and management; Web/Telnet/SSH/CLI, support remote management |
At command | Supported |
UIM/SIM Card Slot | Support 1.8V/3V UIM/SIM cards, two sim card slot |
DC Jack |
Two types of input jack for DC 2.5mm DC jack * 1 Terminal Block * 1 |
Power | |
Power supply |
DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option |
Current |
Idle: 30mA@12VDC Max: 420mA@12VDC Average:220mA@12VDC |
Software | |
Device Management | WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers,Chome,Opera,Sarafi) |
Minimum System Requirements |
Mobile Internet Access Subscription and Internet PC Adapter Computer with: Windows 8, 7, Vista , Windows XP SP2, Windows 2000 SP4, or Mac OS® X (v10.4/v10.3), Linux, other OS support internet browser; CD-ROM Drive Network Interface Card |
Physical | |
Operating Temperature |
Storage Temperature: -40 ~ 85°C Working Temperature: -30 ~ 75°C |
Humidity | 95% Maximum (Non-condensing) |
Dimensions |
PCBA: 168mm x 111mm x 16mm With case: 180mm x 114mm x 32mm |
Weight | 705~725g (not including the antenna) |
Color | Metal Gray-Black, OEM is available |
Others | |
Warranty | 1 Year default. Option extends to 5 years maximum. |
Package Contents |
H720 Series wireless Router CAT5 Ethernet Cable Power Adapter Antenna Others depends on option features |

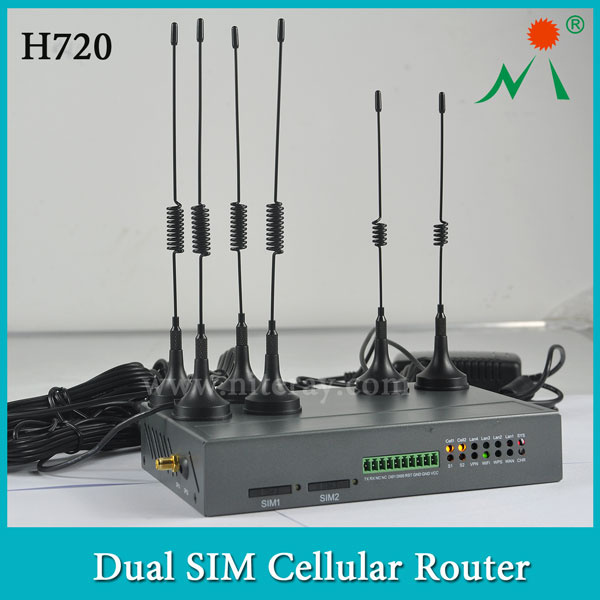

Prod Model: | H720 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
GPS (Option): | GPS Feature |
Snmp: | Support V1, V2. V3 |
Poe: | Optional for LAN/Wan RJ45 |
Certifications: | Redius Client |
Serial Port: | RS232/ RS485 |
Io Port: | 2 |
WiFi: | Optional |
Video Sever: | Optional |
Internal Battery: | Optional |
Wan RJ45 Port: | Optional |
Type: | Wireless |
Firewall: | Firewall |
Application: | SOHO |
Transfer Rate: | 7.2Mbps |
Ports: | ≤4 |
Port Structure: | Modular |
Network: | WCDMA |
