Qingdao Auto-Meters Co., Ltd. >> Nitrogen Gas Regulator with Flow Meter

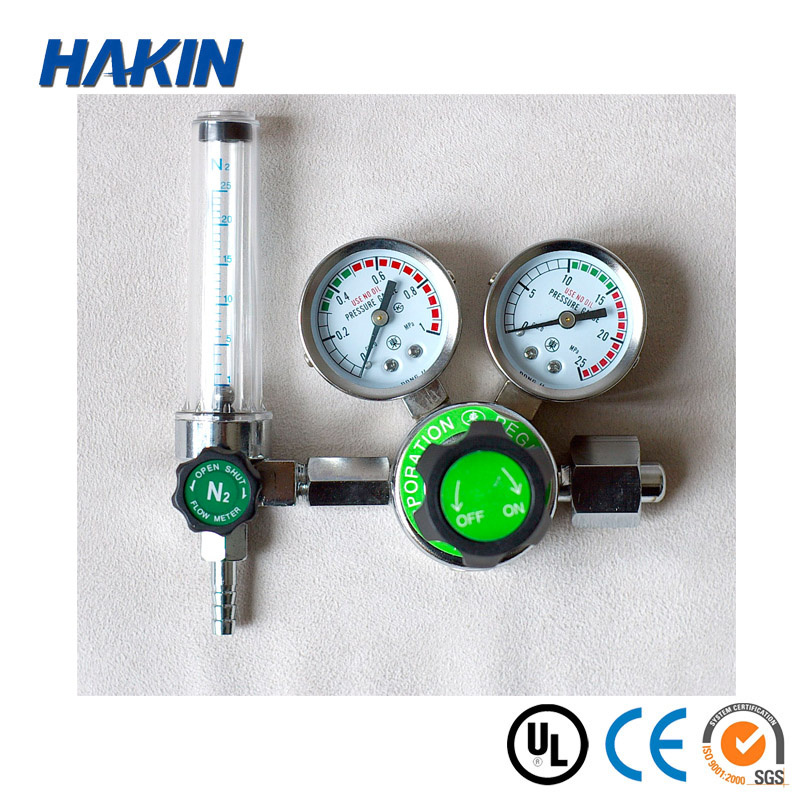

Nitrogen Gas Regulator with Flow Meter

Name: Nitrogen Gas Regulator with Flow Meter
Brand: china-manufacturer-directory.com
SKU: 688104112
Availability: InStock
Rating: 4.6 (82 reviews)

Supplier:	Qingdao Auto-Meters Co., Ltd.
Price:	US $ 16.8-19.5/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YQD-731L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Largest Inlet Pressure:	15mpa
Largest Outlet Pressure:	1.25mpa
Connection:	G5/8
Body Material:	Excellent Brass
Valve Material:	Aluminium Alloy
Application:	Industrial
Diameter:	<25mm
Starting Flow:	>3m³/h
Kind:	Gas Regulator
Precision Grade:	2.5

Product Description

Nitrogen regulator

-Long life made of excellent brass
-Safe, 16MPa over load test past
-Safe ease hole
-Two guard, one resistance

Nitrogen gas regulator YQD-731L

HAKIN--Brand with experience of manufacturing pressure regulators & gauges for 25 years.

The cover made of Aluminium Alloy, could afford 16MPa over load.

The body material is excellent brass, make sure the steady outlet pressure and longlife.

Two guard, one resistance.

YQD-731L Nitrogen gas regulator
Input pressure gauge range: 25MPa
Oulet pressure gauge range: 4 or 2.5 MPa
Largest inlet pressure: 15MPa
Largest working pressure: 1.25MPa
Connection: G5/8
Body material: Excellent brass

Specification / Model no# All below specifications can be customised.	Nitrogen Gas Regulator
	YQD-07	YQD-731L
Input pressure gauge range(MPa)	0 - 25	0 - 25
Output pressure gauge range(MPa)	0- 2.5	0- 1
Input pressure (MPa)	15	15
Output pressure (MPa)	1.25	1.25
Rated flow(m3/h)	40	25L/min
Inlet thread	G5/8	G5/8
Outlet thread	M16X1.5	M12X1
Body Material	excellent brass	excellent brass

One of three biggest pressure gauge manufacturers in China

Established in 1987, Qingdao Hakin Group Co., Ltd. Specializes in manufacturing and exporting Pressure gauge, Pressure regulator, Manometer and Pressure thermometer.

Qingdao Auto-meters Co., Ltd is subsidiaries of Qingdao Hakin Group Co., Ltd.

We have a strong network that allows us to design and customize products. We currently produce over 8 varieties, more than 100 series, and about 1, 000 specifications of instruments for various industries including oil exploration, chemical industry, chemical fiber industry, iron and steel industry, metallurgical industry, power generation plants, food industry and scientific research.

Our products are exported to East Asia such as Korea & Japan; The European Union such as Russia, Germany & Italy; The Middle East, America. Southeast Asia such as Vietnam, Thailand & Indonesia.

Our company's main partners: Italian TER. MA. DEN. SNC, South Korea's KONICS, Germany WIKA, China's Haier.

As a well-known manufacturer in China, our factory has approved by CCC, ISO14001, ISO9001, CE, SGS and KS certificates.

We will unswervingly make more efforts to supply competitive products and the best services to all customers.

If you need high quality products, wecome to contact us. If you need low price low quality products, please do not contact us.

Once cooperation, friends forever!
