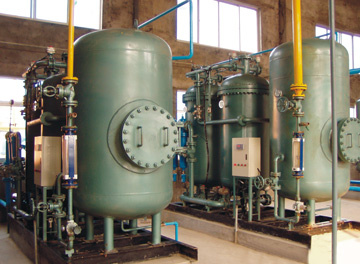

Nitrogen Generation from PSA - 2
Product Specifications
Product Description
Air, after pressurized to the adsorption pressure by air compressor, is fed into adsorbers prior to passing the filtration of refrigerating dryer. The adsorbent is carbon molecular sieves. It is just making use of the property that adsorption amount of oxygen and nitrogen differs on the surface of the carbon adsorbent to adsorb O2 and desorb N2. The opening and closing of the program valves are controlled by the programmable logic controller (PLC) to complete each cycle of adsorption and desorption and then N2 is produced with the required purity. The two adsortbers are in adsorbing and desorbing alternatively to ensure N2 to be generated constantly and steadily.
|
Main performance index |
|
Product Production capacity |
5~2000Nm3/h |
|
Product purity |
95%~99.999% (v/v) |
|
Pressure |
0.1~1.0MPa-g |
|
Dew point at atmospheric pressure |
-40~-55º C |
|
Type |
Model |
Process features |
|
Over-trace H2 |
ANCH |
Process of over trace H2 hydrogenation: Adopting high-efficiency deoxidation catalyst, and both hydrogenation and deoxidation in a single adsorber. |
|
Low-trace H2 |
ANCH |
Process of hydrogenation and deoxidation: Two kinds of catalysts in series with low trace H2 process. |
|
ANCH |
Low trace H2 and deoxidation process. Adopting high-efficiency deoxidation agent and adsorbent. |
|
No H2 |
ANCH |
Process of purification directly: No need hydrogenation in the process of gas generation, and the product is low trace H2 or no H2, but a small quantity of H2 is required by the deoxidation machine for replacement. |
BRIEF INTRODUCTION OF ALLY HI-TECH Co., Ltd.
Founded in 1996, Ally Hi-Tech Co., Ltd. The former Sichhuan Ally Chemistry Institute, is a high-tech enterprise which integrates product R&D, manufacture and engineering with technical service and is well evaluated for its advanced technology and quality service.
Ally Hi-Tech has three branches which are Ally Hi-Tech Co., Ltd. (Sichuan), Ally Chemical Material Co., Ltd. (Shanghai) and Ally Hi-Tech Machinery Co., Ltd. (Chengdu) as well as its workshop. Besides its laboratory, Ally has also established cooperating laboratories with Chengdu Branch, Chinese Academy of Science, Tongji University and South China University of Technology; And has been cooperated with Tsinghua University for the National 863 Project (National High-tech Project) and 2008 Beijing Olympic Game as well as 2010 Shanghai World Expo.
In 2000, Ally was restructured into a limited limited company.
In Octorber 2008, Ally was transformed into an incorporated corporation.
MAIN BUSINESS
Ally Hi-Tech is a professional gas engineering enterprise which is engaged in the technology development, engineering and construction as well as technical service for generation, separation and purification of industrial gases while also runs in the fields of production of industrial catalysts, valves and sewage treatment as its non-core business.
Ally's products are widely used in terms of pertroleum, refinery, cjemistry, fine chemical industry, fuel ethanol, ammonia, merallurgy, electronics, glass and pharmaceuticals etc.
Ally contracted over30 projects each year; The contracting form includes engineering (besic design & detail design), engineering management, procurement management, partial contract and EPC.
