Nitrogen Reflow Solder Oven with Ten Heating-Zones Eta-S10-N

Name: Nitrogen Reflow Solder Oven with Ten Heating-Zones Eta-S10-N
Brand: china-manufacturer-directory.com
SKU: 713100335
Availability: InStock
Rating: 4.7 (41 reviews)

Supplier:	Shenzhen ETA Electronic Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ETA-S10-N Nitrogen reflow solder oven
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey
Precision:	High Precision
Heating System:	Electric
Demoulding:	Automatic
Function:	Anti-Corrosion
Warranty:	12 Months
Customized:	Customized
Condition:	New
Automatic Grade:	Automatic
Certification:	CE
Mould Life:	>1,000,000 shots

Product Description

Main product: Reflow oven, SMT reflow oven, SMT mounter, SMT Pick and Place Machine, SMT Placement Machine, SMT Mounting Machine, Elctronic Equipment, PCB Machine, Reflow Oven, Electronic Equipment, SMT Assembly, SMT/SMD Equipment

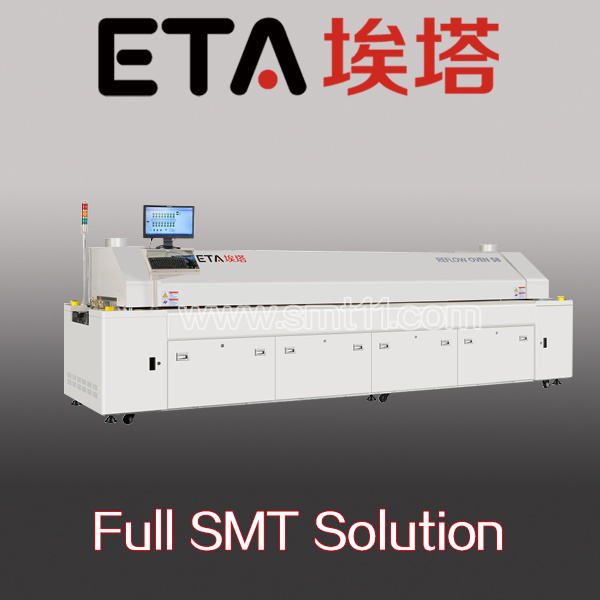

Nitrogen reflow solder oven with ten heating-zones ETA-S10-N

1, Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
2, The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
3, Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
4, Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
5, To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
6, Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec. )
7, Center support and dual rail is optional.

Model	S10-N
GENERAL
Outside dimension	5840 x 1360 x 1490mm
Standard color	Computer grey
Weight	2400kg
Number of heating zones	Up10/bottm10
Lengthof heating zones	3480mm
Number of cooling zones	2(built-in)
Exhaust volume	10M3/min*2 exhausts
Standard feature of control system
Electric supply required	3phase, 380V 50/60Hz
Electric power required	67KW
Power for warm up	36KW
Power consumption	12KW
Heating pattern	Up & Bottom Hot air
Warming time	Approx. 30minute
Temp. setting range	Room temp__300degree
Control system	PLC+ Computer
Temperature control method	PID close loop control +SSR driving
Temperature control precision	± 1.0degree
Temperature deviation on PCB	± 1.5degree
Data storage	Process data and status storage (80GB)
Abnormal alarm	Abnormal temperature(extra-high/extra-low temp)
Board dropped alarm	Tower light: yellow warming: Green-normal: Red-abnormal
Standard features of conveyor system
Max. width of PCB	Max: 500mm(Standard)
Rail Number	1 Lane Or 2 Lane (option)
Components clearance	Top/bottom clearance of PCB is 25mm
Conveyor height	Light → right(option: R→ L)
PCB transmission agent	Air-reflow=chain +mesh (Standard)
Conveyor height	900± 20mm
Conveyor speed range	300~2000mm/min

For SMT factory setup, we can do for you:

1. We provide fulL SMT solution for you

2. We provide core technology with our equipments

3. We provide the most professional tech service

4. We have wealthy experience on SMT factory setup

5. We can solve any question about SMT

Introduction

ETA is the leading SMT factory solution provider in China, offering professional SMT factory building advice and service. We have 20 year experience about SMT factories, offering full solutions for global clients with our great advantaged sources. Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development Currently ETA SMT equipment is representative of high quality, has maintained absolute leading technology in the industry.

Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard, the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle. ETA's continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.

ETA

Shenzhen Factory

Produce Stencil printer, reflow oven and SMT peripheral equipments

Hongkong company

Main for trade, offering trade service and support

Inter-trade department 1

Providing full SMT factroy line solution, including chip mounter. We are regular agent of Samsung SMT in China, meantime, we also work with Japan Juki selling JUKI Chip mounters worldwidely.

Inter-trade department 2

Providing parts, accessories, consumptive materials etc.

Core team member:

SMT solutions

Henry Wang

15 years SMT experience, worked as SMT operateor, SMT engineer, SMT manager in BBK company, Coship etc., built many SMT factories, went to Siemens and YAMAHA for training. Well experience in SMT.

Bob Zhang

18 years SMT experience, worked as SMT engineer in Motorola(Tianjin China), France Tomson, production manager in Siemens Chips mounter company. Well experience in SMT. Executive member of IPC.

Jack Yu

20 years SMT experience, worked in FOXCONN for 12 years, worked as product manager for JUKI chip shooter for 5 years, well experienced in the management of electronic factory production

Robbin Hao

15 years SMT experience, worked as manager in Shenzhen Huawei and Japan Panasonic chip mounter, SMT technology expert

After-sale

Thomas Li

13 years SMT and DIP workshop management experience, well proficient in Samsung and Juki Chip mounter, providing after-sale services for aboard clients world-widely

Jobs Ding

3 years after-sale service experience in China, 4 years global after-sale service, well proficient in SMT equipments.

International trade

Shanny True

8 years inter trade experience, have been working on electronic field.

Well experience in consulting, exportation and after sale support.

Angela

6 years sale and after-sale experience, instant response to client for solving any questions.

Attended aboard fairs several times, have wealthy experience of foreign customer reception and Factory inspection. Once worked as interpreter for Siemens.
