Product Specifications
| Prod Model: |
6640 |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Switch Baseplate |
| Type: |
Solid |
| Chemistry: |
Organic Insulation |
| Material: |
Paper |
| Thermal Rating: |
F 155 |
| Maximum Voltage: |
10KV~20KV |
Product Description

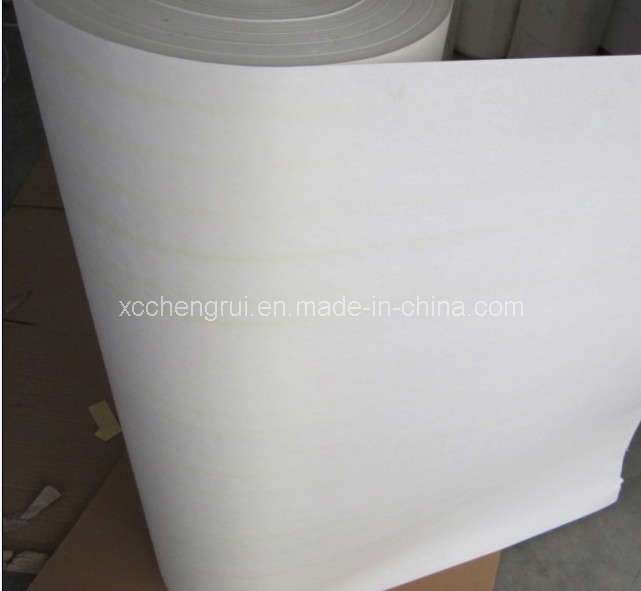

6640NMN----Nomex paper/Polyester film/Nomex paper flexible composite material is made of two layers of Du Pont Nomex paper with one layer of polyester film.
Applications: It is suitable for slot, interphase insulation and liner insulation in Class F special electric machinery.
Availability size of NMN Nomex paper:
Thickness(mm):0.15,0.17,0.2,0.22, 0.25,0.26 , 0.3,0.36,0.42, 0.48mm
Nominal width(mm):914mm
Tape: 15mm, 20mm, 25mm, 30mm, 50mm width.
Color: white with orange line or yellow line.
Technical Data
| Product Name | Properties | Value |
| NMN | Thickness(mm) | 0.15 | 0.17 | 0.2 | 0.22 | 0.24 |
| Tolerance(mm) | ±0.020 | ±0.020 | ±0.020 | ±0.020 | ±0.020 |
| Breakdown Voltage(kv) | ≥7 | ≥9 | ≥11 | ≥12 | ≥12 |
| Test method | IEC-626 |
| Product Name | Properties | Value |
| NMN | Thickness(mm) | 0.26 | 0.3 | 0.36 | 0.42 | 0.48 |
| Tolerance(mm) | ±0.020 | ±0.030 | ±0.030 | ±0.030 | ±0.030 |
| Breakdown Voltage(kv) | ≥13 | ≥16 | ≥20 | ≥22 | ≥23 |
| Test method | IEC-626 |
