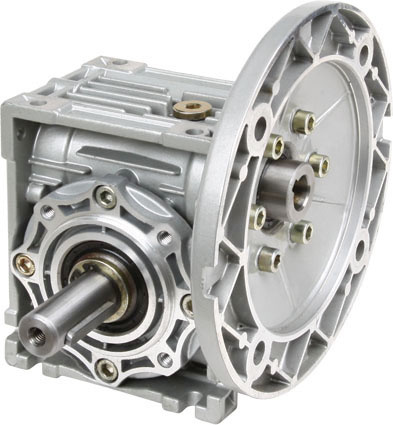

Nmrv-Vs Worm Gear Reducer

Name: Nmrv-Vs Worm Gear Reducer
Brand: China-Manufacturer-Directory.com
SKU: 678236045
Availability: InStock
Rating: 4.7 (122 reviews)

Supplier:	Taizhou Dongye Electric Motor Co., Ltd.
Price:	US $ 25/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	NMRV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	025-150
Colour:	Blue,Silver
Type:	Worm and Wormwheel
Manufacturing Method:	Rolling Gear
Toothed Portion Shape:	Worm

Product Description

Model No.: NMRV/NRV025, 030, 040, 050, 063, 075, 090, 110, 130 Reduction gear, worm gear, gear reducer Reduction gear Features: 1) High quality aluminum alloy die cast gearbox 2) High accuracy worm gear and worm shaft 3) Less noise and lower temperature increase 4) Easy mounting and linking, high efficiency 5) Power: 0.06 - 15kW 6) Output torque: 2.7 - 1, 760Nm 7) Transmission rate: 5 - 100 Inner packing: Carton Outer packing: Wooden case Reduction gear, worm gear, gear reducer

model	PAM IEC	N	M	P	7.5D	10D	15D	20D	25D	30D	40D	50D	60D	80D
NMRV030	63B5	95	115	140	11	11	11	11	11	11	11	/	/	/
NMRV030	63B14	60	75	90	11	11	11	11	11	11	11	/	/	/
NMRV030	56B5	80	100	120	9	9	9	9	9	9	9	9	9	9
NMRV030	56B14	50	65	80	9	9	9	9	9	9	9	9	9	9
NMRV040	71B5	110	130	160	14	14	14	14	14	14	14	/	/	/
NMRV040	71B14	70	85	105	14	14	14	14	14	14	14	/	/	/
NMRV040	63B5	95	115	140	11	11	11	11	11	11	11	11	11	11
NMRV040	63B14	60	75	90	11	11	11	11	11	11	11	11	11	11
NRMV050	90B5	130	165	200	19	19	19	19	19	/	/	/	/	/
NRMV050	80B14	80	100	120	19	19	19	19	19	/	/	/	/	/
NRMV050	71B5	110	130	160	14	14	14	14	14	14	14	14	14	14
NRMV050	71B14	70	85	105	14	14	14	14	14	14	14	14	14	14
NMRV063	90B5	130	165	200	24	24	24	24	24	24	/	/	/	/
NMRV063	90B14	95	115	140	24	24	24	24	24	24	/	/	/	/
NMRV063	80B5	130	165	200	19	19	19	19	19	19	19	19	/	/
NMRV063	80B14	80	100	120	19	19	19	19	19	19	19	19	/	/
NRMV075	100/112B5	180	215	250	28	28	28	/	/	/	/	/	/	/
NRMV075	100/112B14	110	130	160	28	28	28	/	/	/	/	/	/	/
NRMV075	90B5	130	165	200	24	24	24	24	24	24	24	/	/	/
NRMV075	90B14	95	115	140	24	24	24	24	24	24	24	/	/	/
NMRV090	100/112B5	180	215	250	/	/	/	/	24	24	24	24	24	24
NMRV090	100/112B14	110	130	160	/	/	/	/	24	24	24	24	24	24
NMRV090	90B5	130	165	200	/	/	/	/	/	/	/	19	19	19
NMRV090	90B14	95	115	140	/	/	/	/	/	/	/	19	19	19
