Hebei Juren Hoisting Machinery Co., Ltd. >> No Spark Explosion-Proof Chain Block (HSZ)

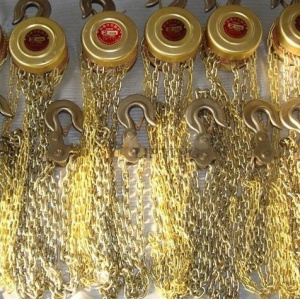

No Spark Explosion-Proof Chain Block (HSZ)

Name: No Spark Explosion-Proof Chain Block (HSZ)
Brand: China-Manufacturer-Directory.com
SKU: 673673141
Availability: InStock
Rating: 5 (69 reviews)

Supplier:	Hebei Juren Hoisting Machinery Co., Ltd.
Price:	US $ 740-1000/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	HSZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Source:	Hand Chain
Sling Type:	Chain
Application:	Small Crane
Certification:	ISO9001:2000

Product Description

Type: Explosion proof chain block, hand tools. Professional hand tools
Material: Copper alloy(al-cu, be-cu)
Colour: Golden or natuer
Surface treatment: Polished or electrostatic spraying
Specification: 0.5T~20T

1. No spak explosion proof chain block HSZ type take the aluminum bronze & beryllium bronze as roughcast and the shell of chain block adopts H62 copper alloy material.

2. No spak explosion proof chain block series apply to the flammable sites, such as chemical industry and sea works. The transmitting gear of the explosion-proof chain hoist reaches a very high abrasive resistance after high-heat treatment.

3. No spak explosion proof chain block can be widely used in Oil, petrifaction, oil station, oil depot, gas production, chemical industry, war industry, electric power and mines etc.

model		bx-Z-0.5	bx-Z-1	bx-Z-1.5	bx-Z-2	bx-Z-3	bx-Z-5	bx-Z-10	bx-Z-20
Capacity (t)		0.5	1	1.5	2	3	5	10	20
lifting height (m)		2.5	2.5	2.5	2.5	3	3	3	3
test load (t)		0.75	1.5	2.25	3	4.5	7.5	12.5	25
mini distance between hooks(mm)		270	270	368	444	486	616	700	1000
chain pull to lift full load(n)		225	309	343	314	343	383	392	392
no of load chain fall lines		1	1	1	2	2	2	4	8
dia of load chain (mm)		6	6	8	6	8	10	10	10
dimension (mm)	A	120	142	178	142	178	210	358	580
	B	108	122	139	122	139	162	162	189
	C	24	28	34	34	38	48	64	82
	D	120	142	178	142	178	210	210	210
Net weight (kg)		9.5	10	16	14	24	36	68	155
gross weight (kg)		12	13	20	17	28	45	83	193
package size(LWH)		28×21 ×17	30×24 ×18	34×29 ×20	33×25 ×19	38×30 ×20	45×35 ×24	62×50 ×28	70×46 ×75
Extra weight per meter extra lift (kg)		1.7	1.7	2.3	2.5	3.7	5.3	9.7	19.4

Hebei Juren Hoisting Machinery Co., Ltd. is located in the city of Baoding, which is very near to express way of Beijing to Shenzhen, and it's only 150 Kilometers to Tianjin Port.

Our company was established in 1992 with 100, 000 square meters area, more than 100 staff including 46 engineers and technicians.
In addtion, the company has the up-date equipments for testing. We mainly produce Electric Hoists, Hand chain block, Lever block, pulley, trolley, hydraulic carrier and hydraulic jack, etc.

Besides we can design and produce all kinds of hoists according to customers' demend. Our products not only owe good quality but also have fine service so that they have been exported to all places of the world, such as the USA, Australia, India, Germany and Poland, etc.

The company relies on the first-class management and the first-class technical team passing through the ISO9001 international quality system authentication. JuRen Hoisting Machinery Co. Ltd welcome each friend from all walks of life to visit our factory, to cooperate with us, together to create our good future!
