| Price: | US $ 7-8.5kilogram |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | CS200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grade Standard: | Industrial Grade |
| Classification: | Chemical Additives |
| Appearance: | Liquid |
| Color: | Colorless |
| Type: | Make up Solution, Brightener |
| Efficacy: | Electroplating |

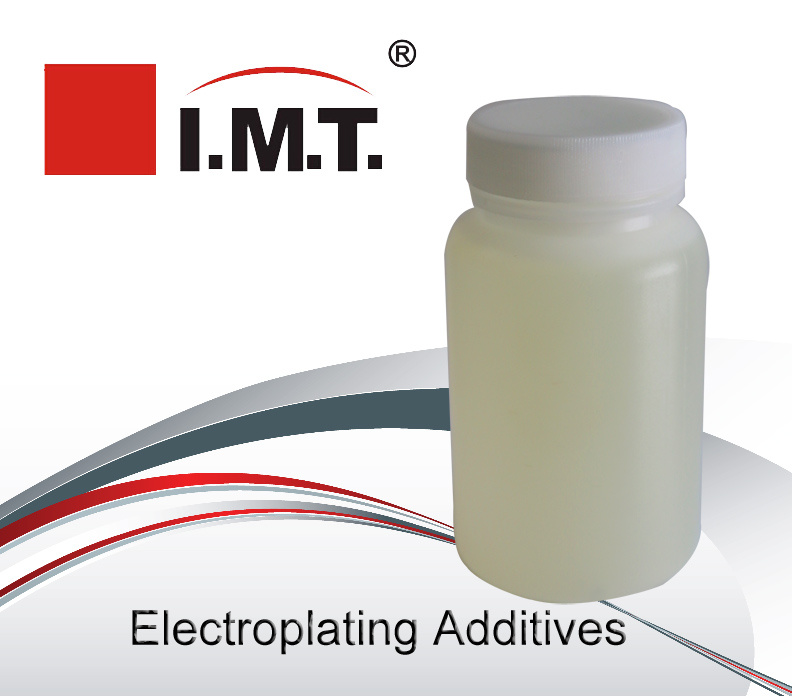

HN-CS200 Non-Cyanide Alkaline Copper Plating
Application and Advantages
1. The plating bath is completely cyanide-free and environment friendly.
2. The plating bath does not contain some heavy
metals and other SVHC, e.g. Pb, Cd, Hg, PBB,
PBDE, and meets RoHS requirement.
3. Iron, copper, bronze, steel, Zi/Al and Electroless Nickel can be plating, both rack/barrel plating are available.
4. It promotes a dense, fine-grained and flexible layer with good adhesion.
5. Copper layer directly turns black or oxidizes as different color, applicable to photo frame, light decoration, furniture, etc.
6. Disposal of waste becomes simple because the solution does not contain complexing agent.
7. The total cost will be reduced as copper anode is dissolved while electrolyzing, which reduces the make-up solution yield.
Bath composition and working condition:
Make up Part A HN-CS100A 350-450mL/L
Make up Part B HN-CS100B 80-120mL/L
Brightener HN-CS200 1-3mL /L
Replenisher HN-CS300 periodical replenish to
Maintain the concentration.
Cu content 3-5g/L
Temperature 50-60°C
pH 9-10
Anode current density 0.4-2.0A/dm2
Anode Electrolytic copper
Agitation even air agitation
