Non-Fried Instant Noodle Making Machine with High Output
Product Specifications
| Prod Model: |
many models |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Certificate: |
ISO9001 CE |
| Capacity: |
11000-230000bags/8h |
| Voltage: |
380V |
| Power: |
11-130kw |
| Material: |
Stainless Steel |
| Brand: |
Kingdoo |
| Roller Width: |
210-850mm |
Product Description

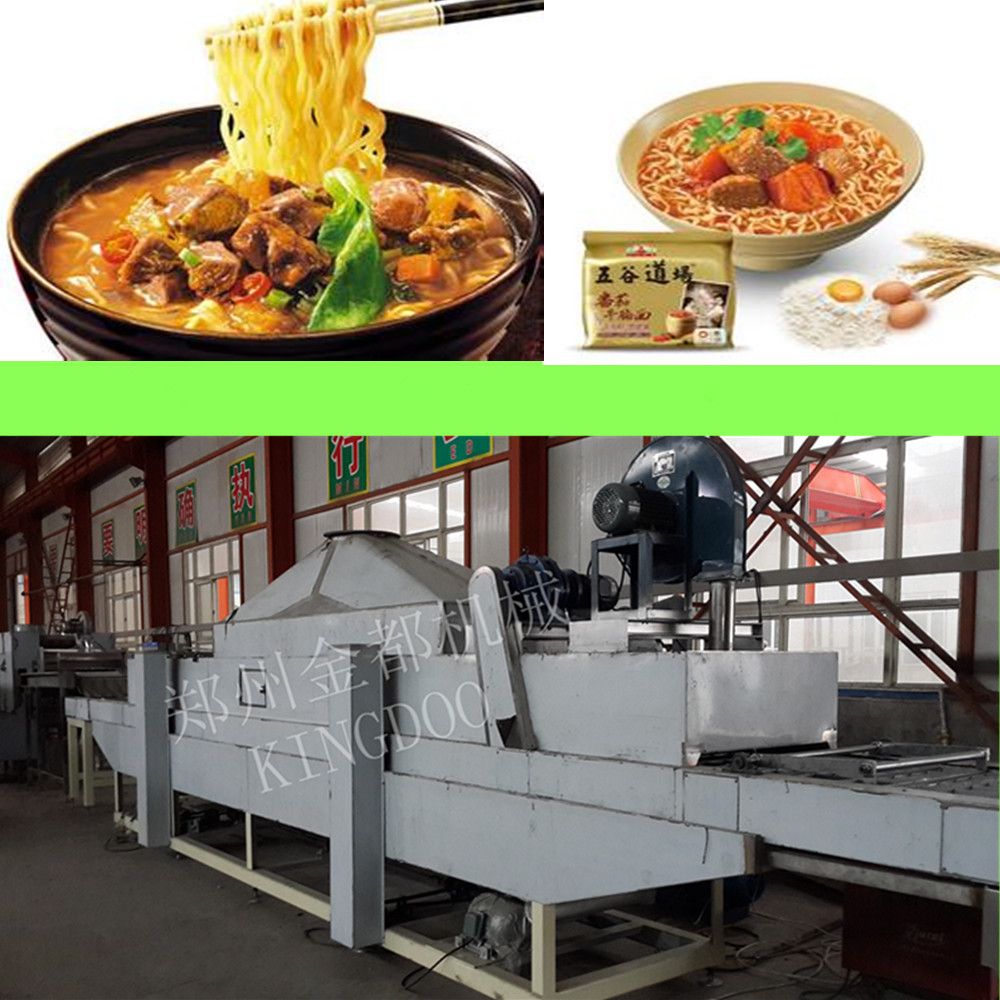

IntroductionInstant Non-fried Noodles Production Line with perfect technology,compact structure,original design and stable performance, is developed on the basis of advanced products and requirements in the world market.It realizes high automation,convenient operation, low energy and small floor space, which assures all working procedures from feeding flour to finished products can be accomplished once.The finished instant noodle have square and circular shape. The capacity is from 11000pics/8h to 230000 pics/8h. The weight of noodle cake is from 30g to 100g. Non-fried Instant Noodle Production Line The weight of noodle cake: 70g | Model | Capacity | Power | Roller width | Dimension(m) | worker |
| KDN-210-1 | 11000pics/8h | 11kw | 210mm | L32*W4*H3.5 | 3 |
| KDN-210-2 | 20000pics/8h | 20kw | 210mm | L37*W4*H3.5 | 3 |
| KDN-220 | 30000pics/8h | 35kw | 220mm | L61*W5*H5 | 3 |
| KDN-240 | 40000pics/8h | 50kw | 240mm | L66*W5*H5 | 4 |
| KDN-330 | 60000pics/8h | 56kw | 330mm | L74*W5*H5 | 4 |
| KDN-450 | 80000pics/8 h | 68kw | 450mm | L86 * W6* H5 | 4 |
| KDN-510 | 120000pics/8h | 83kw | 510mm | L109 *W7 *H5.5 | 5 |
| KDN-630 | 160000pics/8h | 106kw | 630mm | L126 *W7 * H5.5 | 5 |
| KDN-765 | 200000pics/8h | 114kw | 765mm | L131 *W7 * H5.5 | 6 |
| KDN-850 | 230000pics/8h | 125KW | 850mm | L141 *W7 *H5.5 | 6 |
| We can adjust the length of machine parts, accord your workshop size |
Flow chartFeeding-adding water-mixing-dough aging-pressing-steaming-cutting and dividing-drying-cooling-packing
The features of production line 1.Adopts high temperature steam drying, more healthier. 2.Large output, low energy consumption 3.High degree of automation, converter speed control, PLC control 4.Single-layer or multi-layer steaming machine (it's optional) 5.Enclosed cooling machine and saving energy, cold-hard alloy
cast roller,it's durable in use 6.Attractive in appearance,easy in operation,conform to the requirement of health 7.Rich nutrition, large dietary fiber 8. Low energy, low fat 9.Made of SUS and carbon steelAbout us

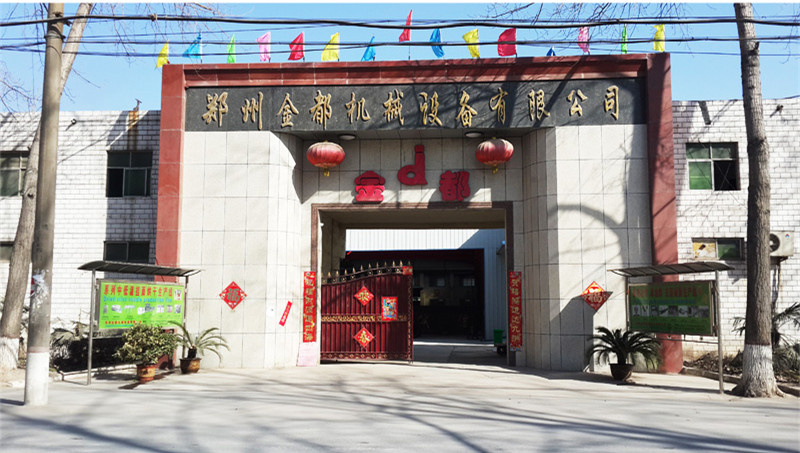

ZHENGZHOU KINGDOO MACHINERY is a professional company which produces food machineThe company has qualified enterprise identification with ISO9001 certification. The company
is specializing in series of dried stick noodle production line,fried&non-fried instant noodle
production line,hand made noodle production line, fresh noodle machine, pasta machine. Welcome to our factory and we sincerely want to cooperate with customers from all over the world.
Kingdoo Machinery Co., Ltd. In Zhengzhou, Henan Province is the production of food grain and oil machinery and equipment of the plant professional, food machinery equipment manufacturer. The company has strong technical force, advanced equipment, a domestic research and development. It relys on science and technology for over 20 years and improve the quality of after-sales service, continue to grow and develop with more advanced means of detection measures, the establishment of a more completed quality assurance system. The company is specializing in series of dried stick noodle production line, fried instant noodle production line, non-fried instant noodle production line, hand made noodle production line, fresh noodle machine, pasta machine and so on.
The Company Mission: Openness is basing on sincerity, quality is the first, best service for customers. Three Guarantees to products, responsible for the installation of the equipment and teach customers how to use machine. Kingdoo is willing to update technology, make higher quality and use better service for old and new users, and sincerely want to cooperate with customers from all over the world.
