Product Specifications
| Prod Model: |
MDx80A MTx80 MFx80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Rectifier Diode |
| Manufacturing Technology: |
Discrete Device |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
SMD |
Product Description
1. Original new, 150A 300V
2. MEDIUM POWER GENERAL USE NON-INSULATED TYPE
3. APPLICA: Welders
4. CE, ISO
|

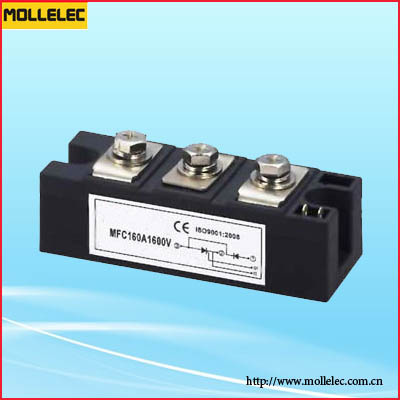

Hot Selling Non-insulation Power Module Rectifier |
Explanation
I GT ,V GT ,I H are all T A =25°C test data,others are all T A =T jm test data.
I 2 t=I 2 TSM ×t W /2:t W =Half sine wave current,when at 50Hz,I 2 t=0.005I 2 TSM (A 2 S)
When at 60Hz,I TSM (8.3ms)=I TSM (10ms)×1.066,T j =T jm I 2 t(8.3ms)=I 2 t(10ms)×0.943,T j =T jm |
|
Circuit |
|
|
Non-insulated Diode Modules
MDG(AA), MDY(AA) Welder Class |
|
Type |
I T(AV) |
V RRM |
V FM @I FM |
I RRM |
I F(RMS) |
I FSM |
R jc |
T jm |
Outline |
|
A |
V |
V |
A |
mA |
kA |
kA |
°C/W |
°C |
|
MDx80A |
80 |
400-2600 |
1.32 |
250 |
8 |
125 |
3.40 |
0.410 |
150 |
M10/M13 |
|
MDx100A |
100 |
400-2600 |
1.35 |
300 |
8 |
157 |
4.10 |
0.380 |
150 |
M10/M13 |
|
MDx150A |
150 |
400-2600 |
1.35 |
450 |
12 |
236 |
6.00 |
0.240 |
150 |
M11/M14 |
|
MDx200A |
200 |
400-2600 |
1.39 |
600 |
15 |
314 |
8.20 |
0.200 |
150 |
M11/M14 |
|
MDx250A |
250 |
400-2600 |
1.35 |
750 |
12 |
393 |
9.90 |
0.150 |
150 |
M13/M15 |
|
MDx300A |
300 |
400-2600 |
1.40 |
900 |
15 |
471 |
12.00 |
0.130 |
150 |
M13/M15 |
|
MDG, MDY Standard Class |
|
MDx80A |
80 |
400-2600 |
1.50 |
250 |
12 |
125 |
3.20 |
0.410 |
150 |
M10/M13 |
|
MDx100A |
100 |
400-2600 |
1.57 |
300 |
12 |
157 |
3.90 |
0.380 |
150 |
M10/M13 |
|
MDx150A |
150 |
400-2600 |
1.57 |
450 |
12 |
236 |
5.80 |
0.240 |
150 |
M11/M14 |
|
MDx200A |
200 |
400-2600 |
1.50 |
600 |
20 |
314 |
8.00 |
0.200 |
150 |
M11/M14 |
|
MDx250A |
250 |
400-2600 |
1.53 |
750 |
20 |
393 |
9.80 |
0.150 |
150 |
M13/M15 |
|
MDx300A |
300 |
400-2600 |
1.50 |
900 |
25 |
471 |
11.50 |
0.130 |
150 |
M13/M15 |
|
Non-insulated Thyristor Modules
MTG(AA), MTY(AA) Welder Class |
|
Type |
IT (AV) |
V RRM |
V FM @I FM |
I RRM |
I GT |
V GT |
I H |
d V /d t |
d i /d t |
IT MS |
R jc |
T jm |
Outline |
|
A |
V |
V |
A |
mA |
mA |
V |
mA |
V/μs |
A/μs |
A×10 3 |
°C/W |
°C |
|
MTx80 |
80 |
200-600 |
1.35 |
240 |
8 |
100 |
2.5 |
100 |
800 |
100 |
2.70 |
0.280 |
125 |
M10/M13 |
|
MTx100 |
100 |
200-600 |
1.40 |
300 |
8 |
100 |
2.5 |
100 |
800 |
100 |
3.40 |
0.250 |
125 |
M10/M13 |
|
MTx150 |
150 |
200-600 |
1.40 |
450 |
12 |
100 |
2.5 |
100 |
800 |
100 |
5.60 |
0.160 |
125 |
M11/M14 |
|
MTx200 |
200 |
200-600 |
1.39 |
600 |
12 |
150 |
2.5 |
100 |
800 |
100 |
7.00 |
0.130 |
125 |
M11/M14 |
|
MTx250 |
250 |
200-600 |
1.40 |
750 |
12 |
150 |
2.5 |
100 |
800 |
100 |
8.60 |
0.100 |
125 |
M12/M15 |
|
MTG, MTY Standard Class |
|
MTx80 |
80 |
800-2600 |
1.60 |
250 |
12 |
100 |
2.5 |
100 |
800 |
100 |
2.60 |
0.280 |
125 |
M10/M13 |
|
MTx100 |
100 |
800-2600 |
1.67 |
300 |
12 |
100 |
2.5 |
100 |
800 |
100 |
3.20 |
0.250 |
125 |
M10/M13 |
|
MTx150 |
150 |
800-2600 |
1.67 |
450 |
12 |
100 |
2.5 |
100 |
800 |
100 |
5.10 |
0.160 |
125 |
M11/M14 |
|
MTx200 |
200 |
800-2600 |
1.62 |
600 |
20 |
150 |
2.5 |
100 |
800 |
100 |
6.50 |
0.130 |
125 |
M11/M14 |
|
Non-Insulatated Thyristor-diode Modules
MFG(AA), MFY(AA) Welder Class |
|
|
