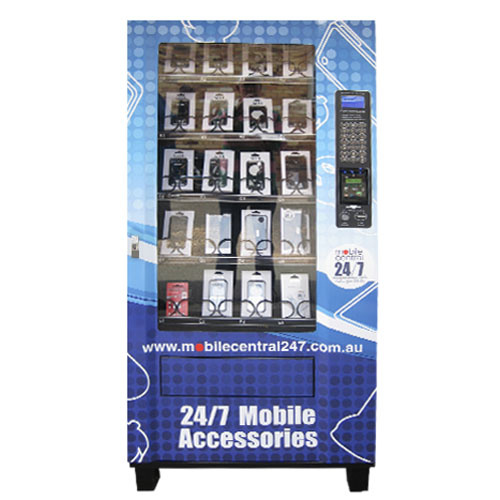

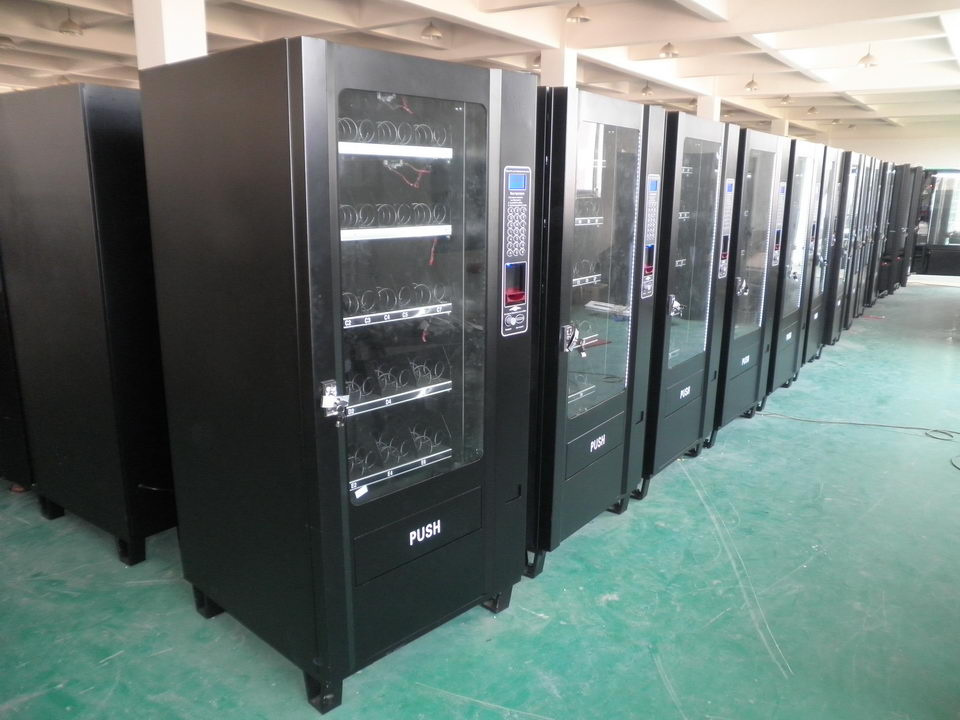

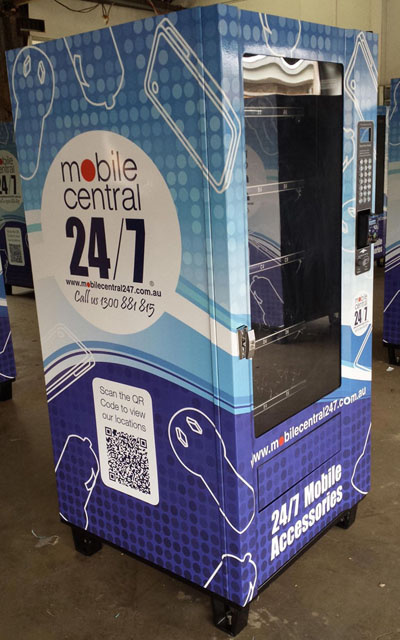

KM002 (KVM-528D) - Nonrefrigerated Versatile Vending Machine* Machine Size: 830mm wide x 880mm deep x1830mm high, 207Kgs
* Power Consumption: 220V/50HZ or 110V/60HZ, 60W(maximum)/40W(standby);
* Selections & Capacity: 28 selections, 392 items. (expandable to 36 selections);
* No Of Trays: 5 trays on default, and expandable to 6 trays;
* 45 Degree Tiltable Trays Easy for Replenishment;
* Tray Spacing is adjustable by each step of 15mm height;
* Label Holder fixed on the front end of each tray;
* LED String Lighting System, super bright and energy saving;
*
Product Drop Sensor Installed in Delivery Bin to Assure Product Delivery;
* Large LCD screen and intelligent Self-Diagnostic control system;
*
MDB and DEX ready, supports cashless payment system and telemetry system;
* Shipping Load: 12Units/20ft Container, 26Units/40ft Container
| KM002 - TRAY/COLUMN/SPRIAL CONFIG |
Column
Tray | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | Remarks |
| A | 21 / 21 | 15 / 15 | 15 / 15 | 11 / 11 | Double Space Columns
Dual Springs (21/15/11 coils) |
| B | 15 / 15 | 11 / 11 | 9 / 9 | 9 / 9 | Double Space Columns
Dual Springs (15/11/9 coils) |
| C | 21 | 21 | 15 | 15 | 11 | 11 | 9 | 9 | Single Space Columns
Single Spring (21/15/11/9 coils) |
| D | 21 | 21 | 15 | 15 | 11 | 11 | 9 | 9 | Single Space Columns
Single Spring (21/15/11/9 coils) |
| E | 21 / 21 | 15 / 15 | 15 / 15 | 11 / 11 | Double Space Columns
Dual Springs (21/15/11 coils) |
| Notes: | 1. The thickness and width of the located commodities should be less than the column width and spring pitch.
2. The machine has 5 trays as default, and expendable to 6 trays according to the height of the commodities.
3. The figures in the table represent the coil number of springs which is equivalent to the capacity of the columns. |
Established in 2004 and located in Shanghai, Panda Vending Limited is a professional and experienced supplier of vending machines, amusement machines, self-service equipment, and other intelligent commercial equipment. We have extensive and long-term cooperation with numerous manufacturers throughout China, and also we work as the Exclusive Export Agency of Hunan Kimma Intelligent Equipment Manufacture Co., Ltd., taking full charge of the sale of their snack/drink vending machines in overseas market.
Currently, we can offer bulk vending machines, snack/soda vending machines, coffee vending machines, ice vending machines, popcorn vending machines, various small items vending machines, kiddie rides, toy crane machines, body scales, shoe shining machines, ticket redemption machines, arcade game machines, ice cream machines, slush machines and many other automated commercial equipment.
Our products are strictly manufactured under the requirements of the relevant international regulations such as UL, CE and RoHS, and have been being sold to the worldwide markets, including Europe, America, Middle East, Southeast Asia, Australia and New Zealand. As always, we receive high praises from our clients for our competitive products and good service.
Our goal is to be an international vending & self-service equipments supplier worthy of trust, and we are dedicated to benefiting our customers by minimizing their cost with reasonable prices and maximizing their profits with trouble free machines.
Choose "Panda Vending", Choose a Most Valuable Business Partner!
