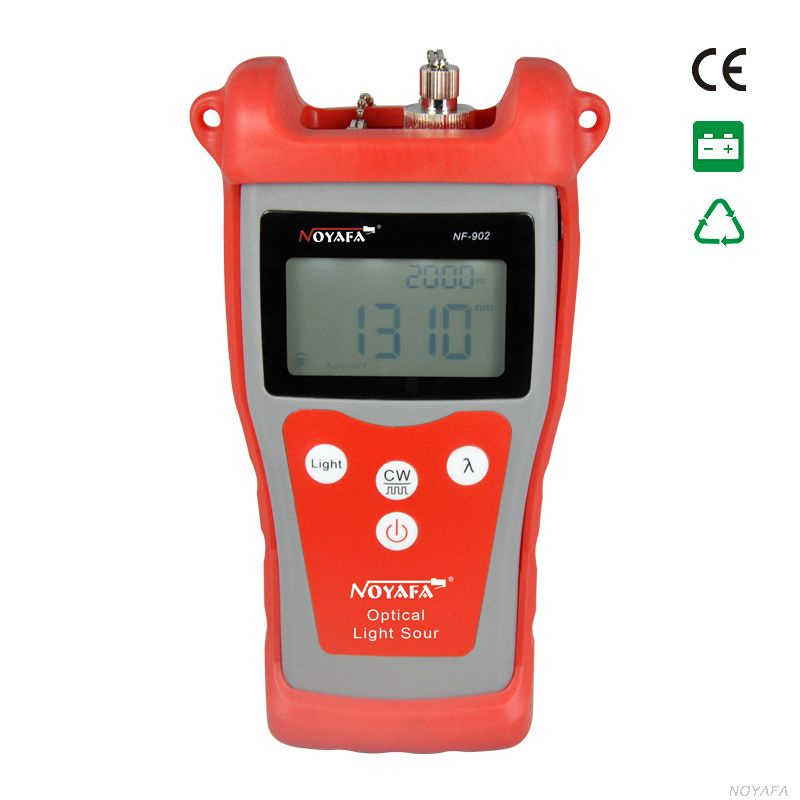

Product Specifications
| Prod Model: |
NF-902 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test Mode: |
Instant Test |
| Test Region: |
Forming Cable |
| Connectors: |
Fiber |
| Usage: |
Fiber Tester |
| Cable Type: |
Fiber |
| Power: |
9V |
Product Description
Main functions:
1. work with NF-906 optical power meter.
2. A fast,stable and cost effective test solution.
3. Provide 2 wavelengths output:1310,1550nm .
4. CW/ 270Hz,1KHz,2KHz modulation output.
5.FC/SC/ST general-purpose interface.
| Technical indexes: |
|
| Model | NF-902 |
| Power detecting range(dBm) | -70 ~ +10 |
| Wavelenth (nm) | 1310, 1550 |
| Emitter type | FP-LD |
| Output power | -7dBm |
| Modulation frequencies | CW/270Hz,1Hz,2Hz |
| Fiber Type | SM/MM |
| Optical connector | FC/SC/FC |
| Automatic shutdown time | 15mins |
| Battery serving time | 60h |
| Power supply | 9V |
Attention :
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
Standard carton:
Carton size: 51x33x51cm
Quantity : 20pcs/ ctn
Weight: 16kg
