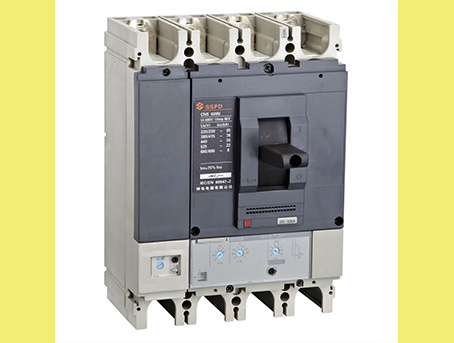

CNS series of MOULDED CASE CIRCUIT BREAKER(MCCB)
Application:
The rated insulation voltage is 750V, suitable for the circuit with AC 50Hz(60Hz), the rated working voltage of 690V and below, and the rated operating current up to 1600A, which will be used for distributing electrical energy. The breaker is equipped with overload, short circuit and under voltage protection device, so as to protect the circuit and power equipment from damage.
Compliance with standards:
GB14048.1: General rules
GB14048.2: Circuit Breakers
Applicable working environment:
1. The altitude is below 2000m;
2. The breakers can be used between -25 degrees Celsius and +70 degrees Celsius. When the temperature exceeds 40 degrees Celsius, the equipment can be used when derating;
3. It can withstand the impact from humid air, salt spray, oil mist and mold;
4. In places with no danger of explosion, no conductive dust, and no substance enough to corrode metal or damage the insulation;
5. In places without rain and snow erosion.
|
Item No. |
CNS630A |
Number of poles |
4P |
|
Rated Current: |
250A, 300A, 320A, 350A, 400A, 500A, 630A |
|
Rated insulation voltage(Ui): |
750V |
|
Rated impulse withstand voltage(Uimp): |
8kV |
|
Rated operational voltage (Ue): |
AC 50/60Hz, 690V |
|
Utilisation category: A |
Pollution degree: |
3 |
|
Protection: Overload protection and instantaneous protection. |
|
Auxiliaries |
indication contacts, voltage releases |
|
Dimensions(D X H X W): |
185 X 255 X 110 |
