(NT H. R. C) Low Voltage Fuse

Name: (NT H. R. C) Low Voltage Fuse
Brand: china-manufacturer-directory.com
SKU: 611344345
Availability: InStock
Rating: 4.3 (51 reviews)

Supplier:	Changcheng Electrical Group Zhejiang Technology Co., Ltd.
Price:	US $ 0.6/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,others

Product Specifications

Prod Model:	NT
Markets:	North America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Fuse
Arc-Extinguishing Medium:	Vacuum
Function:	Ovp(Overvoltage Protection)
Breaking Capacity:	High Voltage Circuit Breakers

Product Description

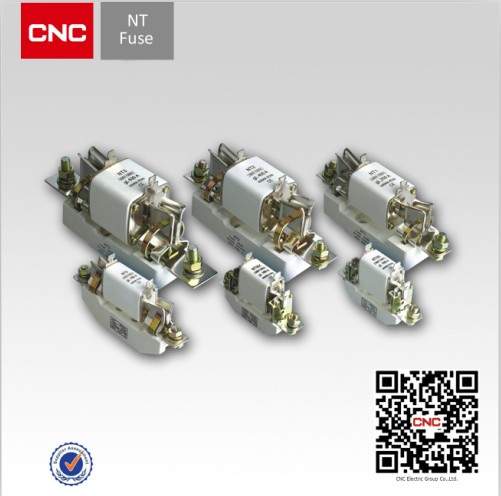

NT Type low voltage H. R. C. Fuse

General
1.1 NT low voltage H. R. C. Fuse has features of light in weight, small in size, low in power loss and high in breaking capacity.
This product has been widely used in overload and short circuit protection of electric installation.
1.2 This product conforms to IEC 269 standards with all of the rating at the world advanced level.
1.3 Rated breaking capacity:
500V-120KA, 660V-50KA

1. Rated current: 2, 4, 6, 10, 16, 20, 25, 32, 36, 40, 50, 63, 80, 100A
2. Rated voltager: 500, 660V
3. Rated power loss: 0.41, 0.62, 0.81, 1.08, 1.60, 1.81, 2.31, 3.07, 3.17, 4.05, 4.25, 4.70, 5.7, 7W
4. Weight: 0.15 Kg
5. Fuse Base: Rated current: 160A
Weight: 0.2 Kg
6. HS Code: 85362000
7. Standard: IEC 269
8. Productivity: 20, 000PCS/DAY
9. Min. Order: 5, 000PCS

Key Words: Fuse, Low Voltage Fuse, Protector, Protectors, Protective Device, Circuit Breaker Fuse, hrc fuse types

CNC GROUP is one of the China Top 500 Enterprises, specialized in manufacturing industrial electrical appliance, is a national large-scale enterprise integrated with R&D, manufacturing, trade and service, etc. CNC was founded in 1988, which became a nationwide non-regional enterprise group in 1997. It mainly deals in high-low voltage electrical equipment, whole set, instrument and meters, explosion-proof appliances, building electrical appliances, power transformers, with more than 100 product series and 20, 000 specifications. Meanwhile, its commercial fields also cover real estate, investment, energy, logistics, information and other industries.

CNC holds total assets with more than 5 billion RMB, and the plant area amounts to 0.25 million square meters, with over 10, 000 employees. CNC now owns nine holding companies, over 60 member enterprises, 1, 000 cooperative units, 600 domestic sales companies and 6 foreign representative offices. What's more, the marketing network covers not only domestic market but also 60 foreign countries and districts. The annual turnover reaches over 10 billion RMB on average, which ranked "China Top 500 Enterprises".

Over the years, CNC has been honored with "China Top 500 Enterprises", "China Top 500 Machinery Enterprises", "China Top 500 Manufacturing Enterprises", "China Top 100 Industrial Electrical Enterprises", "China Top 100 Growing Enterprises", "Advanced foreign exchange-earning enterprises", "Vice President of Branch Units of Low-voltage Electrical Appliances of China Chamber of Commerce for Import and Export of Machinery and Electronic Products", "Advanced Unit of Township Enterprise Management", etc...
CNC has obtained three management system certificates, including ISO9001, ISO14001, OHSMS18001. Products have obtained CCC, CE, CB SEMKO certificate. The trademark "CNC" has won "Chinese well-known trademark" for years. CNC also has won many other titles of honor as "National Inspection-free Product", "China Quality Faith and Consumer Trust Unit", "Advanced Unit in the National Brand Name Service", "National Model Enterprise of Quality and Integrity", etc.

CNC attaches great importance to R&D and improvement. The provincial technical center has been set up. CNC will keep on optimizing and upgrading the industrial structure with its active innovation thought of cooperation and development so as to provide customers with more perfectly overall solutions.

Fuse link					Fuse base
Type	Rated current (A)	Rated voltage (V)	Rated power loss (W)	Weight (kg)	Type	Rated current (A)	Weight (kg)
NT00C	2	500.600	0.41	0.15	Sist 101	160	0.2
	4		0.62
	6		0.81
	10		1.08
	16		1.60
	20		1.81
	25		2.31
	32		3.07
	36		3.17
	40		4.05
	50		4.25
	63		4.70
	80		5.70
	100		7
NT00	4	500.600	40.67	0.15	Sist 101	160	0.2
	6		0.89
	10		1.14
	16		1.65
	20		1.94
	25		2.50
	32		3.32
	36		3.56
	40		4.30
	50		4.5
	63		4.6
	80		6
	100	500	7.3
	125	500	7.6
	160	500.600	9.6
NT0	6	500.600	1.03	0.2	Sist 160	160	0.32
	10		1.42
	16		2.45
	20		2.36
	25		2.7
	32		3.74
	36		4.3
	40		4.7
	50		5.5
	63		6.9
	80		7.6
	100		8.9
	125	500	10.1
	160	500	15.2
NT1	80	500.600	6.2	0.36	Sist 201	250	0.8
	100		7.5
	125		10.2
	160		13
	200		15.2
	224	500	16.8
	250	500	18.3
NT2	125	500.600	9	0.65	Sist 401	400	1.2
	160		11.5
	200		15
	224		16.6
	250		18.4
	300		21
	315		19.2
	355		24.5
	400		24
NT3	315	500.600	21.7	0.85	Sist 601	630	1.5
	355		22.7
	400		26.8
	425		28.9
	500	500	32
	630	500	40.3
NT4	800	380	62	1.95	Sist 100	1000	3.45
