Product Specifications
| Prod Model: |
NT9005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Of Monitor: |
19 Inch |
| Warranty: |
One Year |
| MOQ: |
1 Piece |
| Monitor: |
TFT LCD |
| Certification: |
CE |
| Type: |
Self Service Machine |
Product Description

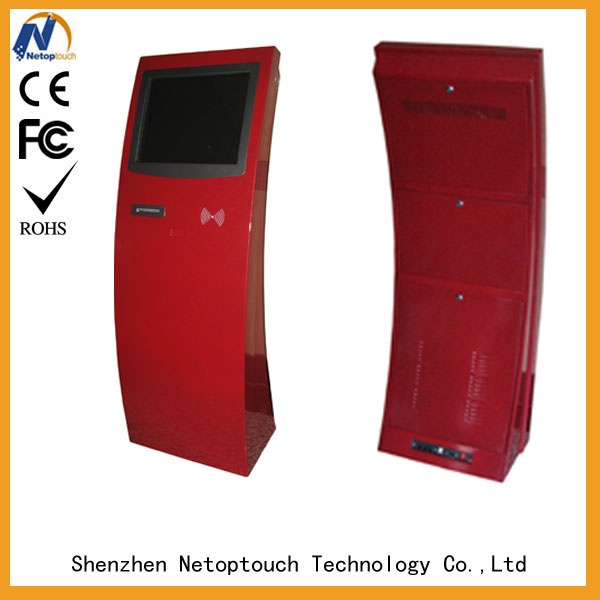

Touch screen all in one kiosk computer
Plused WiFi connection, this kiosk can connect to internet without cable.
Equipped with barcode scanner and Magnetic card swiper, installed in Mall/super market, custom could check goods' information and get detail information about their number card/VIP ID card.
More information as below. We can design many kiosks according to your requirement. Please feel free contact me.
Overview:
1. 19''durable steel all in one kiosk cabinet
2. 19''100% new Grade A+ TFT LCD monitor
3. 19''water proof, anti dust, anti-vandal touch screen
4. Powerful Embedded PC, integrated in a steel box
5. Operating system, internet access
6. WiFi connection, barcode scanner and Magnetic card swipe
Notes: The above components could be order seperately, you are welcome
To order monitor only, or cabinet only. More information, please feeel free
To contact me.
Detail Specification:
1) Touch Panel
A. Surface Acoustic Wave Touch screen or Resisstive or Infrared
B. Resolution: 4096*4096
C. Deviation of Error: ± <1.0%
D. Surface Hardness: Mohs' hardness rating of 7
E. Hitting Life Expectancy: 50, 000, 000 cycle times
F. Operating Force: Touch force less than 100g(adjust allowed)
G. Support software: Windows, Linux...
F. Transmittance: 85%~87%(Resistive touch panel), 92~95%(SAW and Infrared)
G. Response time: About 10ms
2) 19 inch 100% new LG or Samsung monitor, Grade A+ monitor
A. Resolution: 1280x1024
B. Brightness: 300CD/m2
C. Contrast ration: 1000: 1
D. Contact Bounce: 5ms
E. Ratio: 4: 3 or 16: 9
F. Lifelong: More than 50 000 hours
3) Embed Computer
A. CPU: Intel E3400 CPU, or Intel Atom D525 1.8GHz CPU
B. Low power&stable industrial mainboard, or Asrock G41 motherboard
C. Hard disk: Seagate 250GB(optional), SSD available.
D. RAM: Kingmax DDRIII 2GB(optional)
E. Ports: USB ports, RS-232 ports, ports for mouse, Keyboard
F. Load speaker, cooling fan, power supply, intergrate graphics card...
4) Mall kiosk Frame:
A. 1.5mm steel frame, 2.0mm CRS available.
B. Build in power control panel, and Hi-Fi-speaker.
C. RJ45 interface for internet access
5)Additional devices:
A. Magnetic card swiper
B. WiFi connection
C. 3D multi-line barcode scanner
The following devices are available:
1. Metal keyboard with touch pad or traceball, digital keyboard with 16 keys
2. Bluetooth connection, 3G modem, GPRS, WiFi
3. Control System(CPU / memory / hard disk)
4. Card Reader: RFID card reader, Non touch card reader, IC card reader
5. High quality digital camera, web camera
6. Mini thermal printer, ticket printer
You are welcome to require to add one of the above devices, or some of the above devices or all of the above device.
Test Process:
Before we send the kiosk to you, in order to make sure the kiosk run well after you get it, we will test to run it with not less than 24 hours for each kiosk.
Payment Terms:
T/T, L/C, Western Union, Paypal, Escrow, Money gram acceptable.
Packing:
There are 5 layers total for kiosk, the first one is antistatic film, the 2ND is foam, the 3rd is carton box, and last one is wooden case for exporting.
Aftersale service:
1. One year warranty for the whole machine.
2. You are welcome to contact us via online contact information any time you like, we will back to you as soon as we can.
