Product Specifications
| Prod Model: |
SJ/FM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
Torque Motor |
| Speed: |
High Speed |
| Type: |
PE Film Blowing Machine |
| Certification: |
ISO9001:2008 |
| Automation: |
Automatic |
| Raw Material: |
PE |
| Computerized: |
Computerized |
Product Description

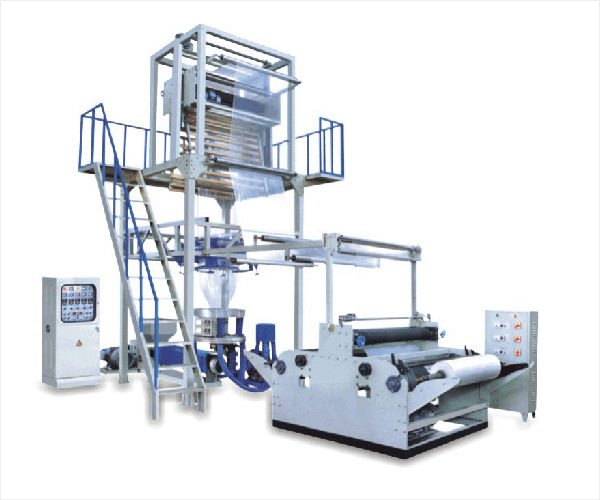

This film blowing machine's features
The cylinders and the screw stems of the extruder are made from high quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring. Double-rolling and double-cutting coiling unit adopts torque motor to motor to keep proper tension and make even and roll-changing easy.
Usage:
It is used for blowing various plastic film of low density polyethylene (LDPE), high density polyethylene (LDPE) and liner low density polyethylene (LLDPE) etc., which are widely used for packing liquid, industrial products, garments and textile, etc.
Company information
We are machine manufacturer with a history of over 20 years.
Our main products include flexo printing machine, film blowing machine and bag making machine.
There are also other products such as flexible plate making machine, plastic crusher, granulator and vertical gusseting machine.
Our service
Product quality is guaranteed for one year.
Engineers are available to service machinery overseas.
Packing and shipping
In plastic film or wooden case.
Delivery date: 15days after receipt of down payment
|
Model |
SJ-55/FM800 |
SJ-50/FM1000 |
SJ-65/FM1200 |
SJ-80/FM1500 |
SJ-100/FM2000 |
|
Screw Diameter |
55mm |
60mm |
65mm |
80mm |
100mm |
|
L/D Ratio of screw |
L/D28:1 |
L/D28:1 |
L/D28:1 |
L/D28:1 |
L/D28:1 |
|
Screw Speed |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
|
Max Output |
50kg/h |
650kg/h |
70kg/h |
86kg/h |
140kg/h |
|
Power of Main Motor |
15kw |
18.5kw |
22kw |
30kw |
37kw |
|
Specification of Die Head |
100-150mm |
100-180mm |
120-220mm |
150-300mm |
500mm |
|
Rotational Mode of Machine Head |
Contnuous Rotation |
Contnuous Rotation |
Contnuous Rotation |
Contnuous Rotation |
Contnuous Rotation |
|
Single-side Thickness of Film |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
|
Max.Folding Width of Film |
800mm |
1000mm |
1200mm |
1500mm |
2000mm |
|
Gross Power |
26kw |
30kw |
42kw |
56kw |
88kw |
|
Weight of Machine |
2300kg |
3000kg |
3800kg |
4600kg |
6000kg |
|
Overall Dimension(L*W*H)(mm) |
6000*2000*4000 |
6500*2200*4500 |
6800*2400*4800 |
7000*2700*5500 |
8000*3200*7600 |
