Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
30 Days |
| Usage: |
Door/Window |
| Type: |
270?? Hinge |
| Closed Mode: |
Sec Force Hinge |
| Arm Body Type: |
Slide |
Product Description

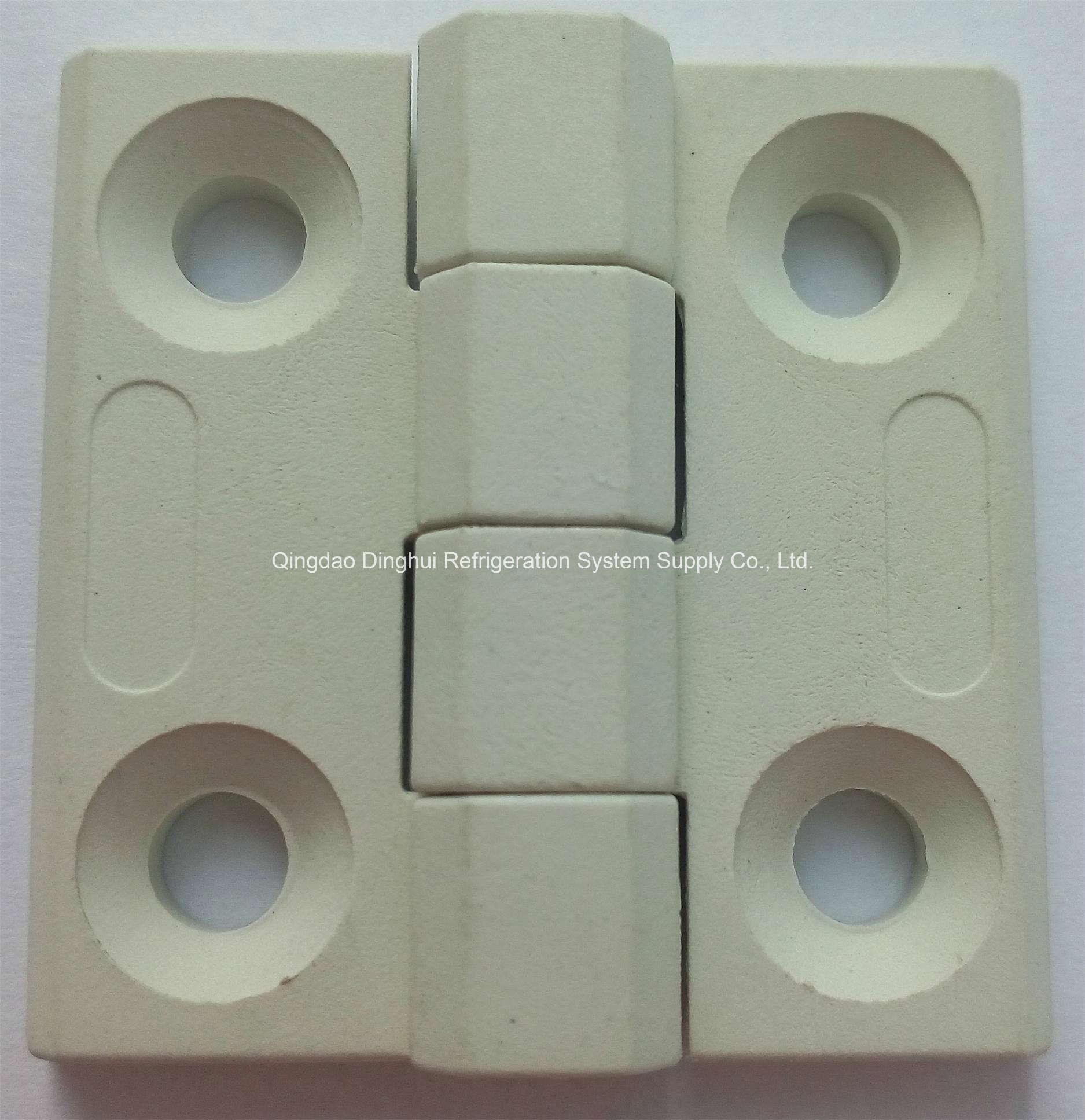

1.Material
Glass-fibre reinforced polyamide based (PA)
SUPER- technopolymer. Resistant to solvents, oils, greases and other chemical agents.
2.Working temperature range: -30ºC ~ 140ºC.
3.RoHS comply.
4.The max static load is the value above which the material may break, thus prejudicing the hinge functionality use.
Axial stress,max static load Sa
[N]:1900
Radial stress,max static load Sr [N]:1900
90° angled stress, max static load S90 [N]: 1280
5. UV protection,shall not brittle under sunlight.
6.Max openning angle: 270°
7.The color code of the nylon material is: 11-606W
Qingdao Dinghui Refrigeration System Supply Co., Ltd specializes in research, development, production and sales of refrigeration products and components.
We endeavor to produce high quality Liquid Receiver, Oil spearator, Sight Glass, Hinge, Roller, Condenser, Fan motor, various valves for air conditioning. Our products adopt the advanced international technology, utilizing high precision special machine tools for its processing. We will always provide high quality service, premium products, and excellent after-sales services for new and old customers.
We warmly welcome all interested domestic and overseas refrigeration producers or dealers to contact us for business negotiations and cooperation.
