Product Specifications
| Prod Model: |
BM-GF(BM-PGE) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Gauge Flow Meter & Oxygen Pressure Gauges |
| Feature: |
Western Style |
| Type: |
Pneumatic Fittings |
Product Description

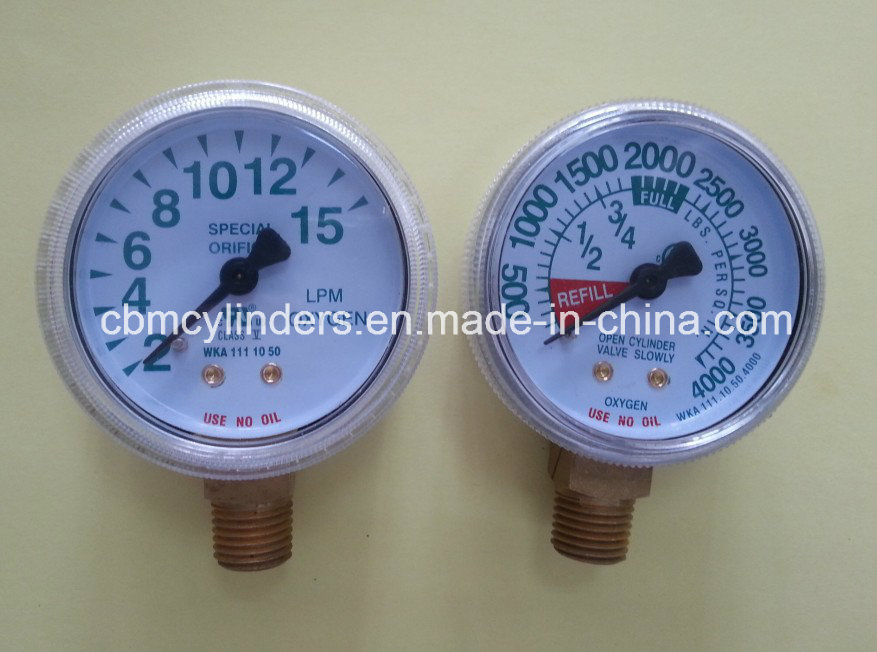

O2 Gauge Flow Meter & Oxygen Pressure Gauges, Oxygen Pressure Gauge for oxygen gas regulators.
Specifications:
-2" or 2.5" pressure gauge;
-Steel case;
-0-6000Psi;
-Snap on plastic;
-Redial;
-USE NO OIL.
*NOTE: Specifications can be subject to our customers' kind requirements.
Applications:
-For equipment and plants for welding, cutting and allied processes;
-Application for oxygen and acetylene;
-Increased safety requirements.
Special features:
-Safety and reliable;
-Nominal size 50 and 63mm;
-Scale ranges up to 0...400 bar;
-Accuracy: 2.5, 1.6
-Permissible temperature: When temperature departure is ± 5° C, additional temperature error is not more than 0.4%° C/10° C;
-Standard version:
Process connection: Cu-alloy, Radial and axial
G 1/4 B (male), 14 mm flats;
-Pressure element: Cu-alloy,
≤ 100 bar: C-type
> 100 bar: Helical type
-Movement: Cu-alloy
-Dial: Aluminium, white, with pointer stop pin;
-Black or red lettering;
-Case: Steel case;
-Design for window: Screw in Polycarbonate.
*NOTES:
-There are radial and axial for selecting
-Thread: NPT, BSP, BSPT etc...
Oxygen gauge is connected with oxygen regulator, used to measure the high pressured gas discharged from the oxygen cylinder. Should you have any questions or some more info needed on our pressure gauges, & related gas products, pls feel free to contact us!
