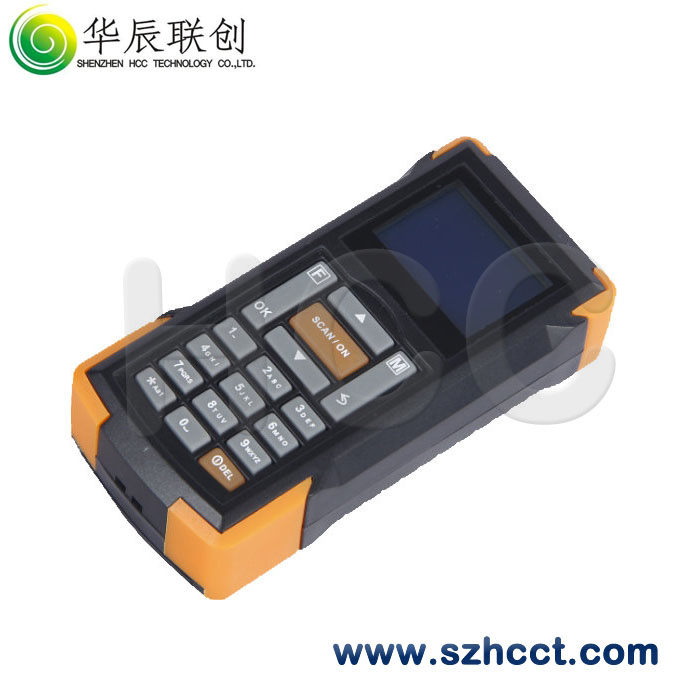

Obm-747 Wireless Barcode Data Collector
Product Specifications
| Prod Model: |
OBM747 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
102mm&Times; 46mm&Times; 28mm |
Product Description
Features:
*Multi-functional--Covers the full circulation of commodity: Receipt, dispatch, inventory count and damage/loss report
*Simple--Distinct function area for fast switch and straightforward operation
*Efficient--Report is automatically generated right after inventory count, 90% savings on time, manpower and administrative overhead
*Safe--Supports real-time, storage and batch transmission
*Wireless--Adopts mainstream wireless and storage technology, free from cables
*Compact--Cell phone size, easy to carry with comfortable feel
Functional menu:
*Function Switch
Long press to enter Menu-batch transmission / data query / memory clearance / system setting / factory setting / version
Short press to switch among CHECKIN / CHECKOUT / INVENTORYING / LOSS REPORT
*Mode Switch
Switch among different working modes as REAL-TIME, STORAGE and CORDESS SCANNER
*Scan / On
Long press to turn on the handheld stock check machine
Short press to scan a barcode
*OK
Confirm an operation
*Cancel
Cancel an operation or return to last menu
*Off / Delete
Long press to shutdown the check machine
Short press to delete a record or backspace
*Up / Down
Search records or jump line in input states
*Input Switch
Long press to select symbols
Short press to switch among number, alphabet, capital letter and small letter
*Key 1 and key 0
Output '-'and space respectively in alphabet mode
|
Bluetooth |
|
|
Working frequency |
ISM Band, 2.400 to 2.483MHz |
|
Modulation |
GFSK |
|
Transmission rate |
2Mbps |
|
Power |
Bluetooth Class2, 3dBm |
|
Specification |
Compatible with Bluetooth 2.0 specifications |
|
Coverage |
Visual straight distance 30 meters (Max. ) |
|
Antenna |
Built-in PCB antenna |
|
433MHz |
|
|
Operating frequency |
ISM Band, 433MHz |
|
Modulation |
GFSK |
|
Transmission rate |
200Kbps |
|
Maximum power |
10dBm |
|
Coverage |
Visual straight distance 30 meters(Max. ) |
|
Antenna |
Built-in antenna |
Performance parameters:
|
Light source |
650nm Visible laser diode |
|
Scan pattern |
Mongline scan |
|
Scan rate |
48± 2times/ sec |
|
Scan precision |
3mil |
|
Scan width |
20mm@scan window, 220mm@200mm |
|
Scan depth of field |
0-250mm (0.33mm. PCS 90%) |
|
Corner |
30° |
|
Elevation |
65° |
|
Deflection |
55° |
|
Print contrast |
30% UPC/EAN 100% |
|
Scan mode |
Continuous scanning/ one by one scanning |
|
Error rate |
1/5 million |
|
Alert mode |
Buzzer, LCD indicator |
|
Decoding capacity |
EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc. |
|
Interface of the receptor |
USB, RS232, PS2 |
Electricity Parameter
|
Receptor voltage |
USB: 5V |
|
Receptor working current |
25mA |
|
Check machine battery |
Built-in rechargeable Li-battery (3.7V, 1900mAh) |
|
Charge indicator |
LCD |
|
Check machine working current |
96mA |
|
Check machine static current |
46mA |
|
Laser safety |
Comply with National Level II Criteria for Laser Safety |
|
EMC |
CE & FCC DOC compliance |
Physics Parameter:
|
Storage capacity |
8M |
|
Menu key |
17 keys |
|
Receptor size |
52mm× 20mm× 10mm |
|
Check machine size |
102mm× 46mm× 28mm |
|
Material |
ABS |
|
Color |
grey & black, orange & black |
Environment Parameter:
|
Working temperature |
0º C-45º C |
|
Storage temperature |
-20º C-60º C |
|
Humidity |
5%-95% relative humidity(Non-condensing) |
|
Light levels |
Max. 5, 000 Lux |
