Product Specifications
| Prod Model: |
THY-XW |
| Markets: |
North America,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product Description:

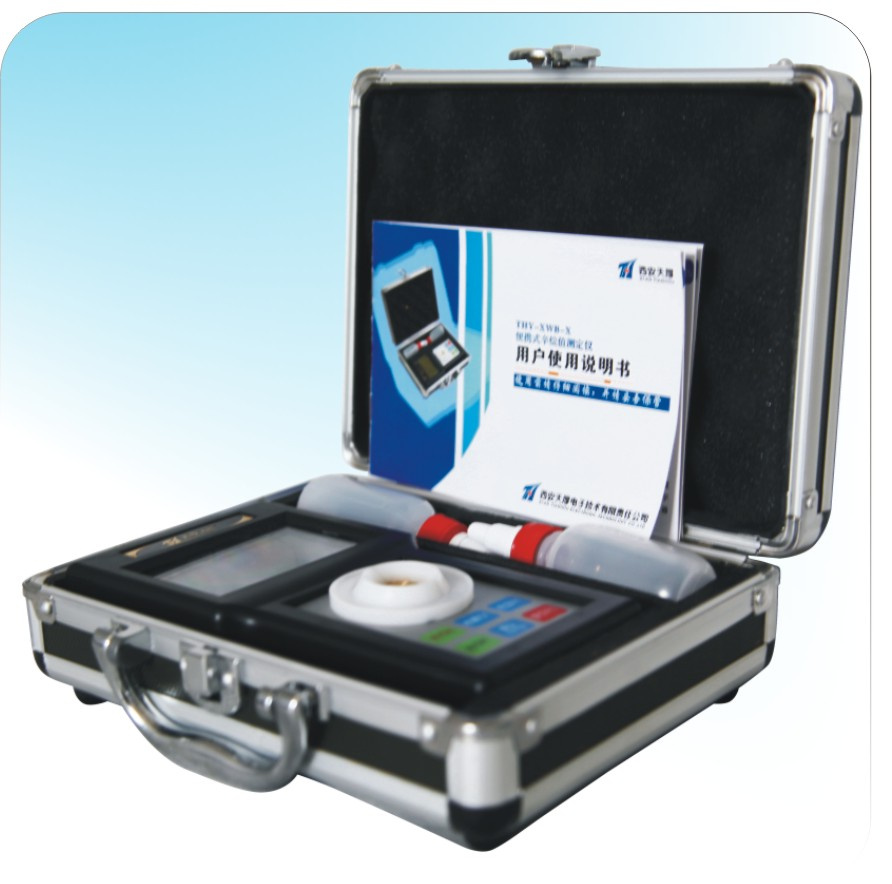

THY-XW portalbe octane analyzer is the new generation high-precision octane analyzer Xi'an Tianhou Electronic-Technology Co., Ltd developed. This product can rapidly detect the octane rating in gasoline. It has the advantages of small size, simple operation, good repetitiveness and fast test. THY-XW portable octane analyzer can be widely used for Refining &Chemical Company, petrochemical enterprises, oil depot, oil station, National Quality testing Department., etc.
Main Features: |
Technology Specifications: |
Results in less than 5 seconds
LCD display
Needs only 100mL of gasoline
Test sample not damaged in any way
Results traceable to official knock
engine laboratory
Battery operated
Measures all grades of unleaded gasoline
Unmatched reliability... totally solid state
Simple to use
Patented proven technology
Comes with briefcase-size carrying case |
Working temperature: -5ºC~+30 ºC
Measure time: 1~5s
Repeatability: ±3%
Weight: o.9 kg
Power: Direct-current 6 v
Size: 230*295*115mm |
USER' MANUAL:
1. open the Package box, put the instrument on the level ground, and connect the Sensor and the main engine;
2. wash the sensor use the Petroleum ether, make sure there is no substance, Precipitate and oil Film;
3. Push the key of "on", open the machine, if there is oil in the Sensor. the screen can show the result, please reuse Petroleum ether to wash and make sure clear;
4. Pour the oil into the sensor, until it is full;
5. The screen Renew the data every second, if the temperature is different from the out temperature, wait for 3 seconds, until it appears the same temperature, then write the result;
6. close the power, Pour-out the oil, use the Petroleum ether to wash the Sensor, the inspection is over.(the main engine is power off in two minutes.
ASSISTANT FUNCTION:
1. When Pour into Gasoline which know the Octane Value or sixth Alkene's Diesel oil sample, the instrument is testing, get the accrue data.
2. Push "mode" and "enter", the screen show "p" in the upper corner of the right.
3. Push "up" and "down", adjust the data to standard data.
4. Push "enter" make sure, amend is over.
Attention:
1. Except Gasoline and fuel oil, you can't pour into other oil in the Sensor.
2. when operating, the temperature should be -5ºC~+30 ºC. In winter, the instrument should keep 2 hours in the temperature -5ºC~+30 ºC, in order to the result is acuity.
3. Forbid use the instrument in the Strong Static electricity Environment, avoid Disturbing.
4. Use Petroleum ether wash the sensor, ensure there is no other substance: The oil which is poured into must be full. Or the result is not accurate.
5. when the Quantity of battery is Insufficient, the instrument show "B", it means the user should change the battery. install the 4 pieces of NO.5 Alkaline battery and ensure the "+","-" is correct.
6. push "up" can open the background light, push "down" can cancel the background light.
Applications:
For the present THY-XW portable octane analyzer can be applied to refining companies, petrochemical companies, oil depots, oil stations, gas stations, gasoline stations, the National Quality Supervision, Inspection Department., ect.
Founded in 1992, Xi'an Tianhou Filter Technology Co., Ltd, Tianhou Electronic Technology Co., Ltd(Tianhou for short), an integrated high-tech enterprise, which specializes in researching, developing, producing and saling Oil Quality Analyzer, Octane Analyzer and Diesel oil purifier. Our company has devoted to spreading the idea of lubricating Management and proactive maintenance for engine.
With the management concept of innovative consciousness as our lead, energy-saving as our duty, we has dedicated to the field of detecting oil and purifying diesel oil, and got fruitful achievements over the past years.
The technical index of THY-series Oil Quality Analyzer we researched and developed has beyond international advanced level, and made up the gap in China. The invention in China basically solved the device management problem of 'when to change the oil', and enabled users to change the lube oil based on its quality not on a regular time basis.
The "Janenope" Diesel oil purifiers series, jointly developed by United States pre-filter Boston Co., Ltd and tianhou, were widely applied to oil fields, fishing ports, various diesel vehicles and construction machinery, etc., This product adopts multi-level integrated filtering technology, which can draw off more than 95% water in diesel fuel and improve filtering rating greatly. And has ever caused a stir in the filed of energy conservation and emissions reduction. Not only had the invention made a major break through in the respects of diesel oil purifying technology, but enabled us to protect engine effectively, cut down maintenance costs, lower exhaust emissions.
Tianhou has developed five series of more than 30 kinds of products, and obtained 172 patents and more than 20 honors from Goverment and Authoritative organization, has become partner of National Large internal combustion engine manufacturer, such as Yuchai Group and Weichai Power.
