ODM/OEM WA719 indoor Wifi Modem Router Network AP with 802.11b/g/n

Name: ODM/OEM WA719 indoor Wifi Modem Router Network AP with 802.11b/g/n
Brand: china-manufacturer-directory.com
SKU: 700692552
Availability: InStock
Rating: 5 (52 reviews)

Supplier:	Hangzhou Dunchong Technologies Co., Ltd.
Price:	US $ 1-599/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WR713
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Customize:	Software and Hardware
Added Services:	Customized ODM Design
Radio Frequency:	100MW-500MW
Delivery Period:	45 Days
Installation:	Hanging; Desktop
Antenna:	2*2 Mimo
Chip:	Qualcomm Atheros 9344 Series
Power Supply:	DC48V or Poe
Type:	WiFi Module
Work Mode:	AP+STA
WiFi Antenna Type:	External
Transmission Rate:	>200Mbps
Color:	Black
Certification:	CE
Voltage:	48V DC
Antenna Gain:	5dBi

Product Description

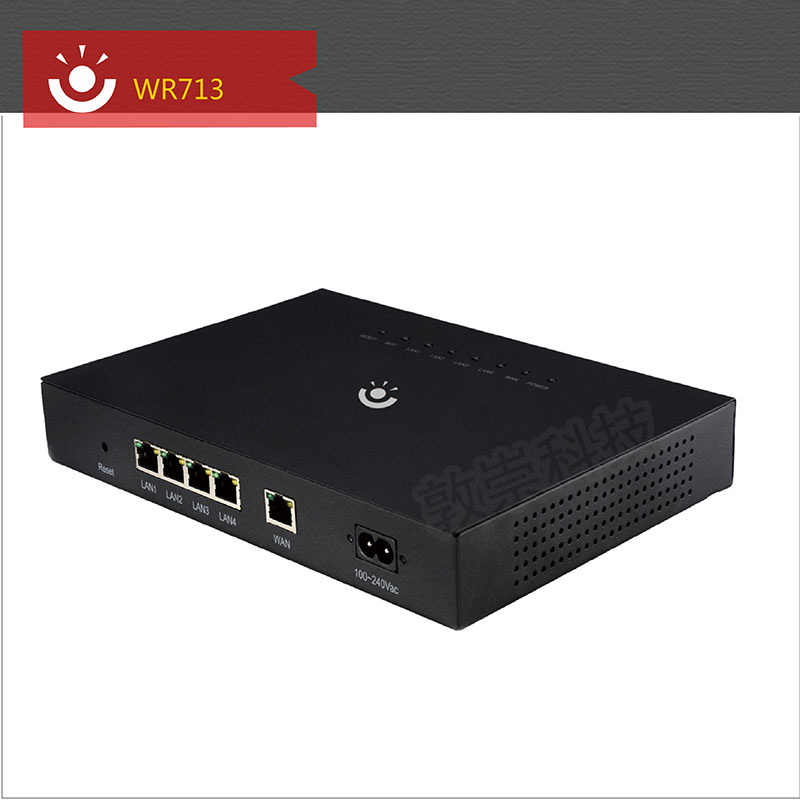

WR713

WR713AP wireless access point is a single-band and multimode indoor wireless access equipment with 802.11n. It has 2 external MIMO antennas; compact and beautiful appearance; and multi flexible installation methods: wall hanging, desktop installation, etc. WR713AP works in the 2.4GHz band, and it supports IEEE802.11b, IEEE802.11g, and IEEE802.11n three models.

1.        Perfect performance and the best wireless network TCO
2.        STBC (Space Time Block Code) and LDPC (Low Density Parity Check Code)
3.        Provide Gigabit Ethernet interface cable connection
4.        Support Fat/Fit modes
5.        Provide local forward function
6.        Provide only 11n access function
7.        Support WIDS/WIPS
8.        Support Chinese SSID
9.        Support uplink integrity

Property	Specification
CPU	Atheros AR9342, 560MHz
Memory	DDR2 64MB
FLASH	16MB
Mass	1.4kg
Dimensions (LWH)	23816837 mm
10/100/1000M Ethernet Access	1 WAN Port;4 LAN Ports
Extended Interface	Internal USB2.0
Local Power	220V AC, Internal 200VAC Battery
Console Port	4 Pin; Baud Rate 115200
Antenna	2 External MIMO Antennas(2.4GHz/5dBi)
Working Band	802.11b/g/n: 2.4GHz~2.483GHz
Modulation	OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps DSSS:DBPSK@1Mbps,DQPSK@2Mbps,[email protected]/11Mbps MIMO-OFDM : BPSK,QPSK,16QAM and 64QAM
Radio Power	Maximum 17dBm
Adjustable Power	1dBm
Reset	Yes
Working Temperature	-10 ºC~55ºC
Working Humidity	5%~95% (no condensation)
Storage Temperature	-40ºC~70ºC
Storage Humidity	5%~ 95% (no condensation)
Power Consumption	< 8W
MTBF	> 250000H
