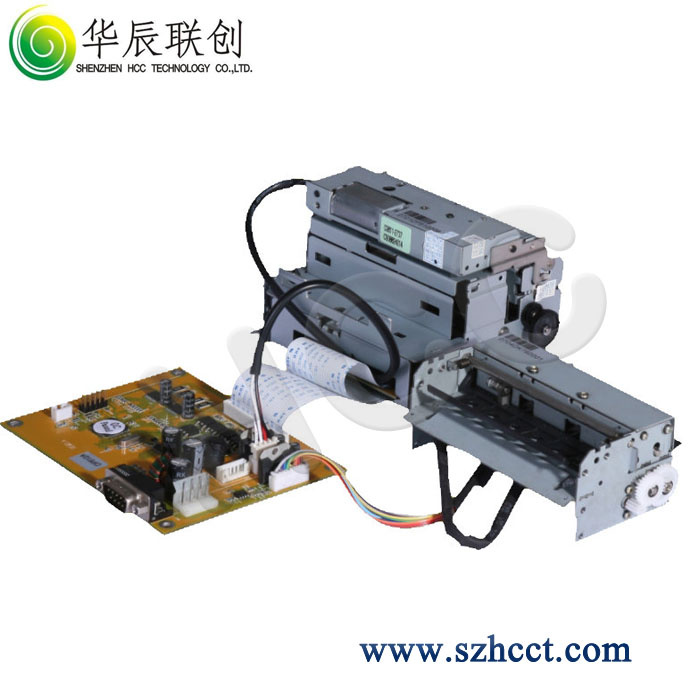

OEM Kiosk 76mm DOT Matrix Printer Module/Engine for Passbook Printer
Product Specifications
| Prod Model: |
DP512A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
12months |
| After-Sales Service: |
Yes |
| Shipment: |
6-7days |
| Paper Width: |
76mm±0.5mm |
| Certification: |
CCC |
Product Description
Features
*STAR512IIIA original print head
*Black mark position function
*High speed print to 4.1 lines/sec
| Print | Printing Method | 9 Pin Parallel Bidirectional Printing |
| Printing Speed | 4.1 line/sec at 40CPL |
| Printing Density | 42cpl-210(Full dot)/420(half dot) |
| 40cpl-200(Full dot)/400(half dot) |
| Effective Printing Width | 42cpl-42(7x7)/35(5x7) |
| 40cpl-40(7x7)/33(5x7) |
| Character | IBM Character Set II | 7x7 dotor 5 x7 dot |
| International Standard I,II Class Chinese Font | 24×24dot3.00(width)×3.00(height)mm |
| Paper Spec | Paper Type | Normal paper/Pressure-sensitive paper |
| Paper Width | 76mm±0.5mm |
| Paper Roll Diameter | Max:80mm |
| Roll Core Inner Diameter | 10mm(min.) |
| Paper Thickness | Normal paper:1 sheet 0.06mm to 0.085 mm
Pressure-sensitive paper: 0.05 to 0.08 mm {0.002 to 0.0031"} (thickness of one sheet);combined, total thickness must be 0.2 mm {0.008"} or less |
| Reliability | MCBF | 900million lines |
| Auto Cutter | 10million cuts |
| Emulation | ESC/POS |
| Driver | Win 2000/2003/XP/Vista/Win 7 |
| Sensor | Paper Near End Sensor/Paper End Sensor |
| Interface | RS-232 |
| Power Supply (Adapter) | DC 24V, 2A |
| Auto cutter | Type | Sliding type |
| Life | 10million cuts |
| Cutting Method | Full /Partial cut |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
