Product Specifications
| Prod Model: |
PL-WR300-A1 |
| Markets: |
North America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
| Product: |
Wireless WiFi Router |
| Protocol: |
IEEE802.11b/G/N |
| Solution: |
Mt7620A |
| Rate: |
300Mbps |
| Openwrt: |
Yes |
| Port: |
1 Wan 4 LAN 1 USB |

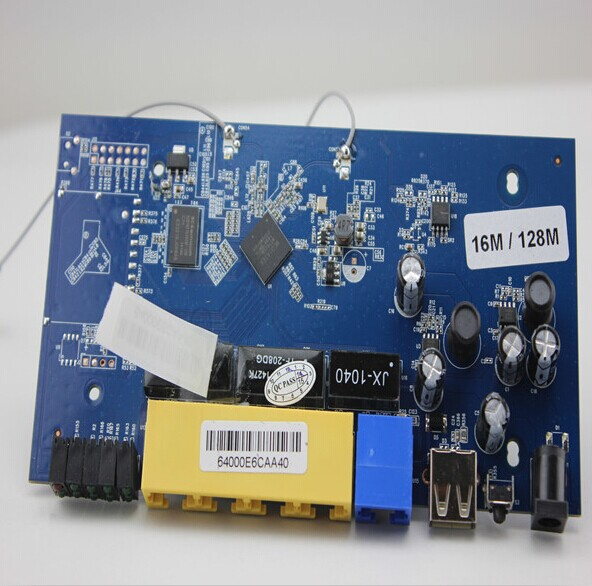

| Flash: |
16MB |
| RAM: |
128MB |
| Antenna: |
2*5dBi |
| Multi Ssid: |
Support |
| Type: |
Wireless |
| Network Site: |
Border Router |
| Application: |
Soho |
| Firewall: |
Firewall |
| Transfer Rate: |
10/100Mbps |
| Ports: |
≤4 |
Product Description
PL-WR300-A1 is MT7620a chip solution OpenWrt wifi router.Wireless speed up to 300Mbps wtih two external 5dBi antennas output strong signal and wide coverage area. PL-WR300-A1 provides a simple configuration interface enables users configure very easy. PL-WR300-A1 is fully complied with IEEE 802.11n wifi standard and compatible with all IEEE 802.11b/g/n standard devices.
PL-WR300-A1 with WISP function enables users access to the ISP's wifi hotspots.Also provides powerful online monitor function and supports URL filter and MAC filter. Meanwhile,it supports WDS function which can repeat and amplify wireless signals so as to enlarge network coverage area, and also truly supports UPnP and WMM to make your audio and video smoother.
PL-WR300-A1 with QoS function capable efficiently distribute the downloading rate for the clients. Additionally,with super compatibility,the router can break the access limits in some areas so that multiple computers can share the Internet access. What's more, the device integrates the functions of router.Wifi AP,four-port switch and firewall.
PL-WR300-A1 Wireless N WiFi Router combined the wired/wireless routers functions,complies IEEE 802.11n standard with wireless transmission speed up to 300Mbps also with 1*WAN port ,4*10/100Mbps ports to achieve the most effective data transmission.
Feature
Support PPPoE, Dynamic IP, and static IP broadband functions
Support UPnP, DDNS, static rout ing, VPN Pass-through
Support virtual server, special application and DMZ host
Support SSID broadcast control and MAC access control list
Supports 64/128/152-bit WEP,complies 128 bit WPA (TKIP/AES),
Support MIC, IV Expansion, shared Key Authentication, IEEE 802.1X
Built-in firewall features IP, MAC, URL filtering
Built-in DHCP server with automatic dynamic IP address distribution
Openwrt support,support 2nd development
Specs
Standards | IEEE 802.11n IEEE 802.11g, IEEE 802.11b |
| Wireless Signal Rates | 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
| Frequency Range | 2.4-2.4835GHz |
| Wireless Transmit Power | 20dBm(Max) |
| Interface | 1 *10/100M WAN Port,4*10/100M LAN port |
| Antenna | 2 external antenna (2dBi) |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Receiver Sensitivity | 270M: -68dBm@10% PER
130M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER |
| Wireless Mode | AP Mode
Multi-SSID Mode
AP Client Mode
Repeater Mode (WDS / Universal )
AP+ Bridge mode |
| Environment |
| Operating temperature | 0oC~40oC |
| Storage temperature | -40oC~70oC |
| Relative humidity | 10% ~ 90%, Non-Condensing |
| Storage Humidity | 5%~95% Non-Condensing |
|
|
