Product Specifications
| Prod Model: |
Legend Series-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Detection Method: |
Spectrophotometer |
| Principle: |
Classic Spectrometer |
| Wavelengths: |
UV Spectrometer |
| Dispersive Element: |
Grating Spectrometer |
| Light Number: |
Monochromator |
Product Description

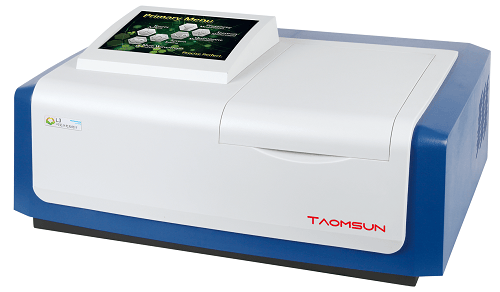

LEGEND Series Spectrophotometer
Split beam optical system Automatic wavelength settings Color touch-screen LCD 7 inch Automatic cuvette holder moving Automatic zero and full scale adjustment Equipped with USB port
Thermal plotter optional Software optional
COMMON FEATURES
Legend series spectrophotometers adopt split beam survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices.
7-inch color touch screen LCD display, cutting-edge user interface, powerful functions, and easy operation. The automated eight-position cuvette holder facilitates the operation under each measurement mode.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as: Full-spectrum scanning
Detailed spectrum scanning
Time-based kinetics determination
GOTO λ
Linear regression Concentration direct reading Peak/Valley detecting
Multi-wavelength measurement
The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data. Therefore, it follows a fast initialization when power on.
The instrument can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.
There is a USB port on the device, and UVwin8 software is optional to order. The device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning, but also expand the memory to save more testing results.
Specification:
| Models | L3 | L3S | L6 | L6S |
| | ------ | Scanning | ------ | Scanning |
| Operation and Display | 8 in.Touch Screen | 8 in.Touch Screen | 8 in.Touch Screen | 8 in.Touch Screen |
| Wavelength Range | 325-1100 nm | 325-1100 nm | 190-1100 nm | 190-1100 nm |
| Wavelength MPE | ±0.5nm | ±0.5nm | ±0.5nm | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm | ≤0.2nm | ≤0.2nm | ≤0.2nm |
| Transmittance MPE | ±0.5%T | ±0.5%T | ±0.3%T | ±0.3%T |
| Transmittance repeatability | ≤0.20%T | ≤0.20%T | ≤0.15%T | ≤0.15%T |
| Transmittance measuring range | 0.0%-200.0%(T) | 0.0%-200.0%(T) | 0.0%-200.0%(T) | 0.0%-200.0%(T) |
| Absorbance measuring range | -0.301-4.000(A) | -0.301-4.000(A) | -0.301-4.000(A) | -0.301-4.000(A) |
| Spectrum Bandwidth | 2nm | 2nm | 2nm | 2nm |
| Stray light | ≤0.05%T | ≤0.05%T | ≤0.05%T | ≤0.03%T |
| Drift | ≤0.0009A/0.5h (500nm,2h warm up) | ≤0.0009A/0.5h (500nm,2h warm up) | ≤0.0009A/0.5h (250nm/500nm,2h warm up) | ≤0.0009A/0.5h (250nm/500nm,2h warm up) |
| Signal Noise | 100%T Noise≤0.20%T 0%t Noise≤0.10%T | 100%T Noise≤0.20%T 0%t Noise≤0.10%T | 100%T Noise≤0.15%T 0%t Noise≤0.10%T | 100%T Noise≤0.15%T 0%t Noise≤0.10%T |
| Baseline Flatness | ------ | ±0.002A | ------ | ±0.002A |
| | (335-1090nm) | (335-1090nm) | (200-1090nm) | (200-1090nm) |
| Overall Dimensions | 550×430×200(mm) | 550×430×200(mm) | 550×430×200(mm) | 550×430×200(mm) |
| G.W. | 20kg | 20kg | 23kg | 23kg |
| Software | Optional | Optional | Optional | Optional |
