Product Specifications
| Prod Model: |
AS-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Deper |
| City: |
Shanghai |
| State: |
China |
| Company: |
Manufacturer |
| Door Weight Bearable: |
150kg by Single Leaf, 120 Kg by Double Leaf |
| Type: |
Sliding |
| Material: |
Aluminum Alloy |
| Position: |
Commercial |
| Open Style: |
Sliding |
| Certification: |
CE |
| Special Function: |
Security |
| Surface Finishing: |
Finished |
| Opening Type: |
With Remote Control |
| Color: |
Optional |
Product Description
Description:The control device of sliding automatic door contains basic function and extensional function, automatic operation/hold-open/closed/half-open to meet customer needs. Control device has multiple interfaces for choosing various connectors such as: safety beam photocell, electric locks, etc. Its drive devices adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output , it can adapt to a large door.
Reliability:Wisdom miniature computer controller
Automatic door mind is totally microcomputer optimized. Internal signal loops adopt no contact control mode, even after longtime working, opening and closing movement is still accurate. Door leaf position setting and adjustment, slide distance setting and adjustment, door leaf opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.
Security:The door open immediately if encounter an obstacle.
When the doors is closing, if it meets a pedestrian or obstacle, the door leaf will reverse automatically, the door will open immediately, it prevents pinching events and door damaged ,also improves the automatic door working life.
Convenience:If the electricity is failed, the door will stop moving. However, there is very little resistance, door leaf can easily be opened by hand.
Good modular design offers very easy installation. Only need to fit all components into the guide rail and connect each part well, it can work after activating the power supply.
Technical Parameters:Door configuration: Single leaf, Double leaves
Limited Weight:
≤1x150kg,
≤2x120kg
Door leaf width: 700-1300mm, 600-1200mm
Power voltage: AC 220V±10%, 50-60Hz
AC 110V±10%, 50-60Hz
Power consumption: < 70W
Opening speed: 200-450mm/s(adjustable)
Closing speed: 200-450mm/s(adjustable)
Hold-open time: 0-9S(adjustable)
Manual force: <40N, <50N
Sensor mode: Various
Sliding noise:
≤55Db
Environment temperature: -20 ~ +50
ºC
Quality Assurance:1. The cutting-edge technology of microcomputer control system can rapidly and accurately detect the door size, weight and set the best operation parameters to make sure the door works well. And the high intelligent microcomputer has memory, correction functions.
2. DC brushless motor has big torque, long service life and high efficiency; helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.
3. Considerate humanized design: It's safe. During the door closing, if someone or something is in the detection range, the special detection function makes the door reverse. In case of someone push or pull the door, the system recognizes it automatically with no disorder; Manual open/close force is small, when power outage, it's easy to open manually.
4. Synchronous belt and roller is made from new materials, wear-resisting and strong, advanced flat-roofed arc transmission makes the drive more stable.
5. Peculiar double-door interlock function, suitable for constant temperature, humidity contour requirements places.
6. Half-open function can save energy consumption in the air conditioning environment.
7. Multiple access control modes for users' choice, the mainframe configures with the central computer work as an integrated systems for access control, attendance, safety monitoring, etc.
8. This drive system is equipped with safe beam interface to satisfy customer's higher safety requirement.
9. Idle pulley is equipped with belt tension regulator. It's easy to adjust the door height and level by adjusting the roller hangers.
10. Perfect service system, high quality after-sale service.

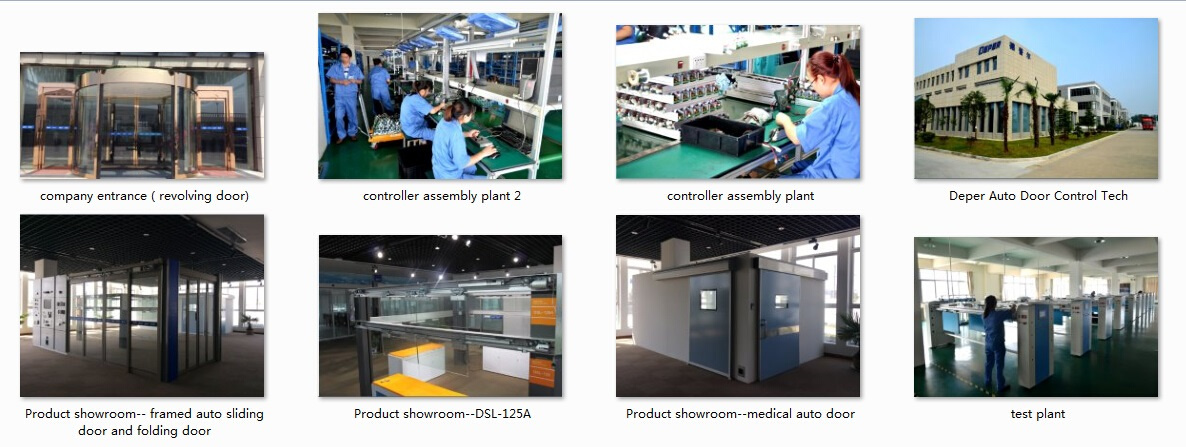

Factory Pictures
Certicates
DEPER Automatic Door is a company integrating the research and development, design, manufacture, sales, installation and service of integrated professional automatic doors.
Products include Sliding Auto-Doors, Swing Auto-Doors, Auto-Revolving Doors, Hermetic Auto-Doors, Cured Sliding Auto-Doors and Telescopic Door and Folding Auto-Doors.
DEPER doors are widely applied and efficiently operated in office buildings, public buildings, hotels and restaurants, homes, hospitals, banks, supermarkets, airports and railway stations and factories in Asia, Europe, Australia, America and Africa.
DEPER are adhering to the spirit of "honest, truthful, fair and innovative". With new management concept and quick and considerate service, we provide users with products with first-class quality and perfect appearance. We also expect to cooperate sincerely with friends from all circles on the equal and mutually beneficial basis.
DEPER expects to share scientific and technological achievements with you.
DEPER from now on is the PRODUCTION BASES OF AUTOMATIC DOORS in China! !
DEPER welcome you to join us!
